Product Details:
|
| Usage: | Roof | Material: | Painted Steel |
|---|---|---|---|
| Type: | Cold Roll Forming | Thickness: | 0.3-0.6mm |
| Warranty: | 1 Year | Certificate: | ISO CE |
| High Light: | roll form equipment,metal forming machines |
||

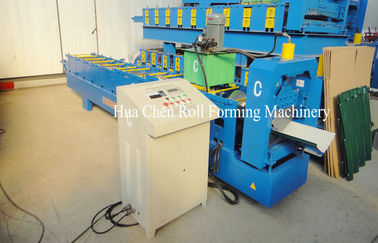

profile roll forming machine ridge cap roll forming machine manufacturers

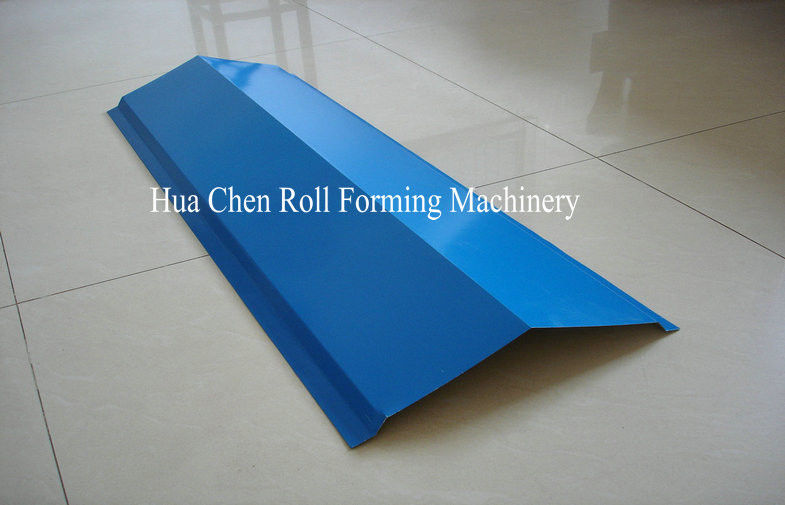

This type of roof sheet has advantage inclouding beautiful, classical appearance and grace taste.
It can be widely used in village, hotel, exhibition, vocation vallage, family construction and outdoor decorate.
SPECIFICATIONS FOR ROLL FORMING MACHINE | |||
Main roll forming machine | Driving Mode | single chain 1 inch | |
Working Speed | m/min | 1-3 | |
roller stations | station | 11 | |
Motor power | Main motor power | kw | 3 |
Hydraulic Station Power | kw | 3 | |
Hydraulic Station Pressure | Mpa | 12 | |
Otehrs | Electrical Control System | PLC brand | Panasonic Japan |
Material Thickness | mm | 0.25-0.8mm | |
Cutting accuracy | mm | ±2 | |
Quick Detail:
1. Suitable to process: Color steel plate
2. Width of the plate: 400mm
3. Rollers: 11 rows
4. Dimensions: 5.4*1.15*1.51m
5. Power: 3+3kw
6. Rolling material: 45# steel(plated chrome on surface)
7. Thickness of the plate:0.3-0.6mm
8. Voltage: 380V 50Hz 3phases
9. Material of the cutting plate: Cr12
10. Hydraulic: 40#
11. Processing precision: Within 1.00mm
12. Control system: PLC control
Description:

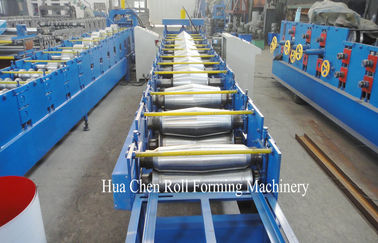

Ridge Cap Roll Forming Machine Main parameter
No. | Main parameter of Ridge Cap Roll Forming Machine | |
1 | Suitable to process | Color steel plate |
2 | Width of the plate | 400mm |
3 | Rollers | 11rows |
4 | Dimensions | 5300*1150*1510mm |
5 | Power | 3+3kw |
6 | Rolling material | 45# steel(plated chrome on surface) |
6 | Thickness of the plate | 0.3-0.6mm |
7 | Productivity | 8-10m/min |
8 | Diameter of the roller | Φ66 mm |
9 | Voltage | 380V 50Hz 3phases |
10 | Material of the cutting plate | Cr12 |
11 | Hydraulic | 40# |
12 | Processing precision | Within 1.00mm |
13 | Control system | PLC control |

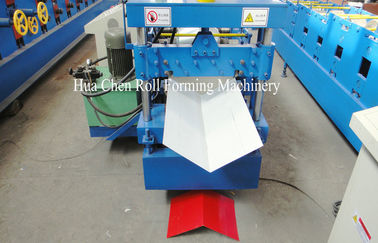

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-press form-cutting
1)We can promise the tolerance to be 0.8mm due to 18 sets CNC machines on site. All the rollers and shafts are solid.
2)We have 16 engineers with more than 10 years experience to offer the most popular solutions.
3)22 installation engineers can go to your site within 7 days.
4)12 months maintenance and whole life technical support.
5)We cooperate with Maersk,APL,CMA,EMC,MSC, and PIL etc, 32 big shipping companies.
Application
This product is widely used in many kinds of industrial factory, civilian buildings, and Roof board for attached part product. It has advantage of pretty appearance, durable using and so on.
Competitive Advantage
1. save space
2. easy install
3. perfect service
4. excellent quality
5. save freight
