Rack Beam C Channel Roll Forming Machine 8-12m / Min Metal Forming Equipment

Customer Reviews
Machine easy to use. The boss is very nice.

—— Mr.Angolon From Europe

This is a good manufacturer, a good English communicater, and I like your machines. It is good quality, and pretty!

—— Mr.Mark From Africa

Nice supplier! I like your swift delivery and quick production cycle, will keep in touch with you guys.

—— Mr.Jack From America

I'm Online Chat Now

Rack Beam C Channel Roll Forming Machine 8-12m / Min Metal Forming Equipment

Rack Beam C Channel Roll Forming Machine 8-12m / Min Metal Forming Equipment
Rack Beam C Channel Roll Forming Machine 8-12m / Min Metal Forming Equipment Rack Beam C Channel Roll Forming Machine 8-12m / Min Metal Forming Equipment Rack Beam C Channel Roll Forming Machine 8-12m / Min Metal Forming Equipment Rack Beam C Channel Roll Forming Machine 8-12m / Min Metal Forming Equipment Rack Beam C Channel Roll Forming Machine 8-12m / Min Metal Forming Equipment

Large Image :  Rack Beam C Channel Roll Forming Machine 8-12m / Min Metal Forming Equipment

Product Details:
Place of Origin: Botou Hebei China
Brand Name: HC
Certification: ISO
Model Number: HC80-300
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month

Rack Beam C Channel Roll Forming Machine 8-12m / Min Metal Forming Equipment

Description
High Light:

purlin roll forming machine

,

rolling forming machine

C Channel Roll Forming Machine Application

Our C Channel Roll Forming Machine can produce various of steel roof and wall panel, it is a new building materials, the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre, etc. It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.

SPECIFICATIONS FOR C Channel Roll Forming Machine

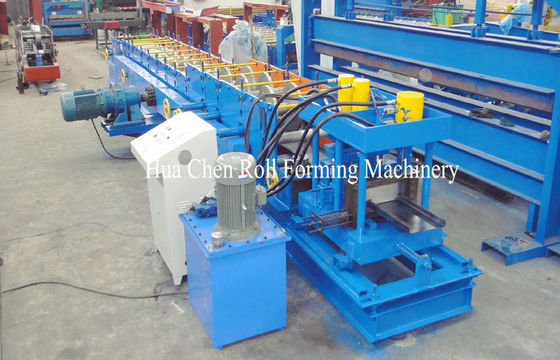

Main Roll Forming Machine
Roller station 13 rows
Material of roller High grade 45# forged steel plated with hard chrome plating
Material of cutter Cr12 mould steel with quenched treatment

Material
Type PPGI GI AL
Material width customized
Material thickness 1-3mm

Others
Speed 10m/min
PLC system EURA or customized
Weight 6.5T


Rack Beam C Channel Roll Forming Machine 8-12m / Min Metal Forming Equipment 0
C Channel Roll Forming Machine Features

We do high standard roll forming machine for export about 10 years.
We have mature foreign trade team,senior engineers, experienced workers to make you satisfied.
We have machines at more than 90 cuntries and regions,and keep good business relationship.
we offer one year free warranty and free service for whole life of any machine.

Certifications
Rack Beam C Channel Roll Forming Machine 8-12m / Min Metal Forming Equipment 1Rack Beam C Channel Roll Forming Machine 8-12m / Min Metal Forming Equipment 2Rack Beam C Channel Roll Forming Machine 8-12m / Min Metal Forming Equipment 3

C Channel Roll Forming Machine Parts

Detailed Images

Rack Beam C Channel Roll Forming Machine 8-12m / Min Metal Forming Equipment 4 Name: Rollers
In order to get high quality product, our machine adopts welded steel frame structure, AC frequency conversion motor reducer drive, chain transmission, roller surfaces polishing, hard plating, heat treatment and chrome coating.
Roller chrome coated thickness: 0.05 mm
Roller material: Forging Steel 45# heat treatment

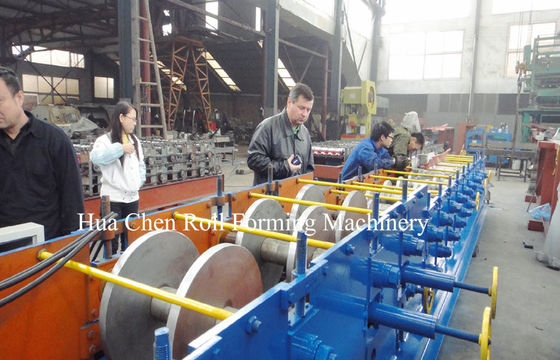

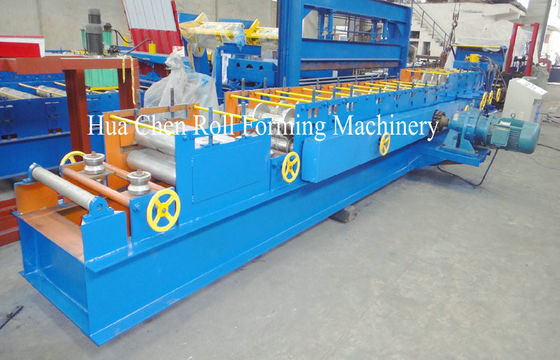

Main Roll Former

We have experieced workers to design the rollers as customized profile drawing , and adopts welded steel frame sturcture, AC frequency conversion motor reducer drive, chain transmission , to get strong machine for good finish products .



Rack Beam C Channel Roll Forming Machine 8-12m / Min Metal Forming Equipment 5
Rack Beam C Channel Roll Forming Machine 8-12m / Min Metal Forming Equipment 6

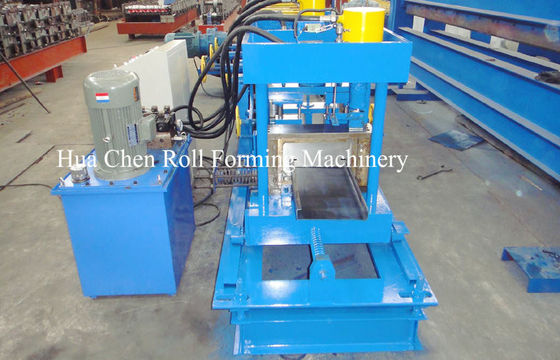

Hydraulic Cutting System

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
With non stop cutting
Material of blades: Cr12,quenching treatment



Our Service



Rack Beam C Channel Roll Forming Machine 8-12m / Min Metal Forming Equipment 7 Rack Beam C Channel Roll Forming Machine 8-12m / Min Metal Forming Equipment 8

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to operate the machine.
* Engineers available to service machinery overseas.


Packing & Delivery

Rack Beam C Channel Roll Forming Machine 8-12m / Min Metal Forming Equipment 9 Size: 8600 (L) * 1550 (W) * 1510 (H)
Weight: 4.5T
1.Main Roll Forming Machine and un-coiler is nude packing (If you need, we can also packed it with water-proof plastic)
2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box.
3.One set of machine needs a 40' container to shipping.


Rack Beam C Channel Roll Forming Machine 8-12m / Min Metal Forming Equipment 10 Rack Beam C Channel Roll Forming Machine 8-12m / Min Metal Forming Equipment 11 Rack Beam C Channel Roll Forming Machine 8-12m / Min Metal Forming Equipment 12
