Product Details:
|
| High Light: | round downspout machine,pipe roll forming machine |
||
|---|---|---|---|

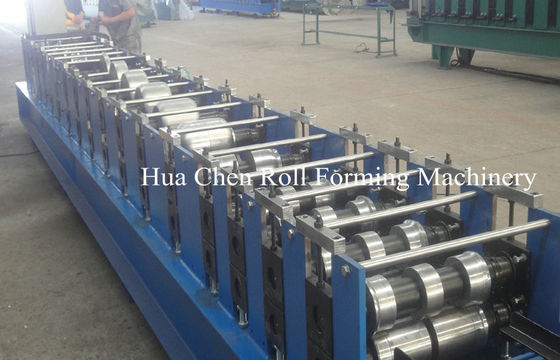

Rainspout Sheet Metal Roll Forming Machine ISO / CE For Tube Bending
Quick Detail:
1. Suitable to process: Color steel plate
2. Width of the plate: 330mm
3. Rollers: 15 rows
4. Dimensions: 7.4*1.15*1.51m
5. Power: 5.5+4kw
6. Rolling material: high grade 45# steel(plated chrome on surface)
7. Thickness of the plate:0.3-0.6 mm
8. Voltage: 380V 50Hz 3phases
9. Material of the cutting plate: Cr12
10. Hydraulic: 40#
11. Processing precision: Within 1.00mm
12. Control system: PLC control
Description:
Downspout Roll Forming Machine Main parameter
|
No. |
Main parameter of Downspout Roll Forming Machine |
|
|
1 |
Suitable to process |
Color steel plate |
|
2 |
Width of the plate |
330mm |
|
3 |
Rollers |
15rows |
|
4 |
Dimensions |
7400*1150*1510mm |
|
5 |
Power |
5.5+4kw |
|
6 |
Rolling material |
high grade 45# steel(plated chrome on surface) |
|
6 |
Thickness of the plate |
0.3-0.6mm |
|
7 |
Productivity |
8-10m/min |
|
8 |
Diameter of the roller |
Φ66mm |
|
9 |
Voltage |
380V 50Hz 3phases |
|
10 |
Material of the cutting plate |
Cr12 |
|
11 |
Hydraulic |
40# |
|
12 |
Processing precision |
Within 1.00mm |
|
13 |
Control system |
PLC control |
Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting
Application
The roll formed product is mor durable than the tranditional ppc pipe, and not easy to aging.
It will make the project more integrate, and help enhancing the image of all project.
Drainpipe bending machine used for bend the roll formed pipe, to connect the drainpipe and the elbowed pipe.
Competitive Advantage
1. ISO/CE certification
2. 20sets/ month
3. high-speed production
4. easy operate, easy maintain
5. One year free warranty
