|Usage:||Roof And Wall||Capacity:||15m/min|

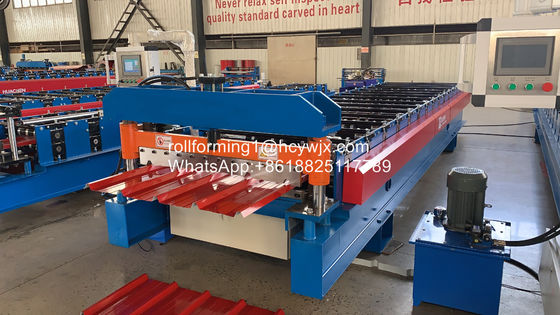

380V Sheet Roll Forming Machine,
Oman roof panel roll forming machine,
8kw Sheet Roll Forming Machine
|1. The Product Description of forming machine|
Roofing Sheet Roll Forming Machine Main parameter
|No.||Main parameter of Roofing Sheet Roll Forming Machine|
|1||Suitable to process||Color steel plate|
|2||Width of the plate||1250mm|
|6||Rolling material||45# steel(plated chrome on surface)|
|7||Thickness of the plate||0.3-0.6mm|
|9||Diameter of the roller||Φ70mm|
|10||Voltage||380V 50Hz 3phases|
|11||Material of the cutting plate||Cr12|
|13||Processing precision||Within 1.00mm|
|14||Control system||PLC control|
Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting
(1). Brief Introduction
The Roof Panels made by our Roll Forming Machine have beautiful appearance and bright color.
They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands,
ancient architectures and modern villas.
(2). Working Flow of Roll Forming Machine
Decoiling the sheet-Sheet guiding-Roll forming-Measure length-Cutting the panel-Panels to the supporter
(3). Technical Detail
|Suitable Material||Q235 or equivalent|
|Material Thickness||0.25-0.8 mm|
|Material Width||914, 1000, 1200, 1220 or 1250, as per the drawing|
|Dimension||About 7.9*1.3*1.1m(L*W*H) , as per the drawing|
|Working Space||About 17.9*2.8m(L*W) , as per the drawing|
You can set the length according to your need.
It is controlled by PLC
which can ensure the accuracy of ±1mm.
Automatically stop and cutting when it comes to the set
B. Components Details
|Roller Material||High grade 45# steel. Hard chrome plating, 0.05mm.|
|Main Frame||350# steel. More stable and no shaking.|
16mm. We use thicker plates to ensure stability
of our products.
|Forming Steps||11-16, according to the drawing.|
|Shaft Material||Φ70 mm, high grade 45# steel.|
Treating process: tempering- finish turning,
high rigidity, hard to deform.
|Cr12, hardness HRC60-62.|
|Treating process: heat treatment- plane abrasion- wire electrode cutting.|
C. Electric Components
|Suitable Power||380V, 50 Hz, 3 phase or according to your need.|
|Screen||5.7 inch touch screen, easy to operate.|
|PLC||Delta DVP 14ES|
well-adapted to various conditions, such as moisture,
DeltaVFD-M. It has the advantage of slowing down before cutting,
to ensure the length accuracy (±1mm,
far better than industrial standard ±3mm).
|Omron, made in Japan.|
|It features with high accuracy and stability.|
1. Can you make the machine according to my design or photo type?
A: Yes. We have an experienced team to work out the most suitable design and production plan
for the machine.
2: How can we be assured that you will deliver us quality machine with spare parts?
A:1. Customers to send the technical people to our factory for checking the quality.
2.We can send the technicians to the buyer`s factory for the installation of the machine.
3.What policy of your garentee?
A: Within the One-YEARS period, we could supply you the replacement parts free of charge
for any damaged parts caused by quality problems after two years,you need to buy by factory cost.
This type of sheet can be widely used in plant, house, storage and simple steel roof and wall. It has advantage of pretty appearance, durable using and so on..
