Product Details:
|
| Roller & Shaft: | 45# Steel With Chrome Treatment | Diameter Of Shaft: | Φ70mm |
|---|---|---|---|
| Cutter Material: | CR12 | Drive Type: | Chain Drive |
| Control System: | PLC Control | Total Power: | 4+4KW |

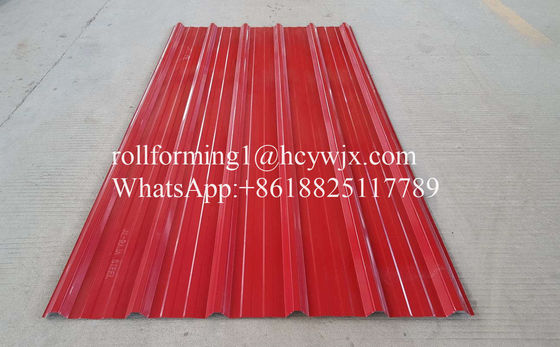

| Highlight: | 8kw cold roll forming machine,corrugated sheet cold forming machine,PLC Cold Roll Forming Machine |
||

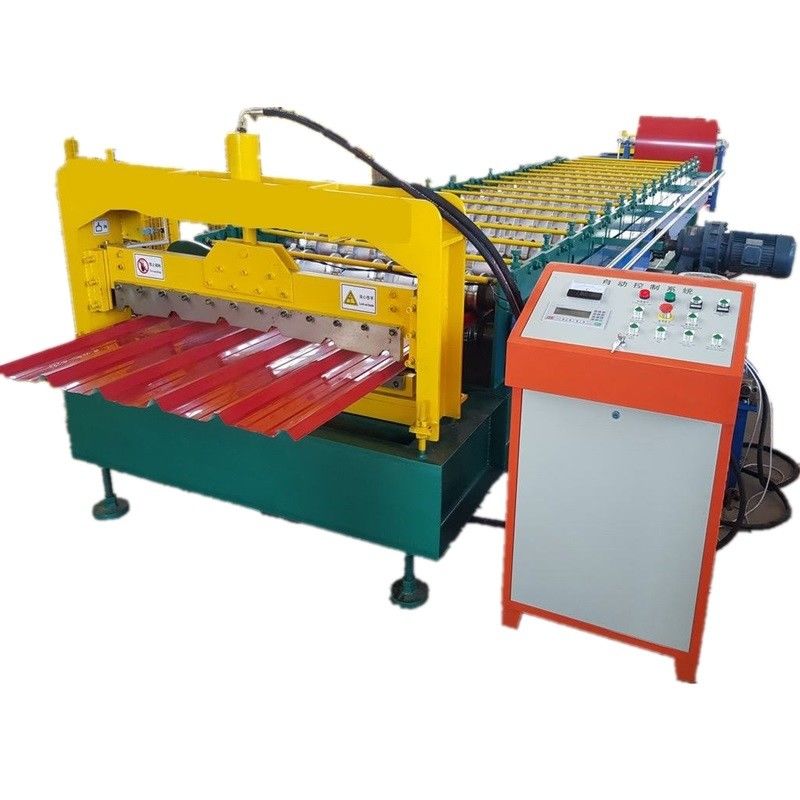

| Custom 13 - 22 Forming Station Metal Roof Tile Roll Forming Machine For Color Steel Sheet | ||
|---|---|---|
| 1 | Suitable material | GI PPGI Aluminum |
| 2 | Width of material | 1250mm or as you required |
| 3 | Thickness of material | 0.3-0.6mm or as your needs |
| 4 | Working speed | 0-30m/min |
| 5 | Main motor power | 4kw with cycloidal reducer |
| 6 | Hydraulic station power | 4kw |
| 7 | Electrical control system | PLC control system |
| 8 | Shaft diameter | 70mm |
| 9 | Roller station | 11 rows |
| 10 | Material of roller | High grade 45# forged steel plated with hard chrome plating |
| 11 | Material of cutting | Cr12 mould steel with quenched treatment |
| 12 | Voltage | 380V 3Phase 50HZ or as the customer's requirements |
| 13 | Dimension | 5200x1500x1510mm |
| 14 | Weight | About 4.5T |
| 15 | Working time | Can be 24 hours |
| 16 | Workers | 1-2 Only |
Please Note: All the parameters can be designed as your requirement.
Feel free to contact us for any further requirements.
