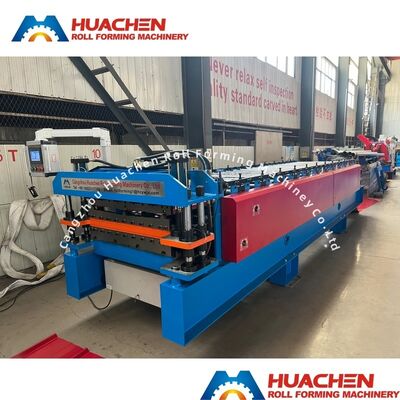

1250MM Width 15m/min Speed PPGI/GI Material Double Layer Roll Forming Machine for Trapezoidal Sheets

1250MM Width 15m/min Speed PPGI/GI Material Double Layer Roll Forming Machine for Trapezoidal Sheets
1250MM Width 15m/min Speed PPGI/GI Material Double Layer Roll Forming Machine for Trapezoidal Sheets
1250MM Width 15m/min Speed PPGI/GI Material Double Layer Roll Forming Machine for Trapezoidal Sheets 1250MM Width 15m/min Speed PPGI/GI Material Double Layer Roll Forming Machine for Trapezoidal Sheets 1250MM Width 15m/min Speed PPGI/GI Material Double Layer Roll Forming Machine for Trapezoidal Sheets 1250MM Width 15m/min Speed PPGI/GI Material Double Layer Roll Forming Machine for Trapezoidal Sheets 1250MM Width 15m/min Speed PPGI/GI Material Double Layer Roll Forming Machine for Trapezoidal Sheets

Large Image :  1250MM Width 15m/min Speed PPGI/GI Material Double Layer Roll Forming Machine for Trapezoidal Sheets

Product Details:
Place of Origin: China
Brand Name: HC
Certification: CE
Model Number: HC30-28-1000
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Packaging Details: Main roll forming machine and decoiler is nude packing, PLC control system and motor pump are packed with water proof paper, spare parts in carton box. One set of machine needs a 40GP container.
Delivery Time: 25-30Days
Payment Terms: L/C,T/T
Supply Ability: 20 Sets/Month
Contact Now

1250MM Width 15m/min Speed PPGI/GI Material Double Layer Roll Forming Machine for Trapezoidal Sheets

Description
Material Type: PPGI/GI Material Thickness: 0.3-0.6mm
Material Width: 1000mm Roller Stations: Upper:11stations ; Down:12stations
Roller & Shaft Material: 45# Steel Quenching And Plating Diameter Of Shaft: φ70mm
Cutter Material: Cr12 Drive Type: Chain Drive
Speed: 15m/min Total Power: 5.5+5.5kw
Voltage: 380V 50Hz 3phases(Customizable)
Highlight:

roll forming equipment

,

cold roll forming machine

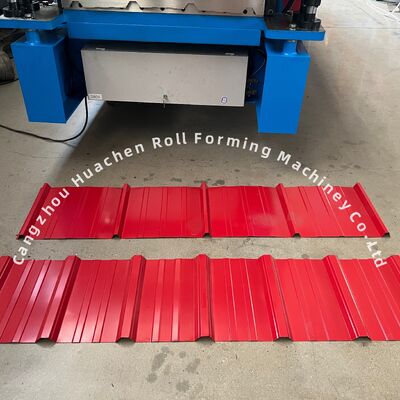

Glazed Tile Trapezoidal Double Sheet Roll Forming Machine Width 1250MM
Main Technical Parameters
Parameter Specification
Material Type PPGI/GI
Thickness 0.3-0.6mm
Width 1000mm
Roller Stations Upper: 11 Stations; Down: 12 Stations
Roller & Shaft Material 45# Steel Quenching and Plating
Diameter of Shaft Φ70mm
Cutter Material CR12
Drive Type Chain Drive
Speed 15m/min
Total Power 5.5+5.5KW
Voltage 380V 50Hz 3Phases (can be customized)
Component & Technical Parameters
5T Manual Decoiler
1250MM Width 15m/min Speed PPGI/GI Material Double Layer Roll Forming Machine for Trapezoidal Sheets 0

This part is used to support coil and make the coil in a rotary way.

  • Bearing capacity: 5T
  • Inner diameter: 470-530mm (adjustable according to demand)
  • Equipped with brake device to prevent machine damage from impact
Feeding Table & Pre-Cutter
1250MM Width 15m/min Speed PPGI/GI Material Double Layer Roll Forming Machine for Trapezoidal Sheets 1

Guides the coil into correct position and directs it to the roll forming part. Includes a hand pull cutting device for convenient pre-cutting when changing color or thickness.

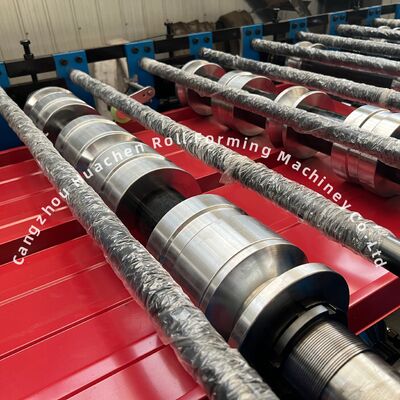

Shaft & Roller
1250MM Width 15m/min Speed PPGI/GI Material Double Layer Roll Forming Machine for Trapezoidal Sheets 2

Material is 45# Steel Quenching and Plating. The processed rollers are smooth, hard and will not rust. Will not leave any scratches on the sheet when working.
Hydraulic Pump Station
1250MM Width 15m/min Speed PPGI/GI Material Double Layer Roll Forming Machine for Trapezoidal Sheets 3

Drives the cutter to start cutting works. The hydraulic tank uses 46# hydraulic oil. Equipped with cooling fan for internal circulation cooling to ensure the oil pump station will not be affected by high oil temperature during working.

Solenoid valve brand: Huade
Touch Screen Control Cabinet
1250MM Width 15m/min Speed PPGI/GI Material Double Layer Roll Forming Machine for Trapezoidal Sheets 4

The control cabinet has two modes: automatic and manual. The unit length of the targeted sheet and quantity can be set in the touchscreen. The system is simple and easy to operate.

Electrical Component Brands:
  • VFD: Delta
  • Circuit breaker: Delixi
  • Contactor: Delixi
  • Relay: Xinling
  • PLC: Delta
  • Transformer: Delixi

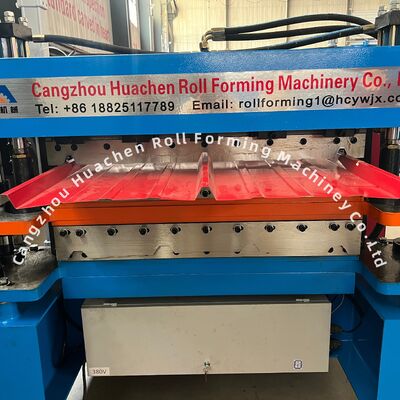

Pressing Section & Cutter
1250MM Width 15m/min Speed PPGI/GI Material Double Layer Roll Forming Machine for Trapezoidal Sheets 5

The material of blade is CR12. With high strength, better hardenability and good wear resistance.
Output Table

This part is used to collect the formed products. The bracket is equipped with rollers to facilitate product forwarding without being scratched.
Spare Parts
Part Quantity
Chains 2 Sets
Solenoid Valve 1 Set
Travel Switch 2 Sets
Open-End Wrenches 2 Sets
Hexagon Wrench 2 Sets
Counter 1 Set
Wrench 2 Sets
Oil Seals 1 Set
Product Images
1250MM Width 15m/min Speed PPGI/GI Material Double Layer Roll Forming Machine for Trapezoidal Sheets 6 1250MM Width 15m/min Speed PPGI/GI Material Double Layer Roll Forming Machine for Trapezoidal Sheets 7
Packaging & Shipping
  • Professional technicians for loading to guarantee goods load into container without any damage
  • Transportation: Machines require one 40 feet container
  • Please provide nearest port name for shipping cost calculation and arrangement
