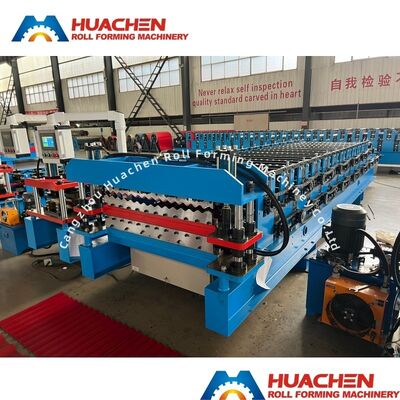

Double Layer Roll Forming Machine with 5.5KW Power 8-10m/min Speed and Panasonic PLC Control for Tile Glazed Panel and Color Steel Roof Sheets

Double Layer Roll Forming Machine with 5.5KW Power 8-10m/min Speed and Panasonic PLC Control for Tile Glazed Panel and Color Steel Roof Sheets
Double Layer Roll Forming Machine with 5.5KW Power 8-10m/min Speed and Panasonic PLC Control for Tile Glazed Panel and Color Steel Roof Sheets
Double Layer Roll Forming Machine with 5.5KW Power 8-10m/min Speed and Panasonic PLC Control for Tile Glazed Panel and Color Steel Roof Sheets Double Layer Roll Forming Machine with 5.5KW Power 8-10m/min Speed and Panasonic PLC Control for Tile Glazed Panel and Color Steel Roof Sheets Double Layer Roll Forming Machine with 5.5KW Power 8-10m/min Speed and Panasonic PLC Control for Tile Glazed Panel and Color Steel Roof Sheets Double Layer Roll Forming Machine with 5.5KW Power 8-10m/min Speed and Panasonic PLC Control for Tile Glazed Panel and Color Steel Roof Sheets

Large Image :  Double Layer Roll Forming Machine with 5.5KW Power 8-10m/min Speed and Panasonic PLC Control for Tile Glazed Panel and Color Steel Roof Sheets

Product Details:
Place of Origin: China
Brand Name: HC
Certification: CE
Model Number: HC18-32-1200-1220
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: Main roll forming machine and decoiler is nude packing, PLC control system and motor pump are packed with water proof paper, spare parts in carton box. One set of machine needs a 40GP container.
Delivery Time: 25-30days
Payment Terms: L/C,T/T
Supply Ability: 20 sets/month
Contact Now

Double Layer Roll Forming Machine with 5.5KW Power 8-10m/min Speed and Panasonic PLC Control for Tile Glazed Panel and Color Steel Roof Sheets

Description
Material Type: PPGI/GI Material Thickness: 0.3-0.6mm
Material Width:: Upper:1200mm; Down:1220mm Roller Stations: Upper:11stations ; Down:12stations
Roller & Shaft Material: 45# Steel Quenching And Plating Diameter Of Shaft: φ70mm
Cutter Material: Cr12 Drive Type: Chain Drive
Speed: 15m/min Total Power: 5.5+5.5kw
Voltage: 380V 50Hz 3phases(Customizable)
Highlight:

sheet metal roll forming machines

,

corrugated roll forming machine

Double Layer Tile Glazed Panel Color Steel Roof Sheet Roll Forming Machine CE
Main Technical Parameters
Parameter Specification
Material Type PPGI/GI
Thickness 0.3-0.6mm
Width Upper:1200mm; Down:1220mm
Roller Stations Upper: 12 Stations; Down: 15 Stations
Roller & Shaft Material 45# Steel Quenching and Plating
Diameter of Shaft Φ70mm
Cutter Material CR12
Drive Type Chain Drive
Speed 15m/min
Total Power 5.5+5.5KW
Voltage 380V 50Hz 3Phases (can be customized)
Component & Technical Parameters
Component Description & Specifications
5T Manual Decoiler
Double Layer Roll Forming Machine with 5.5KW Power 8-10m/min Speed and Panasonic PLC Control for Tile Glazed Panel and Color Steel Roof Sheets 0		 This part is used to support coil and make the coil in a rotary way.
  • Bearing capacity: 5T
  • Inner diameter: 470-530mm (adjustable according to demand)
  • Equipped with brake device to prevent machine damage from impact
Feeding Table & Pre-Cutter
Double Layer Roll Forming Machine with 5.5KW Power 8-10m/min Speed and Panasonic PLC Control for Tile Glazed Panel and Color Steel Roof Sheets 1		 Guides the coil into correct position and directs it to the roll forming part. Includes a hand pull cutting device for convenient pre-cutting when changing color or thickness.
Shaft & Roller
Double Layer Roll Forming Machine with 5.5KW Power 8-10m/min Speed and Panasonic PLC Control for Tile Glazed Panel and Color Steel Roof Sheets 2		 Material is 45# Steel Quenching and Plating. The processed rollers are smooth, hard and will not rust. Will not leave any scratches on the sheet when working.
Hydraulic Pump Station
Double Layer Roll Forming Machine with 5.5KW Power 8-10m/min Speed and Panasonic PLC Control for Tile Glazed Panel and Color Steel Roof Sheets 3		 Drives the cutter to start cutting works. The hydraulic tank uses 46# hydraulic oil. Equipped with cooling fan for internal circulation cooling to ensure the oil pump station will not be affected by high oil temperature during working.
Solenoid valve brand: Huade
Touch Screen Control Cabinet
Double Layer Roll Forming Machine with 5.5KW Power 8-10m/min Speed and Panasonic PLC Control for Tile Glazed Panel and Color Steel Roof Sheets 4		 The control cabinet has two modes: automatic and manual. The unit length of the targeted sheet and quantity can be set in the touchscreen. The system is simple and easy to operate.
Electrical Component Brands:
  • VFD: Delta
  • Circuit breaker: Delixi
  • Contactor: Delixi
  • Relay: Xinling
  • PLC: Delta
  • Transformer: Delixi
Pressing Section & Cutter
Double Layer Roll Forming Machine with 5.5KW Power 8-10m/min Speed and Panasonic PLC Control for Tile Glazed Panel and Color Steel Roof Sheets 5		 The material of blade is CR12. With high strength, better hardenability and good wear resistance.
Output Table This part is used to collect the formed products. The bracket is equipped with rollers to facilitate product forwarding without being scratched.
Spare Parts
Part Quantity
Chains 2 Sets
Solenoid Valve 1 Set
Travel Switch 2 Sets
Open-End Wrenches 2 Sets
Hexagon Wrench 2 Sets
Counter 1 Set
Wrench 2 Sets
Oil Seals 1 Set
Flow Chart
Double Layer Roll Forming Machine with 5.5KW Power 8-10m/min Speed and Panasonic PLC Control for Tile Glazed Panel and Color Steel Roof Sheets 6 Double Layer Roll Forming Machine with 5.5KW Power 8-10m/min Speed and Panasonic PLC Control for Tile Glazed Panel and Color Steel Roof Sheets 7
Frequently Asked Questions
What's your delivery time?
Depending on the type of machine, duration of 1.5 days to 60 days from the date of order.
Do you have after-sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.
Do you sell only standard machines?
No, most of our machines are built according to customers specifications, using top brand components.
What will you do if the machine is broken?
Our machine's warranty period is 12 months. If the broken parts can't repair, we can send the new parts replace the broken parts freely, but you need pay the express cost yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.
Can you be responsible for transport?
Yes, please tell me the destination port or address. We have rich experience in transporting.
How to visit your company?
1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi (4.5 h), then we can pick up you.
Can you make the machine according to my design or photo type?
Yes. We have an experienced team to work out the most suitable design and production plan for the machine.
How can we be assured that you will deliver us quality machine with spare parts?
1. Customers to send the technical people to our factory for checking the quality.
2. We can send the technicians to the buyer's factory for the installation of the machine.
What policy of your guarantee?
Within the One-YEARS period, we could supply you the replacement parts free of charge for any damaged parts caused by quality problems after two years, you need to buy by factory cost.
