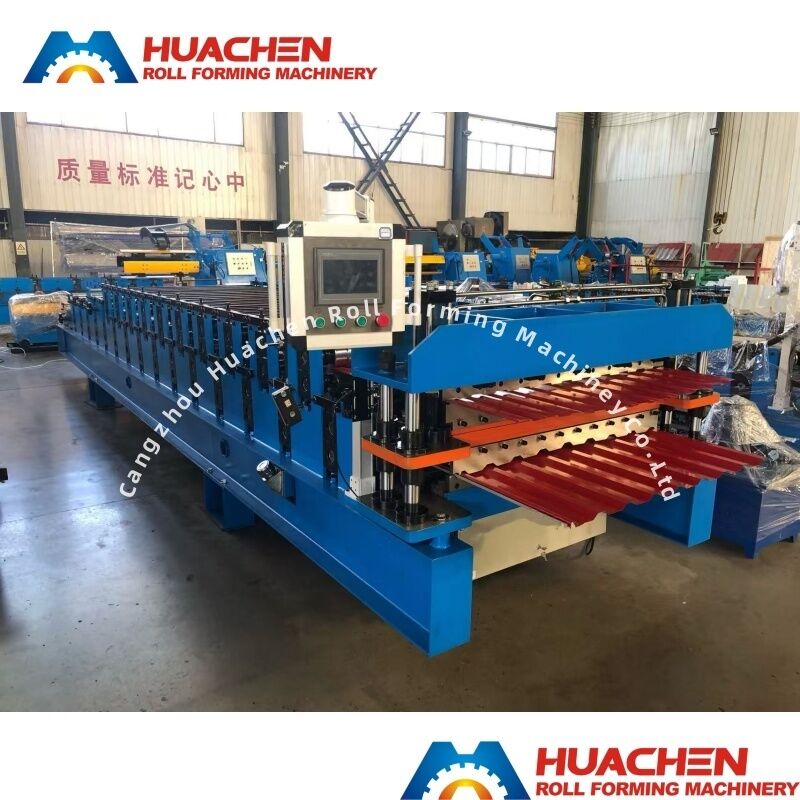

Lightweight Aluminum Roof Double Layer Roll Forming Machine Panasonic PLC Control

Large Image : Lightweight Aluminum Roof Double Layer Roll Forming Machine Panasonic PLC Control

Product Details:

Place of Origin:	China
Brand Name:	HC
Certification:	CE
Model Number:	HC8-18-1250

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Packaging Details:	Main roll forming machine and decoiler is nude packing, PLC control system and motor pump are packed with water proof paper, spare parts in carton box. One set of machine needs a 40GP container.
Delivery Time:	25-30days
Payment Terms:	L/C,T/T
Supply Ability:	20 sets/month

Contact Now

Lightweight Aluminum Roof Double Layer Roll Forming Machine Panasonic PLC Control

Description

Material Type:

PPGI/GI

Material Thickness:

0.3-0.6mm

Material Width:

1250mm

Roller Stations:

Upper: 12 Stations; Down: 15 Stations

Highlight:

sheet metal roll forming machines

corrugated roll forming machine

Product Description

1. The Product Description of Aluminum steel roof roll forming machine

(1). Brief Introduction

The Roof Panels made by our Roll Forming Machine have beautiful appearance and bright color.

They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands,

ancient architectures and modern villas.

(2). Working Flow of Roll Forming Machine

Decoiling the sheet-Sheet guiding-Roll forming-Measure length-Cutting the panel-Panels to the supporter

Lightweight Aluminum Roof Double Layer Roll Forming Machine Panasonic PLC Control 0

(3).Technical Detail

Main Technical Parameters

Parameter	Specification
Material Type	PPGI/GI
Thickness	0.3-0.6mm
Width	1250mm
Roller Stations	Upper: 10 Stations; Down: 15 Stations
Roller & Shaft Material	45# Steel Quenching and Plating
Diameter of Shaft	Φ70mm
Cutter Material	CR12
Drive Type	Chain Drive
Speed	15m/min
Total Power	5.5+5.5KW
Voltage	380V 50Hz 3Phases (can be customized)

Component & Technical Parameters

Component	Description & Specifications
5T Manual Decoiler	This part is used to support coil and make the coil in a rotary way. Bearing capacity: 5T Inner diameter: 470-530mm (adjustable according to demand) Equipped with brake device to prevent machine damage from impact
Feeding Table & Pre-Cutter	Guides the coil into correct position and directs it to the roll forming part. Includes a hand pull cutting device for convenient pre-cutting when changing color or thickness.
Shaft & Roller	Material is 45# Steel Quenching and Plating. The processed rollers are smooth, hard and will not rust. Will not leave any scratches on the sheet when working.
Hydraulic Pump Station	Drives the cutter to start cutting works. The hydraulic tank uses 46# hydraulic oil. Equipped with cooling fan for internal circulation cooling to ensure the oil pump station will not be affected by high oil temperature during working. Solenoid valve brand: Huade
Touch Screen Control Cabinet	The control cabinet has two modes: automatic and manual. The unit length of the targeted sheet and quantity can be set in the touchscreen. The system is simple and easy to operate. Electrical Component Brands: VFD: Delta Circuit breaker: Delixi Contactor: Delixi Relay: Xinling PLC: Delta Transformer: Delixi
Pressing Section & Cutter	The material of blade is CR12. With high strength, better hardenability and good wear resistance.
Output Table	This part is used to collect the formed products. The bracket is equipped with rollers to facilitate product forwarding without being scratched.

Spare Parts

Part	Quantity
Chains	2 Sets
Solenoid Valve	1 Set
Travel Switch	2 Sets
Open-End Wrenches	2 Sets
Hexagon Wrench	2 Sets
Counter	1 Set
Wrench	2 Sets
Oil Seals	1 Set

2. More Pictures of Aluminum steel roof roll forming machine

Lightweight Aluminum Roof Double Layer Roll Forming Machine Panasonic PLC Control 6

1. Professional	*15 years' rich experience!* a.Specialized in roll forming machine since 1998. b.Keeping improving the quality.
2. Low price	*Save your money from every part!* a. Low labor cost; b. Convenient transportation; c. Complete supporting industries.
3. PLC	*Ensuring high accuracy and easy to operate!* Full Automatic: Just input length of the sheets and numbers of the piece you need, then the machine will start to work as your order.
4. OEM / ODM	*Customers’design, color & logo are also accepted!* Our specialized experts and skilled workers keep devoting their hard working to ensure the machine with high quality.
5. One-Years warranty, whole life service	*Keep troubles far away from you!* *Within the One-YEAR period,* we could supply you the replacement parts free of charge for any damaged parts caused by quality problems .
