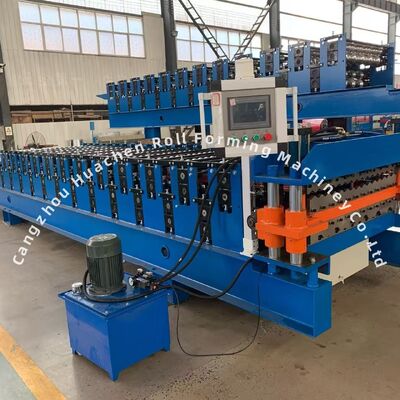

Professional 380V Double Layer Roll Forming Machine with 15m/min Speed for 0.3-0.6mm Wall Panels

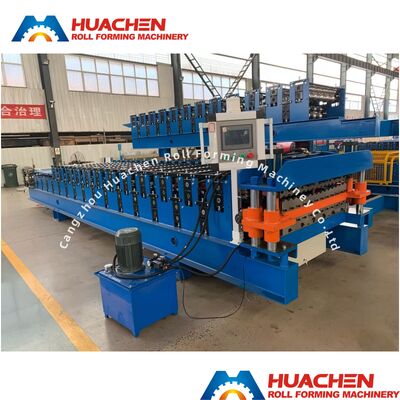

Large Image : Professional 380V Double Layer Roll Forming Machine with 15m/min Speed for 0.3-0.6mm Wall Panels

Product Details:

Place of Origin:	China
Brand Name:	HC
Certification:	CE
Model Number:	HC18-32-1200-1220

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Packaging Details:	Main roll forming machine and decoiler is nude packing, PLC control system and motor pump are packed with water proof paper, spare parts in carton box. One set of machine needs a 40GP container.
Delivery Time:	25-30days
Payment Terms:	L/C,T/T
Supply Ability:	20 sets/month

Contact Now

Professional 380V Double Layer Roll Forming Machine with 15m/min Speed for 0.3-0.6mm Wall Panels

Description

Material Type:	PPGI/GI	Material Thickness:	0.3-0.6mm
Material Width:	Upper:1200mm; Down:1220mm	Roller Stations:	Upper:12stations ; Down:15stations
Roller & Shaft Material:	45# Steel Quenching And Plating	Diameter Of Shaft:	φ70mm
Cutter Material:	Cr12	Drive Type:	Chain Drive
Speed:	15m/min	Total Power:	5.5+5.5kw
Voltage:	380V 50Hz 3phases(Customizable)
Highlight:	metal roll forming machine , sheet metal roll forming machines

Professional Double Layer Roll Forming Machine / 380V Wall Panel Roll Forming Machine

Packaging & Delivery

Packaging Detail

1. Tighten to container with steel wire rope and welded machine with container by angel iron

2. Main forming machine and un-coiler is naked (If you need we can also packed with water-proof plastic)

3. PLC control system and motor pump are packed with water proof paper coverage

Delivery Detail

15-20 days after getting advance payment

Technical Specifications

Parameter	Specification
Material Type	PPGI/GI
Thickness	0.3-0.6mm
Width	Upper: 1200mm; Down: 1220mm
Roller Stations	Upper: 12 Stations; Down: 15 Stations
Roller & Shaft Material	45# Steel Quenching and Plating
Diameter of Shaft	Φ70mm
Cutter Material	CR12
Drive Type	Chain Drive
Speed	15m/min
Total Power	5.5+5.5KW
Voltage	380V 50Hz 3Phases (can be customized)

Component & Technical Parameters

Component	Description
5T Manual Decoiler	This part is used to support coil and make the coil in a rotary way. Bearing capacity: 5T Inner diameter: 470-530mm (adjustable according to demand) Equipped with brake device to prevent machine damage from impact
Feeding Table & Pre-Cutter	Guides the coil into correct position and directs it to the roll forming part. Includes a hand pull cutting device for convenient pre-cutting when changing color or thickness.
Shaft & Roller	Material is 45# Steel Quenching and Plating. The processed rollers are smooth, hard and will not rust. Will not leave any scratches on the sheet when working.
Hydraulic Pump Station	Drives the cutter to start cutting works. The hydraulic tank uses 46# hydraulic oil. Equipped with cooling fan for internal circulation cooling to ensure the oil pump station will not be affected by high oil temperature during working. Solenoid valve brand: Huade
Touch Screen Control Cabinet	The control cabinet has two modes: automatic and manual. The unit length of the targeted sheet and quantity can be set in the touchscreen. The system is simple and easy to operate. Electrical Component Brands: VFD: Delta Circuit breaker: Delixi Contactor: Delixi Relay: Xinling PLC: Delta Transformer: Delixi
Pressing Section & Cutter	The material of blade is CR12. With high strength, better hardenability and good wear resistance.
Output Table	This part is used to collect the formed products. The bracket is equipped with rollers to facilitate product forwarding without being scratched.
