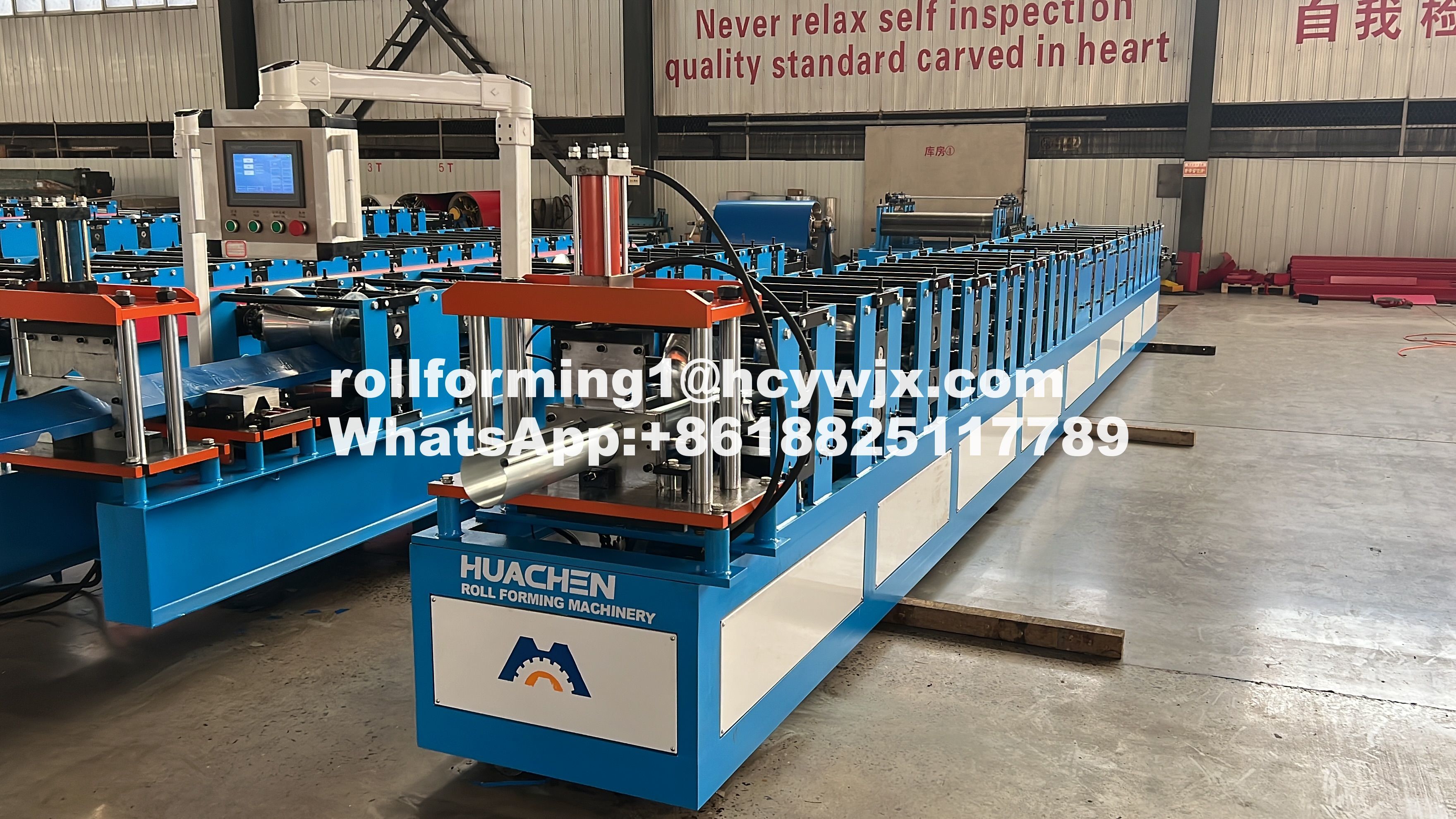

Half Round Rain Gutter Roll Forming Equipment 19 Rows Rollers

Large Image : Half Round Rain Gutter Roll Forming Equipment 19 Rows Rollers

Product Details:

Place of Origin:	Botou Hebei China
Brand Name:	HC
Certification:	ISO
Model Number:	HC333

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Packaging Details:	Main machine is nude,the computer control box is packed by carton box
Delivery Time:	30days
Payment Terms:	30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability:	20 sets/month

Contact Now

Half Round Rain Gutter Roll Forming Equipment 19 Rows Rollers

Description

High Light:

sheet metal rolling machine

metal roll forming machines

Product Description

Rain Gutter Cold Roll Forming Machine

Colored Tile Forming Machine,Cold Roll Forming Machine,Colour Steel Roll Machine

Quick Detail

1.Suitable to process: Color steel plate

2.Width of the plate: 333mm

3.Rollers: 19rows

4.Dimensions: 10.3*1.45*1.51m

5.Power: 4+4kw

6.Thickness of the plate:0.3-0.7mm

7.Diameter of the roller:Φ66mm

8.Weight: About 3.6T

9.Voltage: 380V 50Hz 3phases

10.Hydraulic: 40#

11.Processing precision: Within 1.00mm

12.Control system: PLC control

Rain Gutter Cold Roll Forming Machine

Half Round Rain Gutter Roll Forming Equipment 19 Rows Rollers 0

No		Technical Specification
1	Manual Uncoiler	Usage:It is used to support the steel coil and uncoil it in a turnable way The steel coil is uncoiled by hand. Loading capacity:5T, Inner diameter: 500-508mm

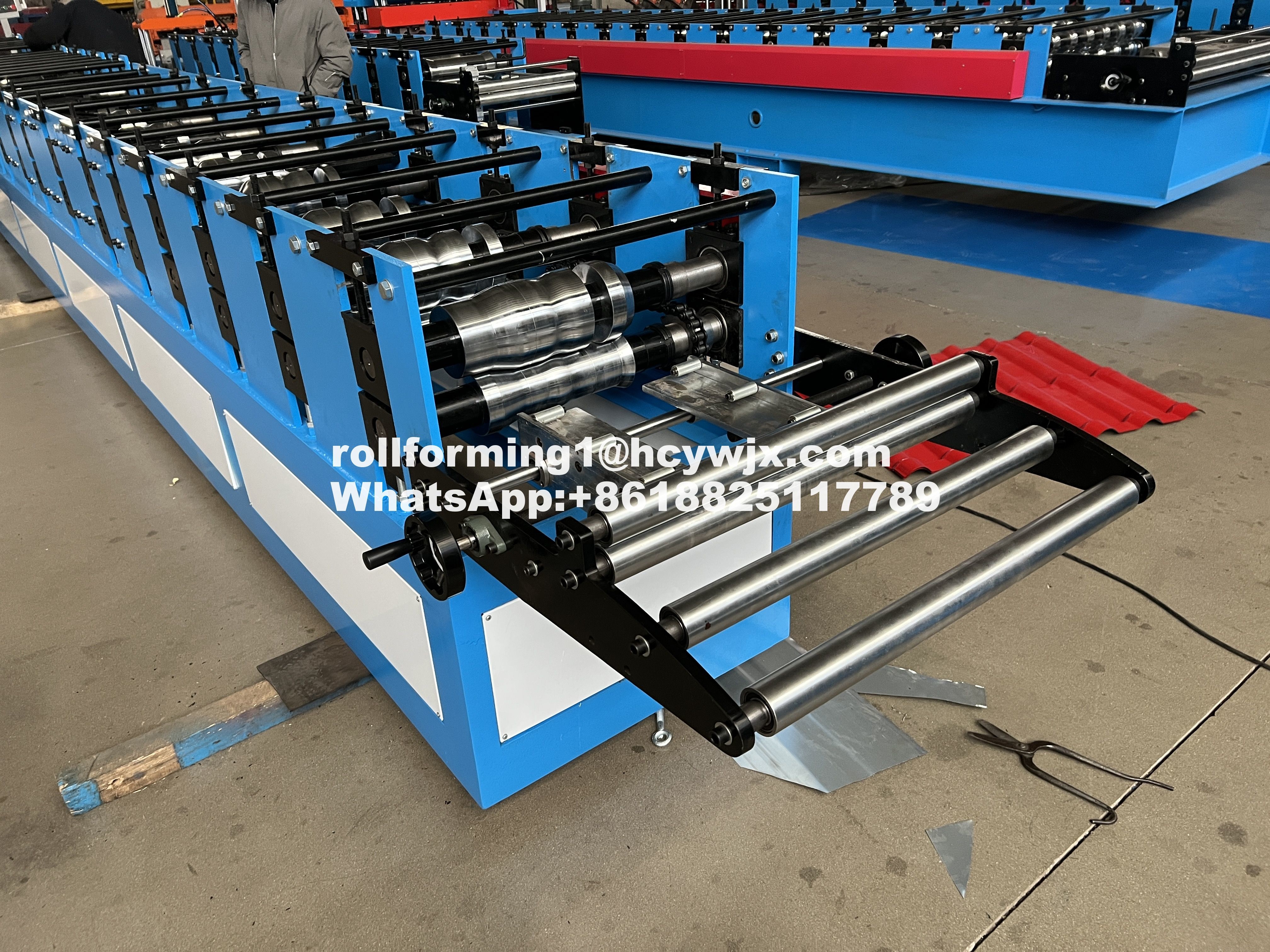

2	Feeding Table	Put the raw material(steel plate) through the beach to manufacture and process It can guarantee that the products are neat Parallel and everything is uniformity Please refer to the equipment regulation to know the function of locate angle iron.

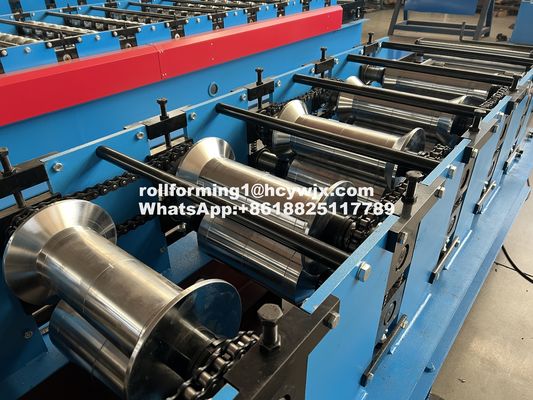

3	Main Roll Forming Machine	Material of rollers:45# steel,roller surfaces polishing, hard plating The polished surface and the heat treatment towards the molds also can keep the molding Plate surface smooth and not easy to be marked when it is being stamped
4	Hydraulic System Computer Control Cabinet	Power:4kw,Hydraulic oil: 40# Hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job. The target piece`s length is adjustable and digit of it can be adjusted Computed mode has two modes: automatic and manual one The system is easy to operate and use PLC:EURA

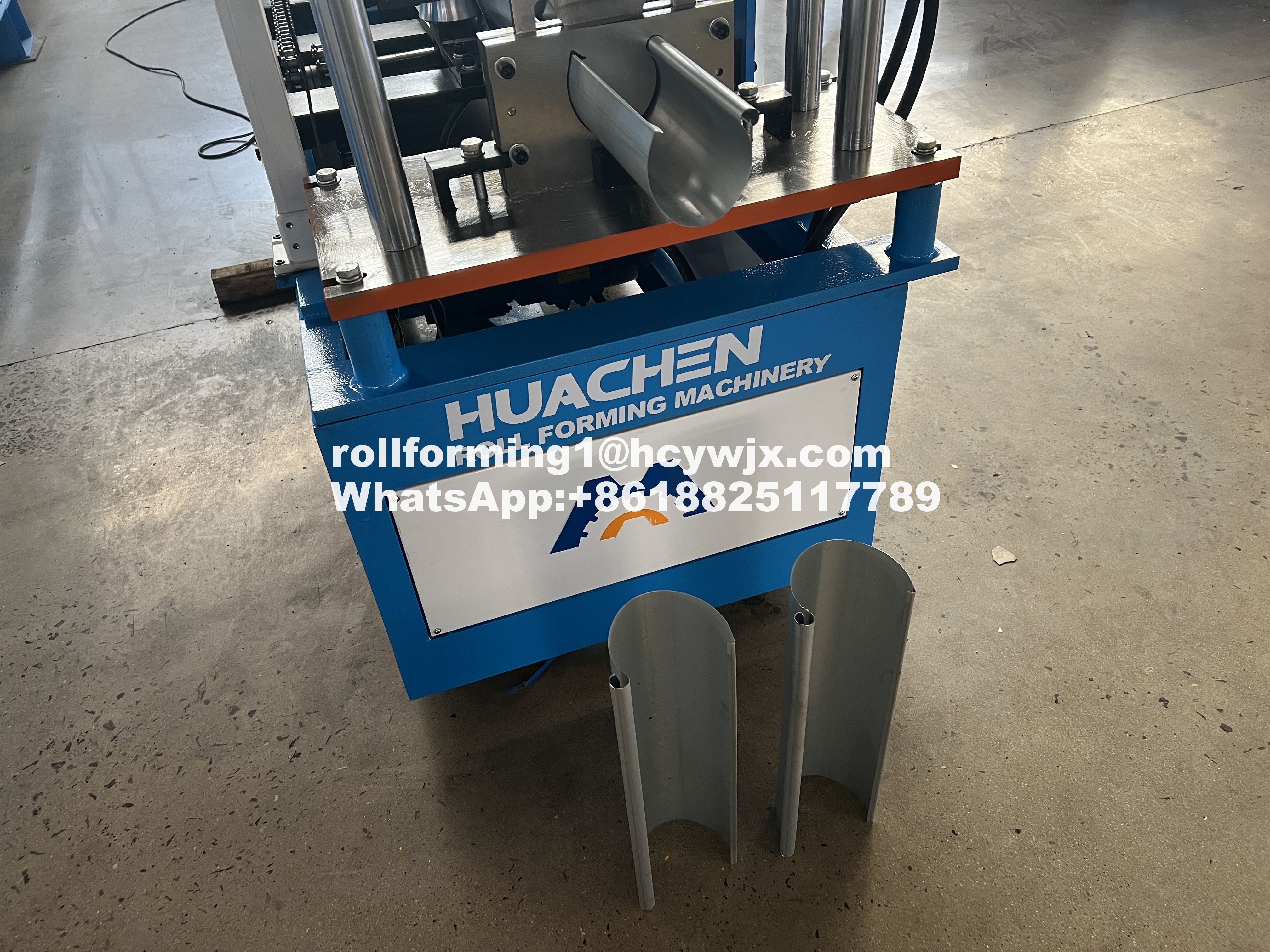

5	Shearing Mechanism	It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products. Material of blades: Cr12,quenching treatment
6	Output Table	It adopts welded steel and supported roller to transmit the products,which is used to collect the finished products.
