|Machine Weight:||4.5T||Rollers:||45# Steel|
|Type:||Roof Sheet Roll Forming Machine||Cutting Blade:||Cr12|
roof tile roll forming machine,
roof panel roll forming machine
1. Do you have overseas engineers?
Yes, we not only provide overseas engineers, but also provide technical training.
2. What`s the machines` production rate?
Between 8-20m/min by control.
3. Do you provide customized?
Sure,we can design the equipment according to the data of the structural section you provide.
We are professional sheet metal forming machine designer and manufacturer.
Double color steel tile machine specification:
1. Number of forming groups: 13 group
2. The machine material: welding comprise of 300 double T-steel
3. The wallboard: processing compose of 20mm steel plate
4. The mold: The mold is made of 45#steel, processed after rough turning, finish turning, finish grinding, hard chrome
plating to ensure that the mold no deformation, glabrous, wearable and accurate.
5. The shaft: The shaft is made of 45#steel, diameter of 62mm, finish turning, finish grinding after heat treatment,
quenching and high temperature tempering.
6. The bearing: Harbin type 6208
7. The roll material: 0.3-0.5mm color steel sheet, galvanized steel sheet, aluminium sheet, expansion material 1000mm,

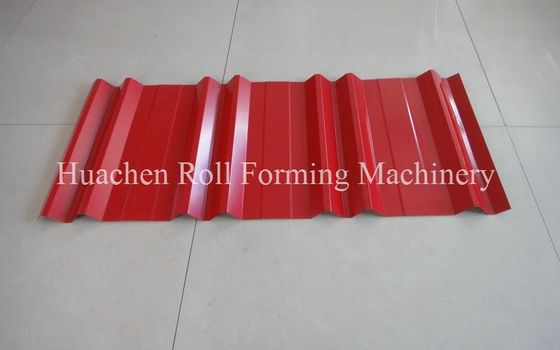

ejection of compact effective area is 840, 900. Model: 840/900 or customized.
8. Motor:4kw * 1sets (380v)
9. Transmission: 1.0 inch chain
10. Discharge rack: 1 set
11. Machine feature: PLC NC frequency electrical boxes, touch screen`s display, the encoder counting,
the length and quantity of the material is controllable, accuracy with in 1.0mm, automatic hydraulic cut.
12. Machine Length: 5.6m * 1.5 m * 1.5 m
13. Machine Weight: 2.8tons
14. Production time: 20 days
15. One year warranty
