Product Details:
|
| Type: | Glazed Tile Roof Sheet | Control System: | PLC Control |
|---|---|---|---|
| Raw Material Width: | 1250mm | Raw Material Thickness: | 0.3-0.6mm |
| Warranty: | 12 Months After Shipping | Voltage: | 380V,50HZ,3phase |
| High Light: | roll forming equipment,cold roll forming machine |
||

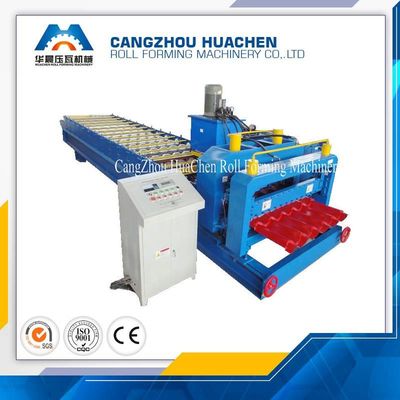

Metal cold roll forming machine for roof use glazed tile roll forming machine
Technique parameters of the processing line
(1). Suitable material to process: colored armor plate with the bending intensity of 235-550MPA;
(2). Thickness of the plate: 0.25-0.8mm;
(3). width of the plate:1250mm
(4). Effective area for use: 36";
(5). Productivity: 3-5m/min;
(6). Rollers: 15 rows;
(7). Diameter of the roller:70mm;
(8). Main motor power: 5.5KW;
(9). Hydraulic system power: 4KW;
(10). Dimensions of major structure: 7500mm*1400mm*1500mm (approximate).
Processing technique and deployment
Processes: Manual uncoiler—Roll forming machine—PLC system—Hydraulic system-Blade—Receiving table
Components of line:
| No. | Name | Unit | Qty | |
| 1 | Manual uncoiler | set | 1 | |
| 2 | Main machine for roll forming | set | 1 | |
| 3 | Control system | set | 1 | |
| 4 | Hydraulic system | set | 1 | |
| 5 | Blade | set | 1 | |
| 6 | Receiving table | set | 2 | |
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our factory.
6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.
8) What should I provide if I`d love to customized my machine?
A: To customize machine, we`d love to know:
1. Profile drawing
2. Raw material: the width(1250mm?), thickness(0.3-0.7mm?), and yield strength of steel coil.
3. Voltage: designed per your requirement
4. Configuration requirement: Hydraulic or manual decoiler/ stacker
Have no idea about them?
We will be glad to recommend machines ----Just let us know your country!
