24 Rollers Steel Roofing Sheet Roll Forming Machine with 45# Steel Quenching and Plating and 12 Month Warranty

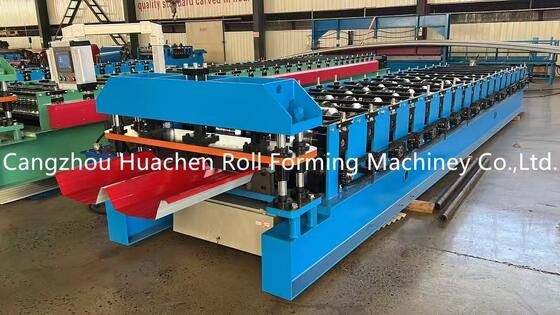

Large Image : 24 Rollers Steel Roofing Sheet Roll Forming Machine with 45# Steel Quenching and Plating and 12 Month Warranty

Product Details:

Place of Origin:	China
Brand Name:	HC
Certification:	CE
Model Number:	HC97-476-952

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Packaging Details:	Main roll forming machine and decoiler is nude packing, PLC control system and motor pump are packed with water proof paper, spare parts in carton box. One set of machine needs a 40GP container.
Delivery Time:	25-30days
Payment Terms:	L/C,T/T
Supply Ability:	20 sets/month

Contact Now

24 Rollers Steel Roofing Sheet Roll Forming Machine with 45# Steel Quenching and Plating and 12 Month Warranty

Description

Marerial Type:	PPGI/GI	Matrerial Thickness:	0.3-0.6mm
Material Width:	1200mm	Roller Stations:	18Stations
Roller & Shaft Material:	45# Steel Quenching And Plating	Diameter Of Shaft:	Φ70mm
Cutter Material:	CR12	Drive Type:	Chain Drive
Speed:	15m/min	Total Power:	5.5+5.5KW
Voltage:	380V 50Hz 3Phases(can Be Customized)
Highlight:	cold roll forming machine , roof panel roll forming machine

24 Rollers Steel Roofing Sheet Roll Forming Machine With 12 Month Warranty

Main Technical Parameters

Material Type PPGI/GI

Thickness 0.3-0.6mm

Width 1200mm

Roller Stations 18 Stations

Roller & Shaft Material 45# Steel Quenching and Plating

Diameter of Shaft Φ70mm

Cutter Material CR12

Drive Type Chain Drive

Speed 15-20m/min

Total Power 5.5+5.5KW

Voltage 380V 50HZ 3 phases (can be customized)

Component & Technical Parameters

5T Manual Decoiler

This part is used to support coil and make the coil in a rotary way. Bearing capacity: 5T. Inner diameter: 470-530mm (adjustable according to demand). In order to avoid damage to the machine by impact when the machine is running, we have installed a brake device for you.

Feeding Table & Pre-Cutter

Guide the coil come into the correct position and going to the roll forming part. Also including a Hand Pull Cutting Device, it is convenient to pre-cut the coil when want to changing color or thickness.

Shaft & Roller

Material is 45# Steel Quenching and Plating. The processed rollers are smooth, hard and will not rust. Will not leave any scratches on the sheet when working.

Hydraulic Pump Station

The purpose of this pump station is to drive the cutter to start cutting works. The hydraulic tank use 46# hydraulic oil. Equipped with a cooling fan which can internal circulation cooling, to ensure the oil pump station will not be affected by high oil temperature during working. Solenoid valve brand: Huade.

Touch Screen Control Cabinet

The control cabinet has two modes, automatic and manual modes. The unit length of the targeted sheet and quantity can be set in the touchscreen. The system is simple and easy to operate. Electrical Component Brands: VFD: Delta, Circuit breaker: Delixi, Contactor: Delixi, Relay: Xinling, PLC: Delta, Transformer: Delixi.

Pressing Section & Cutter
