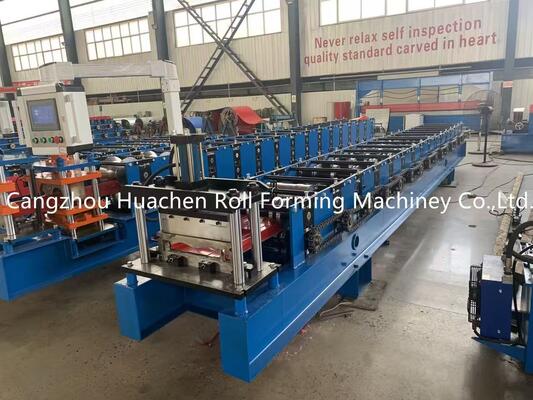

High Speed 15-20m/min Roofing Sheet Roll Forming Machine with 16 Stations and Chain Drive

High Speed 15-20m/min Roofing Sheet Roll Forming Machine with 16 Stations and Chain Drive
High Speed 15-20m/min Roofing Sheet Roll Forming Machine with 16 Stations and Chain Drive
High Speed 15-20m/min Roofing Sheet Roll Forming Machine with 16 Stations and Chain Drive High Speed 15-20m/min Roofing Sheet Roll Forming Machine with 16 Stations and Chain Drive

Large Image :  High Speed 15-20m/min Roofing Sheet Roll Forming Machine with 16 Stations and Chain Drive

Product Details:
Place of Origin: China
Brand Name: HC
Certification: CE
Model Number: HC41-360-560
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: Main roll forming machine and decoiler is nude packing, PLC control system and motor pump are packed with water proof paper, spare parts in carton box. One set of machine needs a 40GP container.
Delivery Time: 25-30days
Payment Terms: L/C,T/T
Supply Ability: 20 sets/month
Contact Now

High Speed 15-20m/min Roofing Sheet Roll Forming Machine with 16 Stations and Chain Drive

Description
Material Type: PPGI/GI Material Thickness: 0.3-0.6mm
Material Width: 560mm Roller Stations: 16Stations
Roller & Shaft Material: 45# Steel Quenching And Plating Diameter Of Shaft: Φ70mm
Cutter Material: CR12 Drive Type: Chain Drive
Speed: 15-20m/min Total Power: 5.5+5.5KW
Voltage: 380V 50Hz 3Phases(can Be Customized)
Highlight:

roof tile roll forming machine

,

roof panel roll forming machine

Blue Color Roofing Sheets Manufacturing Machine, Roll Forming Line High Speed
This roofing tile machine is a specialized roll forming machine for steel sheet cold-form industries. It can continuously form steel sheet into roofing tiles according to customer requirements and automatically cut to length. This equipment offers high forming speed, low noise, stable transmission, easy operation, and excellent appearance.
Main Technical Parameters
Parameter Specification
Material Type PPGI/GI
Thickness 0.3-0.6mm
Width 560mm
Roller Stations 16 Stations
Roller & Shaft Material 45# Steel Quenching and Plating
Diameter of Shaft Φ70mm
Cutter Material CR12
Drive Type Chain Drive
Speed 15-20m/min
Total Power 5.5+5.5KW
Voltage 380V 50Hz 3Phases (can be customized)
Component & Technical Parameters
5T Manual Decoiler
High Speed 15-20m/min Roofing Sheet Roll Forming Machine with 16 Stations and Chain Drive 0 This component supports the coil and enables rotary movement. Bearing capacity: 5T. Inner diameter: 470-530mm (adjustable according to demand). Includes brake device to prevent machine damage from impact during operation.
Feeding Table & Pre-Cutter
High Speed 15-20m/min Roofing Sheet Roll Forming Machine with 16 Stations and Chain Drive 1 Guides the coil into correct position for roll forming. Includes hand pull cutting device for convenient pre-cutting when changing color or thickness.
Shaft & Roller
High Speed 15-20m/min Roofing Sheet Roll Forming Machine with 16 Stations and Chain Drive 2 Material is 45# Steel Quenching and Plating. Processed rollers are smooth, hard, and rust-resistant. Will not leave scratches on sheets during operation.
Hydraulic Pump Station
High Speed 15-20m/min Roofing Sheet Roll Forming Machine with 16 Stations and Chain Drive 3 Drives the cutter for cutting operations. Hydraulic tank uses 46# hydraulic oil. Equipped with cooling fan for internal circulation cooling to prevent high oil temperature issues. Solenoid valve brand: Huade.
Touch Screen Control Cabinet
High Speed 15-20m/min Roofing Sheet Roll Forming Machine with 16 Stations and Chain Drive 4 Features automatic and manual modes. Allows setting of unit length and quantity on touchscreen. Simple and easy to operate. Electrical components: VFD: Delta, Circuit breaker: Delixi, Contactor: Delixi, Relay: Xinling, PLC: Delta, Transformer: Delixi.
Pressing Section & Cutter
High Speed 15-20m/min Roofing Sheet Roll Forming Machine with 16 Stations and Chain Drive 5 Blade material is CR12 with high strength, excellent hardenability, and superior wear resistance.
Output Table
Collects formed products. Bracket includes rollers to facilitate product forwarding without scratching.
Spare Parts
  • Chains: 2 Sets
  • Solenoid Valve: 1 Set
  • Travel Switch: 2 Sets
  • Open-End Wrenches: 2 Sets
  • Hexagon Wrench: 2 Sets
  • Counter: 1 Set
  • Wrench: 2 Sets
  • Oil Seals: 1 Set
High Speed 15-20m/min Roofing Sheet Roll Forming Machine with 16 Stations and Chain Drive 6 High Speed 15-20m/min Roofing Sheet Roll Forming Machine with 16 Stations and Chain Drive 7 High Speed 15-20m/min Roofing Sheet Roll Forming Machine with 16 Stations and Chain Drive 8
Our Services

We provide replacement of damaged or broken parts free of charge during the first year of machine operation. Warranty does not cover misuse by buyer or man-made operational problems.

Frequently Asked Questions
Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and continuously improve our machines accordingly.
