Product Details:
|
| Color: | Blue | Type: | Glazed Tile Roof Sheet |
|---|---|---|---|
| Control System: | PLC Control | Raw Material Thickness: | 0.3-0.6mm |
| Workers: | 100 | ||
| Highlight: | roll forming equipment,roof tile roll forming machine |
||

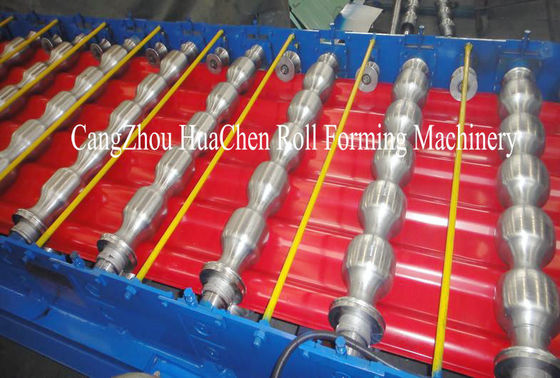

Steel Profile / Tile Roof / Glazed Tile Roll Forming Machine With Plc Control System
 |
Huachen is FACTORY which manufacture machine and also do export. |
| We have exported over 70 countries, and familiar with your require. | |
| Suitable to GI, PPGI, aluminum and Zinc coil. | |
| Free 1 year gurantee, and life long service. |
Intruduction:
Machine consisit of uncoiler and its base, coil sheet guilding equipment, roll forming system, cutting system, hydraulic station, controling system and supporter table.
Application:
This kind of machine make two types of tile together perfectly, it has reasonable structure, beautiful appearance, with advantage of saving space, easy operate and especially welcomed by the customer with limit area or site
1). The Main Parameter For glazed tile roll forming machine
| No. | main parameter of glazed tile roll forming machine | |
| 1 | Suitable to process | Color steel plate |
| 2 | Width of the plate | 1000mm |
| 3 | Roller | 12 rows |
| 4 | Dimensions | 6600*1550*1910mm |
| 5 | Power | 4+4kw |
| 6 | Thickness of the plate | 0.3-0.6mm |
| 7 | Productivity | 2m/min |
| 8 | Material of the cutting blade | Cr12 |
| 9 | Diameter of the roller | Φ70mm |
| 10 | Weight | About 3.5T |
| 11 | Voltage | 380V 50Hz 3phases |
| 14 | Control system |
PLC control |
2). Check If glazed tile roll forming machine Profile Suitable to You.
3). This is The Whole Line of The Equipment.
Manual Uncoiler—Glazed tile roll forming machine—Computer Control System—Hydraulic Control System— Pressing—Form Cutter
4). Components and Technical Specification
1. Manual Uncoiler
Usage:It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand. Loading capacity:5T
Inner diameter: 500-508mm
2. Feeding Table
Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.
3. Hydraulic System
Power:4kw,Hydraulic oil: 40#
hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.
4.Computer Control Cabinet
The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use.
PLC:EURA
5.Cutting System:
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
Material of blades: Cr12,quenching treatment
6.Main Roll Forming Machine:
Material of rollers:45# steel,roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
7.Output Table
