Product Details:
|
| High Light: | sheet metal rolling equipment,roof sheet making machine |
||
|---|---|---|---|
Blue 3 Phase Roofing Sheet Wall Panel Roll Forming Machine Plc Control System
1. Technical Parameter
Roll Forming Machine: RF-RP
Rolling Speed : 10-12m/min(cutting time is not include)
Steel sheet Thickness: 0.25-0.8mm color painted sheets
Control System: PLC:
Roller Stations: 18 stations
Roller Material : 45# forge steel, coated with chrome
Shaft Material and DIA: ￠75mm,material is 45# forge steel
Main Motor Power: 7.5kw
Hydraulic Pressure: 12Mpa
Material Of The Stations: Wall plate
Tolerance: +1.5mm
Power supplier:220V, 60HZ,3 phase
Way Of Drive:1.2 inch single chain
Color Of The Machine :blue
The size of the forming machine:8000*1500*1000mm
Machine weight: about 6 tons
2. Working Flow
Uncoiling - Infeed guiding - Roll forming- Cut to Length-Out put table
3. Machine Components
| 5 ton passive decoiler | 1 set |
| Main roll forming machine | 1 set |
| PLC control box | 1 unit |
| Hydraulic station | 1 unit |
| Out table | 2 unit |

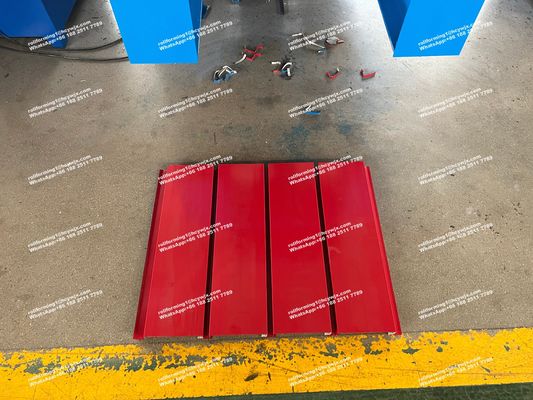

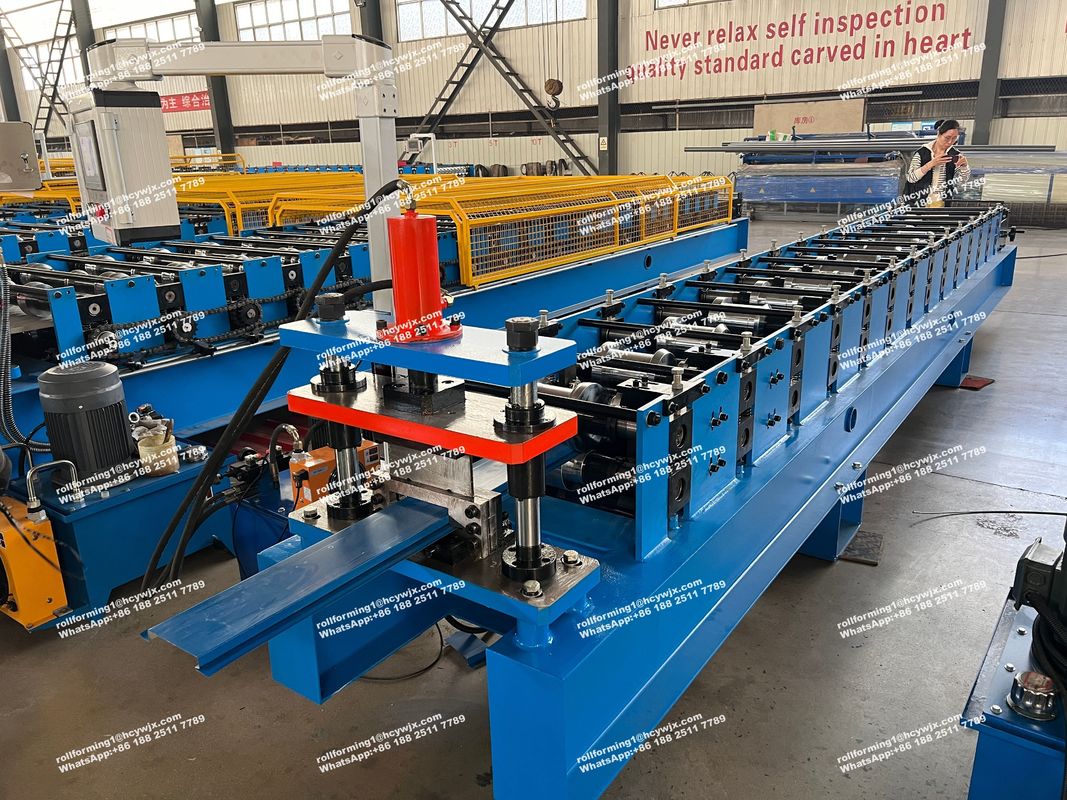

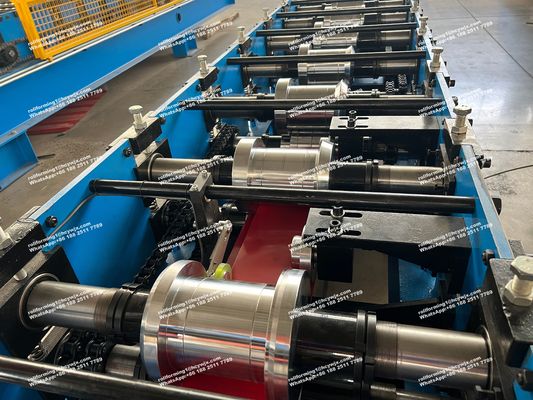

4 . Machine Photo
Advantage:
1. We use Automatic control software to manage productive information.
2. Thanks to the High integrated network, the whole automatic control system has an improvement in automaticity.
3. High performance in operation, maintenance, and debugging. Easy to load and unload.
4. First in quality
5. First in time
6. First in price
7. First in services
