Sheet Metal Forming Machine

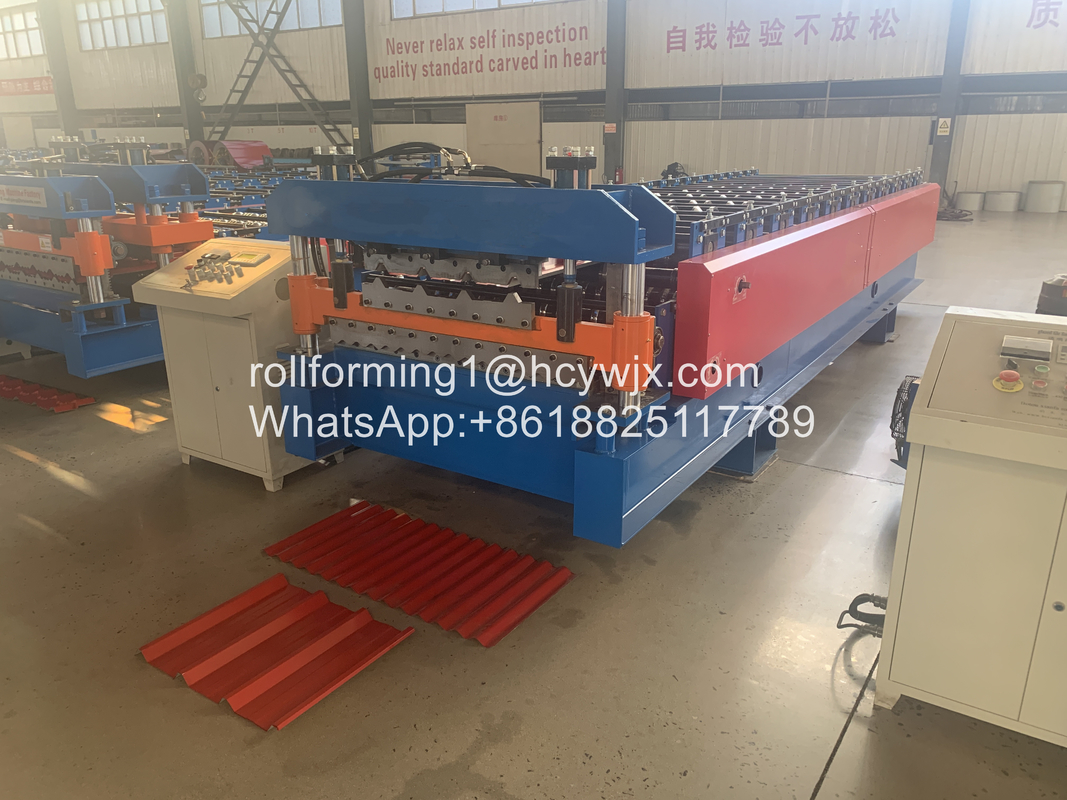

Large Image : Sheet Metal Forming Machine

Product Details:

Place of Origin:	Botou Hebei China
Brand Name:	HC
Certification:	ISO
Model Number:	HC30/18

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Packaging Details:	Main machine is nude,the computer control box is packed by carton box
Delivery Time:	30days
Payment Terms:	30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability:	20 sets/month

Contact Now

Sheet Metal Forming Machine

Description

Transmission:	Gear Box Or Chain Driving	Shaft Dia:	70
Market:	Germany	Roller:	45# Steel
Capacity:	15m/min
Highlight:	metal roll forming machine , sheet metal roll forming machines

1. Specification of the material

1	Suitable Material	PI/ PPGI
2	Width of the raw material	1200mm
3	Thickness	0.3-0.8mm

2. Machine Detailed Parameters

1	Roll Forming Machine	HC30/18
2	Machine structure	Guide pillar structure
3	Total power	Motor power-4kw Hydraulic power-4kw
4	Roller stations	Up layer- 11 stations Down Layer-12 stations
5	Productivity	0-15m/min
6	Drive system	By chain
7	Diameter of shaft	￠70mm solid shaft
8	Voltage	380V 50Hz 3phases (Customized)
9	Color Of The Machine	Bule and yellow
10	Deliver time	50 days
11	Terms Of Payment	30%T/T 70% pay before shipment

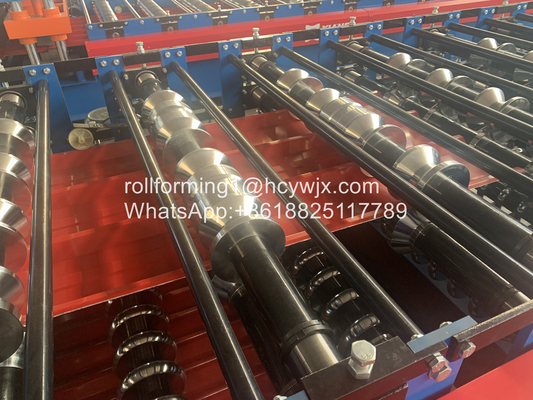

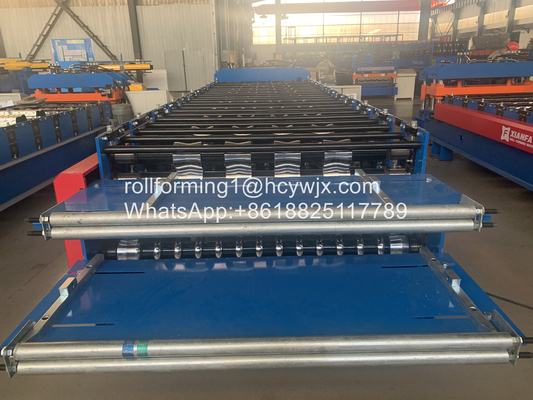

3. Reference pictures

Sheet Metal Forming Machine 0

4. The Chart of Process Flow

Hydraulic Decoiler—Roll Forming—Cutting—Auto Stacker

Auto Stacker Double Layer Roll Forming Machine with Hydraulic Decoiler 15m/min

5. Specification of Components

(1) 5T Hydraulic Un-coiler

Width of feeding: 1250mm
Capability: 5 Ton
Inter diameter: 470-520mm
Maximal out diameter: 1500mm
Main motor power: 5.5KW AC motor
Hydraulic power: 4kw

(2) Main Roll Forming Machine

Roller material:ASTM1045 chrome plated surface with chrome
Shaft diameter: ￠70mm material: SAE1045 with quenching and tempering
Main frame by 350H beam welding
Machine structure: guide pillar

(3) Hydraulic Cutting System

Cutting after forming: Cut the sheet after roll forming to required length
Material of blade:Cr12, 58-62 HRC hardness
Cutting power by hydraulic,5.5KW
Working pressure: 12Mpa adjustable
Length measuring: Automatic encoder length measuring
Tolerance of length: +/- 1.5mm for each piece end product

(4) Computer Control Cabinet

Programmable setting of profile length and quantity
Operating system language: English and Chinese
Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
