Product Details:
|
Power(W): | 4+5.5kw | Warranty: | 18 Month |
---|---|---|---|
Control System: | PLC Control | Cutting Method: | Hydraulic Cut |
Working Speed: | 2-10m/min | Per Month: | 30 Sets |
Highlight: | sheet metal roll forming machines,corrugated roll forming machine |

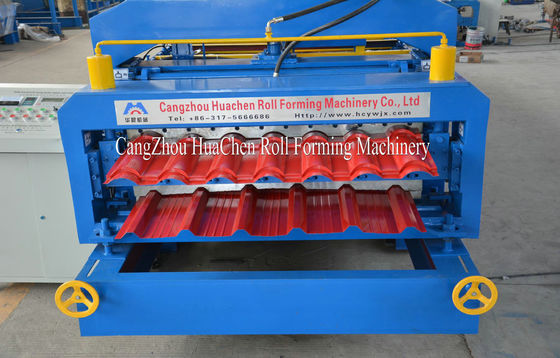

Corrugated Iron cold roll forming equipment , Concrete Roof Tile making Machine
1.. corrugated Iron roof making machine double layer roll forming machine roof tile making machine Processing technique and deployment
corrugated Iron roof making machine double layer roll forming machine roof tile making machine by the uncoiling,feeding, leveling,roll forming,shearing, production, Production of color plate appearance of smooth beautiful paint pattern uniform, high strength, durable, widely used in industrial and civil buildings, such as factories, warehouses, stadiums, exhibition halls, theaters and other room surfaces and walls.
User parameters: the number of sheets, the length of the first section, distal, pitch, number of sections, pre-press section, and so on.
2. corrugated Iron roof making machine double layer roll forming machine roof tile making machine Components of line:
No. | Name | Unit | Qty |
1 | Decoiler | set | 1 |
2 | Main Machine for roll forming | set | 1 |
3 | Control System(PLC) | set | 1 |
4 | Pressing System | set | 1 |
5 | Cutting System | set | 1 |
6 | Output Table | set | 1 |
3. corrugated Iron roof making machine double layer roll forming machine roof tile making machine parameters
corrugated Iron roof making machine double layer roll forming machine roof tile making machine Description | Introduction |
Working efficiency |
8-12m/min
|
Thickness of Material |
0.3--0.8mm (can be changed according to customers need)
|
Width of material |
914mm;940mm;1000mm;1200mm;1220mm;1250mm According to customers need
|
Control system |
PLC(The brand can be choose)
|
Uncoiler system |
5Ton Manual Operation(1250mm width)
|
Forming by rolling |
13 rows (According to the machine design)
|
Roller material |
GCR15 Aluminium processing after quenchin HRC58-62°C,Chrome plated
|
Shaft and the diameter of axle |
45#Aluminium-processing ,diameter of axle=80mm
|
Main part power |
5.5kw
|
Hydraulic motor power |
4kw
|
Hydraulic pressure |
12Mpa
|
Scissor material |
Cr12Mov, herd steel HRC 58-62°C
|
length tolerance |
±1.5mm
|
voltage |
380V, 50HZ,3 phase (adjustable by customer needs)
|
Frame form |
Middle plate
|
Driving Method |
Chain
|
Color |
Yellow and blue(adjustable)
|
Size |
length*Width*Height - 8.2*1.65*1.5m
|
weight |
about 5.0T
|
Package |
Nude package in 1*20GP container
|
Delivery date |
30 working days
|
Payment Method |
30% T/T in advance and balance 70% after inspection confirmation before shipment.
|
If you have your own drawing, please send it to us, we can design the machine, depend on your drawing.
|
