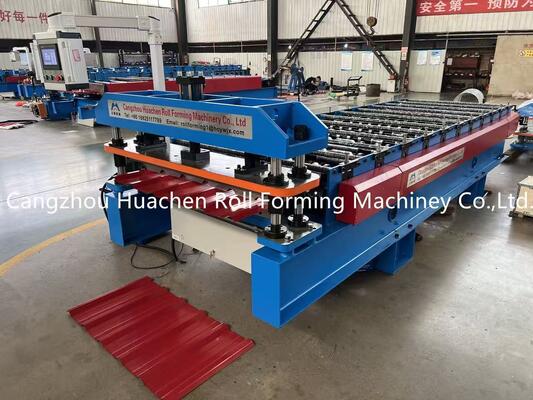

0.3-0.6mm Thickness Roofing Sheet Roll Forming Machine with 11 Stations and Chain Drive for Auto Sheet Metal Rolling

0.3-0.6mm Thickness Roofing Sheet Roll Forming Machine with 11 Stations and Chain Drive for Auto Sheet Metal Rolling
0.3-0.6mm Thickness Roofing Sheet Roll Forming Machine with 11 Stations and Chain Drive for Auto Sheet Metal Rolling
0.3-0.6mm Thickness Roofing Sheet Roll Forming Machine with 11 Stations and Chain Drive for Auto Sheet Metal Rolling 0.3-0.6mm Thickness Roofing Sheet Roll Forming Machine with 11 Stations and Chain Drive for Auto Sheet Metal Rolling

Large Image :  0.3-0.6mm Thickness Roofing Sheet Roll Forming Machine with 11 Stations and Chain Drive for Auto Sheet Metal Rolling

Product Details:
Place of Origin: China
Brand Name: HC
Certification: CE
Model Number: HC25-205-1000
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: Main roll forming machine and decoiler is nude packing, PLC control system and motor pump are packed with water proof paper, spare parts in carton box. One set of machine needs a 40GP container.
Delivery Time: 25-30 work days
Payment Terms: L/C,T/T
Supply Ability: 20 sets per month
Contact Now

0.3-0.6mm Thickness Roofing Sheet Roll Forming Machine with 11 Stations and Chain Drive for Auto Sheet Metal Rolling

Description
Material Type: PPGI/GI Material Thickness: 0.3-0.6mm
Material Width: 1200mm Roller Stations: 11Stations
Diameter Of Shaft: Φ70mm Roller & Shaft Material: 45# Steel Quenching And Plating
Cutter Material: CR12 Drive Type: Chain Drive
Speed: 15-20m/min Total Power: 5.5+5.5KW
Voltage: 380v,50Hz, 3Phases(can Be Customized)
Highlight:

roof tile roll forming machine

,

roof panel roll forming machine

0.3-0.6mm Steel Roofing Sheet Roll Forming Machine
Product Overview

Auto Sheet Metal Rolling Equipment for professional roofing panel production

Main Technical Parameters
Parameter Specification
Material Type PPGI/GI
Thickness 0.3-0.6mm
Width 1200mm
Roller Stations 11 Stations
Roller & Shaft Material 45# Steel Quenching and Plating
Diameter of Shaft Φ70mm
Cutter Material CR12
Drive Type Chain Drive
Speed 15-20m/min
Total Power 5.5+5.5KW
Voltage 380V 50Hz 3Phases (can be customized)
Component & Technical Parameters
Component Description & Specifications
5T Manual Decoiler
0.3-0.6mm Thickness Roofing Sheet Roll Forming Machine with 11 Stations and Chain Drive for Auto Sheet Metal Rolling 0

This part is used to support coil and make the coil rotate. Bearing capacity: 5T. Inner diameter: 470-530mm (adjustable according to demand). Equipped with brake device to prevent machine damage from impact during operation.
Feeding Table & Pre-Cutter
0.3-0.6mm Thickness Roofing Sheet Roll Forming Machine with 11 Stations and Chain Drive for Auto Sheet Metal Rolling 1

Guides the coil into correct position for roll forming. Includes hand pull cutting device for pre-cutting when changing color or thickness.
Shaft & Roller
0.3-0.6mm Thickness Roofing Sheet Roll Forming Machine with 11 Stations and Chain Drive for Auto Sheet Metal Rolling 2

Material is 45# Steel Quenching and Plating. Processed rollers are smooth, hard and rust-resistant. Will not leave scratches on sheets during operation.
Hydraulic Pump Station
0.3-0.6mm Thickness Roofing Sheet Roll Forming Machine with 11 Stations and Chain Drive for Auto Sheet Metal Rolling 3

Drives the cutter for cutting operations. Hydraulic tank uses 46# hydraulic oil. Equipped with cooling fan for internal circulation cooling to prevent high oil temperature issues. Solenoid valve brand: Huade.
Touch Screen Control Cabinet
0.3-0.6mm Thickness Roofing Sheet Roll Forming Machine with 11 Stations and Chain Drive for Auto Sheet Metal Rolling 4

Features automatic and manual operation modes. Allows setting of unit length and quantity on touchscreen. Simple and easy to operate system.

Electrical Components:

  • VFD: Delta
  • Circuit breaker: Delixi
  • Contactor: Delixi
  • Relay: Xinling
  • PLC: Delta
  • Transformer: Delixi
Pressing Section & Cutter
0.3-0.6mm Thickness Roofing Sheet Roll Forming Machine with 11 Stations and Chain Drive for Auto Sheet Metal Rolling 5

Blade material is CR12 with high strength, excellent hardenability and superior wear resistance.
Output Table

Collects formed products. Bracket equipped with rollers to facilitate product forwarding without scratching.
Spare Parts Included
Part Quantity
Chains 2 Sets
Solenoid Valve 1 Set
Travel Switch 2 Sets
Open-End Wrenches 2 Sets
Hexagon Wrench 2 Sets
Counter 1 Set
Wrench 2 Sets
Oil Seals 1 Set
Applications

Roof Panel, Wall Panel

Key Advantages
Reasonable Price
High Quality
12 Months Warranty
More Than 10 Years Experience
Durable
Reliable
Product Images
0.3-0.6mm Thickness Roofing Sheet Roll Forming Machine with 11 Stations and Chain Drive for Auto Sheet Metal Rolling 6 0.3-0.6mm Thickness Roofing Sheet Roll Forming Machine with 11 Stations and Chain Drive for Auto Sheet Metal Rolling 7 0.3-0.6mm Thickness Roofing Sheet Roll Forming Machine with 11 Stations and Chain Drive for Auto Sheet Metal Rolling 8 0.3-0.6mm Thickness Roofing Sheet Roll Forming Machine with 11 Stations and Chain Drive for Auto Sheet Metal Rolling 9
