11 Stations 15m/min Speed 1200mm Width Metcopo Step Tile Roof Sheet Roll Forming Machine Roll Forming Equipment

1set
MOQ
11 Stations 15m/min Speed 1200mm Width Metcopo Step Tile Roof Sheet Roll Forming Machine Roll Forming Equipment
Features Gallery Product Description Request A Quote
Features
Specifications
Material Type: PPGI/GI
Material Thickness: 0.3-0.6mm
Material Width: 1200mm
Roller Stations: 11Stations
Roller & Shaft Material: 45# Steel Quenching And Plating
Diameter Of Shaft: Φ70mm
Cutter Material: CR12
Drive Type: Chain Drive
Speed: 15m/min
Total Power: 5.5+5.5KW
Voltage: 380V 50Hz 3Phases(can Be Customized)
Highlight:

cold roll forming machine

,

roof panel roll forming machine
Basic Infomation
Place of Origin: China
Brand Name: HC
Certification: CE
Model Number: HC28-250-1000
Payment & Shipping Terms
Packaging Details: Main roll forming machine and decoiler is nude packing, PLC control system and motor pump are packed with water proof paper, spare parts in carton box. One set of machine needs a 40GP container.
Delivery Time: 25-30days
Payment Terms: L/C,T/T
Supply Ability: 20 sets/month
Product Description

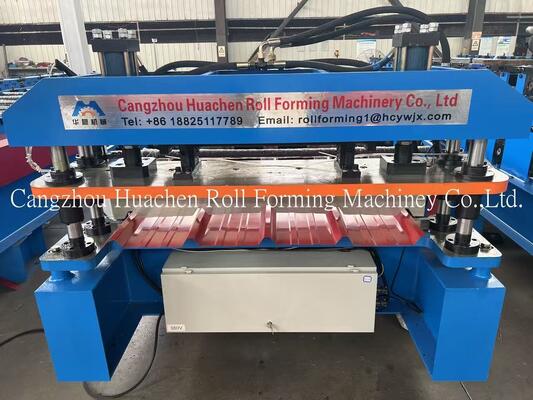

Aluminium Metcopo Step Tile Roof Sheet Roll Forming Line

This rollform equipment produces aluminum metcopo step tile roof sheets, a new tile model that offers enhanced performance compared to standard step tile roof sheets.

System Overview

The complete aluminum metcopo stepped tile roofing sheets production line includes a 5-ton automatic electric decoiler, sheet guilder, corrugation machine, hydraulic cutter, supporting tables, and Mitsubishi PLC controller. This rolling machine enables operators to produce metcopo steptiles of any length.

11 Stations 15m/min Speed 1200mm Width Metcopo Step Tile Roof Sheet Roll Forming Machine Roll Forming Equipment 0
Technical Specifications
Parameter Specification
Material Type PPGI/GI
Thickness 0.3-0.6mm
Width 1200mm
Roller Stations 11 Stations
Roller & Shaft Material 45# Steel Quenching and Plating
Diameter of Shaft Φ70mm
Cutter Material CR12
Drive Type Chain Drive
Speed 15-20m/min
Total Power 5.5+5.5KW
Voltage 380V 50Hz 3Phases (can be customized)
System Components
  • Uncoiler
  • Coil Sheet Guiding and Adjusting Equipment
  • Film Covered Device
  • Main Corrugation System
  • Post-Cutting Device
  • Hydraulic Station for Cutting and Step Pressing
  • PLC Control System
  • Support Tables
Component Details & Specifications
Component Description & Specifications
5T Manual Decoiler
11 Stations 15m/min Speed 1200mm Width Metcopo Step Tile Roof Sheet Roll Forming Machine Roll Forming Equipment 1

Supports coil and enables rotary movement. Bearing capacity: 5T. Inner diameter: 470-530mm (adjustable according to demand). Equipped with brake device to prevent machine damage from impact during operation.
Feeding Table & Pre-Cutter
11 Stations 15m/min Speed 1200mm Width Metcopo Step Tile Roof Sheet Roll Forming Machine Roll Forming Equipment 2

Guides coil into correct position for roll forming. Includes hand pull cutting device for convenient pre-cutting when changing color or thickness.
Shaft & Roller
11 Stations 15m/min Speed 1200mm Width Metcopo Step Tile Roof Sheet Roll Forming Machine Roll Forming Equipment 3

Material: 45# Steel Quenching and Plating. Processed rollers are smooth, hard, and rust-resistant. Will not leave scratches on sheets during operation.
Hydraulic Pump Station
11 Stations 15m/min Speed 1200mm Width Metcopo Step Tile Roof Sheet Roll Forming Machine Roll Forming Equipment 4

Drives cutter for cutting operations. Hydraulic tank uses 46# hydraulic oil. Equipped with cooling fan for internal circulation cooling to prevent high oil temperature issues during operation. Solenoid valve brand: Huade.
Touch Screen Control Cabinet
11 Stations 15m/min Speed 1200mm Width Metcopo Step Tile Roof Sheet Roll Forming Machine Roll Forming Equipment 5

Features automatic and manual modes. Allows setting of unit length and quantity on touchscreen. Simple and easy to operate.

Electrical Component Brands:

  • VFD: Delta
  • Circuit breaker: Delixi
  • Contactor: Delixi
  • Relay: Xinling
  • PLC: Delta
  • Transformer: Delixi
Pressing Section & Cutter
11 Stations 15m/min Speed 1200mm Width Metcopo Step Tile Roof Sheet Roll Forming Machine Roll Forming Equipment 6

Blade material: CR12. Provides high strength, excellent hardenability, and superior wear resistance.
Output Table

Collects formed products. Bracket equipped with rollers to facilitate product forwarding without scratching.
Spare Parts Included
Part Quantity
Chains 2 Sets
Solenoid Valve 1 Set
Travel Switch 2 Sets
Open-End Wrenches 2 Sets
Hexagon Wrench 2 Sets
Counter 1 Set
Wrench 2 Sets
Oil Seals 1 Set
Production Workflow

Decoiling Sheet → Guiding Sheet → Covering Film → Roll Forming → Measuring The Length → Cutting Sheet → Runout Tables
