Product Details:
|
| Type: | Glazed Tile Roll Forming Machine | Width: | 1250 |
|---|---|---|---|
| Thickness: | 0.3-0.6mm | Capacity: | 2-4m/min |
| High Light: | cold roll forming machine,roof tile roll forming machine |
||

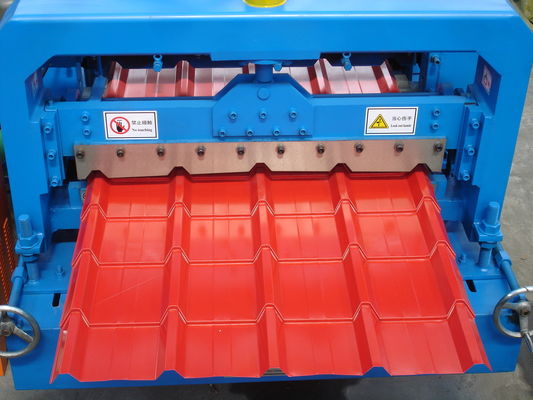

Automatic R Panel Roll Forming Machine
A good design makes machine performs outstanding.We have 15 year experience R&D devoted to desing your machine.
Basic Information
Parameters of Automatic R Panel Roll Forming Machine
| Item | Specification |
Raw Material |
Pre-painted steel coil & galvanized coils |
| 0.3-0.8 | |
| 235-550 | |
| Roller material | 45# steel , coated with Chrome |
| Shaft for rollers | Solid shaft with 72mm,processed with cylindrical grinder |
| Forming speed(m/min) | About 20 |
| Output speed(m/min) | About 10 |
| Speed adjusting mode | Mitsubishi frequency transformer |
| Roller drive | Decelerating motor + Chain drive |
| Cutting mode | automatic hydraulic cut to length |
| Cutter material | Cr12 mould steel |
| Length measurement | Nemicon Encoder |
| Control mode | Mitsubishi PLC |
| Operating mode | Button + Mitsubishi Touch screen |
| Main motor power(kw) | 7.5KW |
| Total power(kw) | 9.9 KW |
| Decoiler (manual decoiler and hydraulic decoiler for option) | 1set |
| Feeding & guiding device | 1set |
| Main roll forming machine | 1set |
| Hydraulic cutting system | 1set |
| Controlling system | 1set |
| Run out table (auto. Stacker for option) | 1set |
We customize your machines! To customize machine, we would love to know:
1. Profile drawing
2. Raw material: the width(1250mm?), thickness(0.3-0.7mm?), and yield strength of steel coil.
3. Voltage: designed per your requirement
4. Configuration requirement: Hydraulic or manual decoiler / stacker?
Have no idea about them?
We will be glad to recommend the lacal popular profile for you----Just let us know your country!
Packing
1. One 40feet container for loading one set machine with mechanical decoiler.
2. Main machine body and decoiler is load naked (tighten to container with steel wire rope).
3. Spare parts and operating tools are loading in tooling box.
Delivery : about 40-50 days after received advanced payment
We garantee:
Machine lifetime service
Technician overseas services.
