Product Details:
|
| Type: | Gardens Knudson Roll Former / Sheet Metal Roll Forming Machines Factories Use | Rollers: | 18 |
|---|---|---|---|
| Roller Material: | No.45 Steel | Warranty: | 12 Month |
| Highlight: | roof tile roll forming machine,cold roll forming machine |
||
Machine design adopt the advanced European technology and craft , the machine design principle is to use all kinds of special rollers to form the customized shape of the roof tile, roof sheets.
Working Flow
Decoiler--Feeding and Guiding--Main Roll Forming--Cutting--Collecting Products
Machine Features
| Feature1 | High accuracy, length cutting tolerance is +/-1.5mm(per) it can guarantee the produts produced by the machine are very beautiful |
| Feature2 | Electrical motor gives the power to the chains or gear boxes to bring the machine to run It is very easy to install the machine |
| Feature3 | When producing another size of 1 shape you just need to change the spacers |
| Feature4 | Engineers adopted the advanced European technology and craft to design machines |
| Feature5 | Machine structure is very stable ,when machine running it is very safe |
| Feature6 | Cutting length, width, quantity are adjustable by PLC control system , hydraulic station provide the Cutting motor power for the cutting models |
| Feature7 | We will provide any technical support for any customers |
Production Description
The roll forming machine adopt the advanced European technology, we choose the best material for every components of the machine, the material of the rollers is 45# steel ,chroming and polishing on the surface which can make the production profile surface is smooth when producing, the machine base adopts welded steel plate structure ,machine can be stable and fix , chains and gear box move the line , motor drives.
Working Flow
Decoiler--Feeding and Guiding--Main Roll Forming--Cutting--Collecting Products
Composition of machine
Machine Specifications
| Coil Material | Thickness | 0.4-0.8mm |
| Coil width | Depend on customer’s requires | |
| Yield Strength | G250Mpa | |
| Material | Galvanized steel sheet, color steel, | |
| Decoiler | Coil Width | Max. 1300mm |
| I.D | 510-610mm | |
| O.D | Max. 1200mm | |
| Capability | Max. 10Tons | |
| Decoiler type | Manual / Hydraulic/Automatic | |
| Feed and level | Pinch feeding | 1 Units ( 2 Rollers ) |
| Cutting device | Cutting motion | Hydraulic Cutting, post-Cutting ( cutting sheet after forming ) |
| Cutting blades | Cr12Mov with heat treatment HRC58-62 | |
| Length Measuring | Automatic length measuring by encoder & PLC. | |
| Cutting Tolerance | +/-1.5mm(per 3m) | |
| Roll Forming Machine | Forming Stations | 18 Stations |
| Rectifying | 1 unit | |
| Roller material | GCr15 steel, heat treatment | |
| Diameter of shaft | 80mm | |
| Shaft material | High grade 45# steel | |
| Drive type | Chains | |
| Forming speed | 15m/min | |
| Main power | 7.5KW | |
| Servo motor | 1 Units | |
| Driven System | Driven by Motor | Transmission by chains |
| Electrical control | PLC | PANASONIC Brand or Custom-made |
| Inverter | YASKAWA Brand or Custom-made | |
| Touch screen | MCGS Brand or Custom-made | |
| Operation type | Touch screen & Button | |
| Hydraulic Station | Hydraulic station | Famous Chinese brand |
| Hydraulic power | 7.5KW | |
| Runout Table | Table type | Simple non-power type |
| Function | To support the finished panels | |
| Total Weight | APRRO 7-9 TONS |

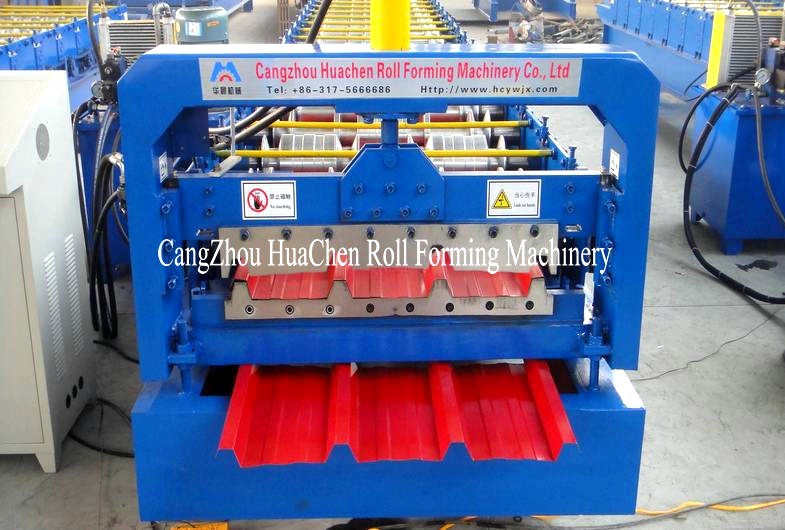

Machine Pictures
