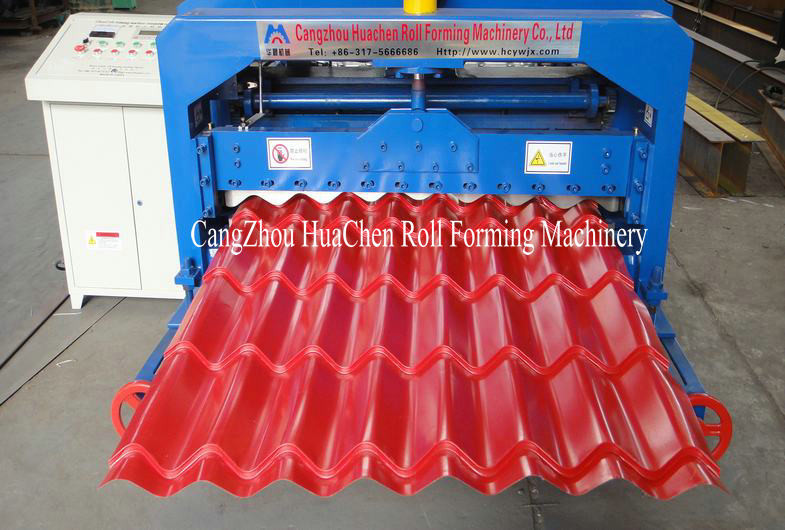

Product Details:
|
| Type: | Glazed Tile Roll Forming Machine | Thickness: | 0.3-0.6mm |
|---|---|---|---|
| Width: | 1250mm | Warranty: | 1 Year |
| High Light: | roll forming equipment,roof tile roll forming machine |
||
Techniacl Specifiactions of Glazed tile roll forming machine
| Item | Glazed Tile Roll Forming Machine | |
| Coil Specifications | Thickness | 0.3 - 0.8mm |
| Coil width | Depend on Profiles | |
| Yield Strength | 250-350 Mpa | |
| Material | GI. Aluminium,PPGI, SS | |
| Decoiler / Uncoiler | Decoiler Type | Manual or Hydraulic or Auto Type |
| Coil Width | Max. 1250mm | |
| I.D | 508-610mm | |
| O.D | Max. 1500mm | |
| Standing Seam Roll Forming Machine | Forming Stations | 15 Stations ( Depend on Profiles ) |
| Roller material | 45# steel, surface coated with 0.05mm hard chrome | |
| Diameter of shaft | 75mm | |
| Shaft material | High grade 45# steel | |
| Drive type | Chain transmission | |
| Forming speed | 8 - 15m/min | |
| Main power | 5.5KW | |
| Cutting System | Cutting type | Hydraulic cutting |
| Cutting Die Material | Cr12Mov steel, HRC58-62 | |
| Cutting power | 3KW | |
| CuttingTolerance | 10m+/-1.5mm | |
| Encoder | OMRON Brand | |
| Electrical Control Box System | PLC | PANASONIC Brand |
| Inverter | YASKAWA Brand | |
| Touch screen | MCGS ,7Inches | |
| Operation type | Touch screen & Button | |
| Hydraulic Station | Hydraulic station | Famous Chinese brand |
| Support Tables | Table type | Simple nonpower type |
| Function | To support the finished panels | |
Main Components of IBR Roof Sheeting Roll Forming Machine
| De-coiler / Un-coiler | 1 Unit |
| Feeding Guide | 1 Unit |
| Standing Seam Roof Roll Forming Machine | 1 Unit |
| Hydraulic Cutting Device | 1 Unit |
| Hydraulic Station | 1 Unit |
| PLC Computer Control Board | 1 Unit |
| Runout Tables | 2 Units |
Applications
Roof panel are high strength and durableare with smooth beautiful appearance,uniform lacquer weins,so widely used in building: the steel-structured large-scale warehouses, plants, supermarkets,shopping malls, trade markets, stadiums, holiday villages, sanatoriums, hotels, villas, residences, and different kinds of greenhouses. What's more, equipment can be designed and manufactured as customers' requests.So they are popular with customers at home and aborad,especially in the Middle East,African countries,Russis,the annual demand has a rising trend.
Advantages
1. We can offer High Quality Machines
2. Reasonable Price Compares other machineries
3. Good after Service/Lifetime Service
4. 1 Year Warranty
5. With 15 years professional manufactural experience
6. Customers can design logo,size,color and so on
7. Technican overseas installing and training.
