Siding Panel Forming Machine For Kosovo

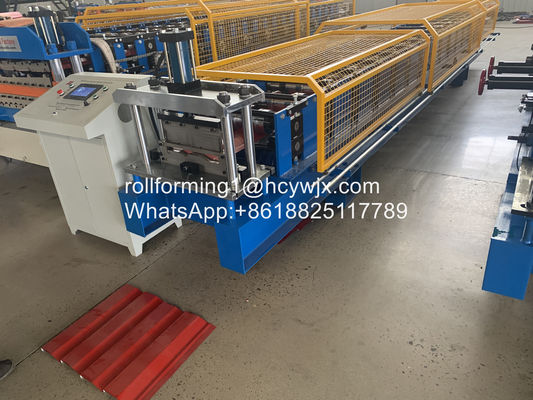

Large Image : Siding Panel Forming Machine For Kosovo

Product Details:

Place of Origin:	China
Brand Name:	HC
Certification:	ISO CE
Model Number:	HC20

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Packaging Details:	1.Main roll forming machine and un-coiler is nude packing (If you need, we can also packed it with water-proof plastic) 2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box. 3.One set of machine needs a 40' con
Delivery Time:	30 work days
Payment Terms:	D/A, Western Union, L/C, T/T
Supply Ability:	20 sets per month

Contact Now

Siding Panel Forming Machine For Kosovo

Description

Material:	PPGi GI	Capacity:	15m/min
Machine Weight:	3.1T	Rollers:	45# Steel
Type:	Roll Forming Machine	Warranty:	12 Month
Technical Support:	Whole Life
High Light:	sheet metal rolling equipment , roof sheet making machine

Steel Wall Panel Roll Forming Machine Application

Our Roofing Tile Roll Forming Machine can produce various of steel roof and wall panel, it is a new building materials, the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre, etc. It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.

SPECIFICATIONS FOR Steel Wall Panel Roll Forming Machine
Main Roll Forming Machine	Roller station	15 rows
	Material of roller	High grade 45# forged steel plated with hard chrome plating
	Material of cutter	Cr12 mould steel with quenched treatment
Material	Type	PPGI GI AL
	Material width	customized
	Material thickness	0.3-0.6mm
Others	Speed	15m/min
	PLC system	EURA or customized
	Weight	3.1T

Steel Wall Panel Roll Forming Machine Features

We do high standard roll forming machine for export about 10 years.
We have mature foreign trade team,senior engineers, experienced workers to make you satisfied.
We have machines at more than 90 cuntries and regions,and keep good business relationship.
we offer one year free warranty and free service for whole life of any machine.

Certifications

Steel Wall Panel Roll Forming Machine Parts

Detailed Images

Name: Rollers
In order to get high quality product, our machine adopts welded steel frame structure, AC frequency conversion motor reducer drive, chain transmission, roller surfaces polishing, hard plating, heat treatment and chrome coating.
Roller chrome coated thickness: 0.05 mm
Roller material: Forging Steel 45# heat treatment

Main Roll Former We have experieced workers to design the rollers as customized profile drawing , and adopts welded steel frame sturcture, AC frequency conversion motor reducer drive, chain transmission , to get strong machine for good finish products .
	PLC control system Brand : EURA or Customized EURA PLC is adopted to organize all actions of the machine. The length of workpiece is adjustable according to the setting of on the PLC. In order to make the machine has a long service life and easy maintenance; we only adopt globally famous electrical components. And by our special designed program, the HIM (Human Machine Interface) is very easy to be adopted by any level of operators.
Hydraulic Cutting System It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products. With non stop cutting Material of blades: Cr12,quenching treatment

Our Service


Pre-Sales Service * Inquiry and consulting support. * Sample testing support. * View our Factory.	After-Sales Service * Training how to instal the machine, training how to operate the machine. * Engineers available to service machinery overseas.

Packing & Delivery

Size: 7400 (L) * 850 (W) * 1510 (H)
Weight: 3.1T
1.Main Roll Forming Machine and un-coiler is nude packing (If you need, we can also packed it with water-proof plastic)
2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box.
3.One set of machine needs a 40' container to shipping.
