Product Details:
|
High Light: | roof tile roll forming machine,cold roll forming machine |
---|

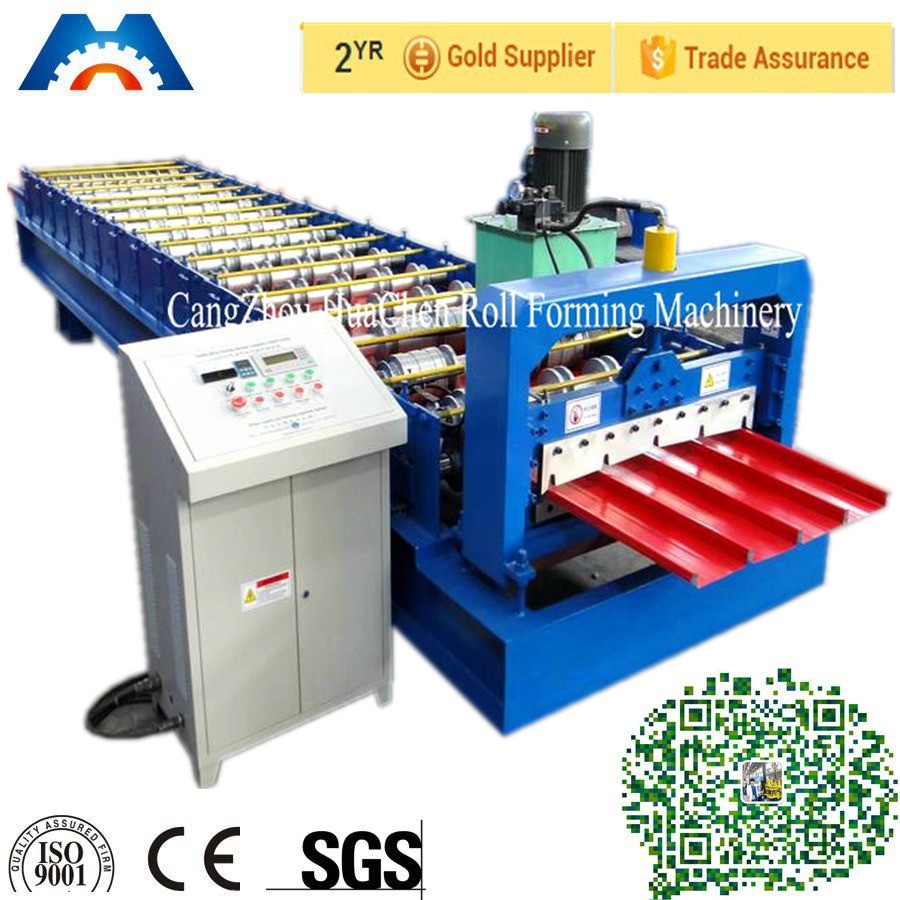

Aluminium / Galvanised Corrugated Steel Roofing Sheet Roll Forming Machine
Quick Detail:
1. Suitable to process: Color steel plate
2. Width of the plate:1115mm
3. Rollers: 16 rows
4. Dimensions: 7.8*1.55*1.51m
5. Power: 4+4kw
6. Rolling material: 45# steel(plated chrome on surface)
7. Thickness of the plate:0.3-0.6mm
8. Voltage: 380V 50Hz 3phases
9. Material of the cutting plate: Cr12
10. Hydraulic: 40#
11. Processing precision: Within 1.00mm
12. Control system: PLC control
Description:
Roofing sheet Roll Forming Machine Main parameter
No. |
Main parameter of Roofing sheet Roll Forming Machine |
|
1 |
Suitable to process |
Color steel plate |
2 |
Width of the plate |
1115 mm |
3 |

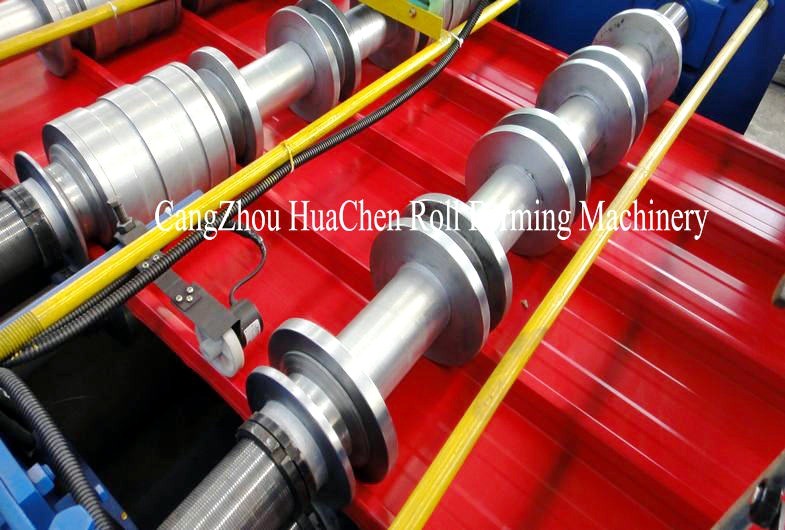

Rollers |
16 rows |
4 |
Dimensions |
7800*1550*1510mm |
5 |
Power |
4+4kw |
6 |
Rolling material |
45# steel(plated chrome on surface) |
6 |
Thickness of the plate |
0.3-0.6mm |
7 |
Productivity |
8-10m/min |
8 |
Diameter of the roller |
Φ70mm |
9 |
Voltage |
380V 50Hz 3phases |
10 |

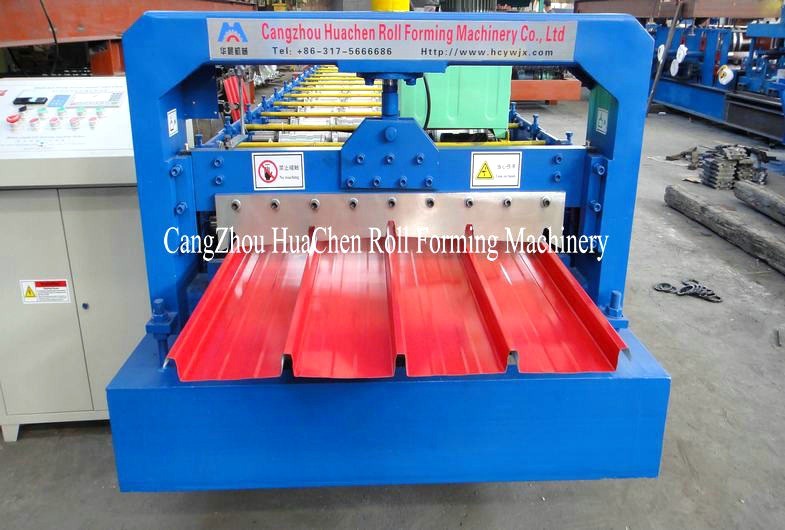

Material of the cutting plate |
Cr12 |
11 |
Hydraulic |
40# |
12 |
Processing precision |
Within 1.00mm |
13 |
Control system |
PLC control |

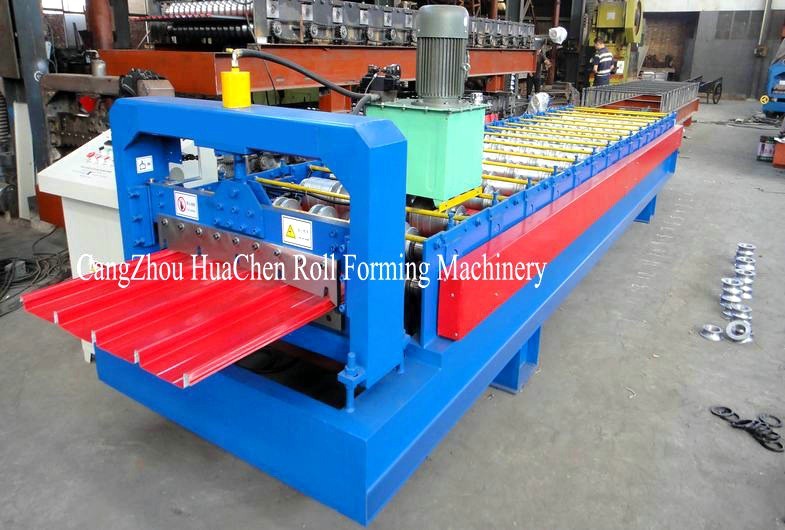

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting
Application

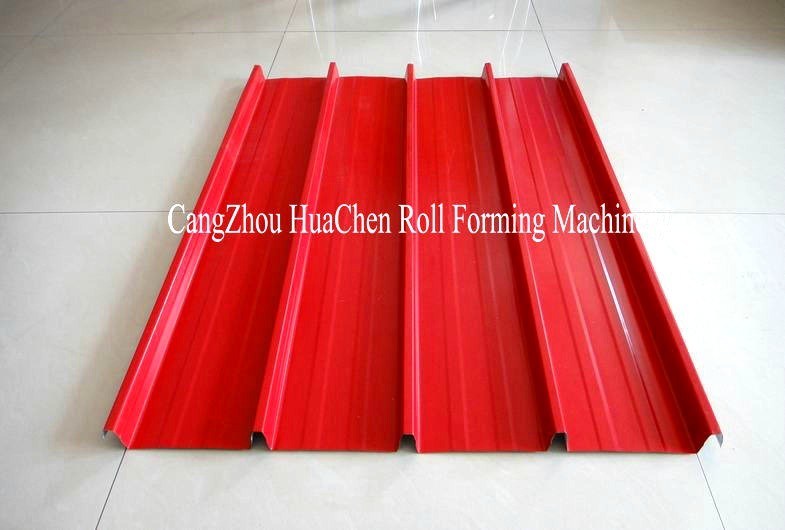

This type of sheet can be widely used in plant, house, storage and simple wall. It has advantage of pretty appearance, durable using and so on.
Competitive Advantage
1. elegant appearance
2.high quality steel structure
3. One year free guarantee
4. lifelong maintain
5. Panasonic PLC
