High speed double layer building used metal roofing roll forming machine

High speed double layer building used metal roofing roll forming machine
High speed double layer building used metal roofing roll forming machine High speed double layer building used metal roofing roll forming machine High speed double layer building used metal roofing roll forming machine High speed double layer building used metal roofing roll forming machine High speed double layer building used metal roofing roll forming machine

Large Image :  High speed double layer building used metal roofing roll forming machine

Product Details:
Place of Origin: Botou Hebei China
Brand Name: HC
Certification: ISO
Model Number: HC23/35
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: 15000-39000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month

High speed double layer building used metal roofing roll forming machine

Description
Material: Color Steel Thickness: 0.3-0.6mm
Width: Custom Weight: 7T
Length: 9M Warranty: 1 Year
High Light:

metal roll forming machine

,

sheet metal roll forming machines

High speed double layer building used metal roofing roll forming machine


(1). Brief Introduction

The Roof Panels made by our Roll Forming Machine have beautiful appearance and bright color.

They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands,

ancient architectures and modern villas.



(2). Working Flow of Roll Forming Machine

Decoiling the sheet-Sheet guiding-Roll forming-Measure length-Cutting the panel-Panels to the supporter



High speed double layer building used metal roofing roll forming machine



(3).Technical Detail



A. General

Suitable Material HRB60 or equivalent
Material Thickness 0.2-0.6 mm
Dimension About 7.2*1.3*1.1m(L*W*H) , as per the drawing

Length of

the Sheet

You can set the length according to your need.

It is controlled by PLC

which can ensure the accuracy of ±1mm.

Cutting

Automatically stop and cutting when it comes to the set

length.



B. Components Details

Roller Material High grade 45# steel. Hard chrome plating, 0.05mm.
Main Frame 350# steel. More stable and no shaking.
Middle Plate

16mm. We use thicker plates to ensure stability

of our products.

Forming Steps 11-16, according to the drawing.
Shaft Material Φ70 mm, high grade 45# steel.

Treating process: tempering- finish turning,

high rigidity, hard to deform.

Cutting

Blade Material

Cr12, hardness HRC60-62.
Treating process: heat treatment- plane abrasion- wire electrode cutting.



C. Electric Components

Suitable Power 380V, 50 Hz, 3 phase or according to your need.
Screen 7 inch touch screen, easy to operate.
PLC Delta DVP14ES

Well-adapted to various conditions, such as moisture,

electromagnetic disturbance.

Frequency Converter

Delta VFD-M. It has the advantage of slowing down before cutting,

to ensure the length accuracy (±1mm,

far better than industrial standard ±3mm).

Length

Measurement Device

Omron, made in Japan.
It features with high accuracy and stability.

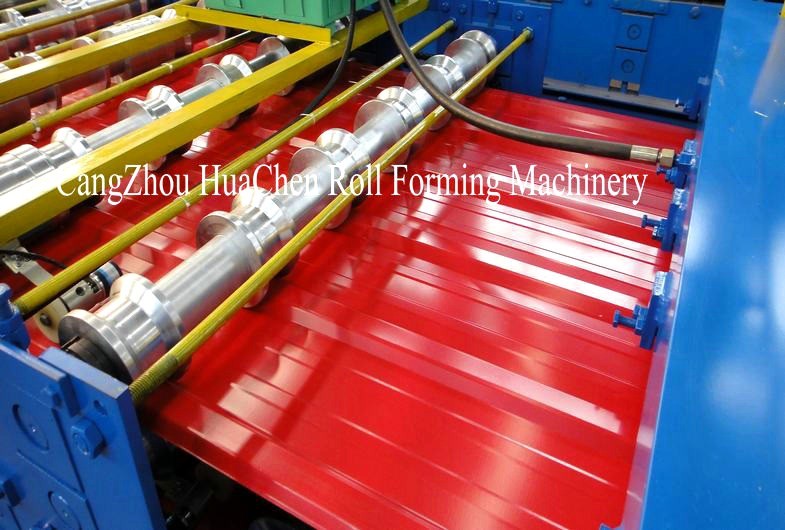

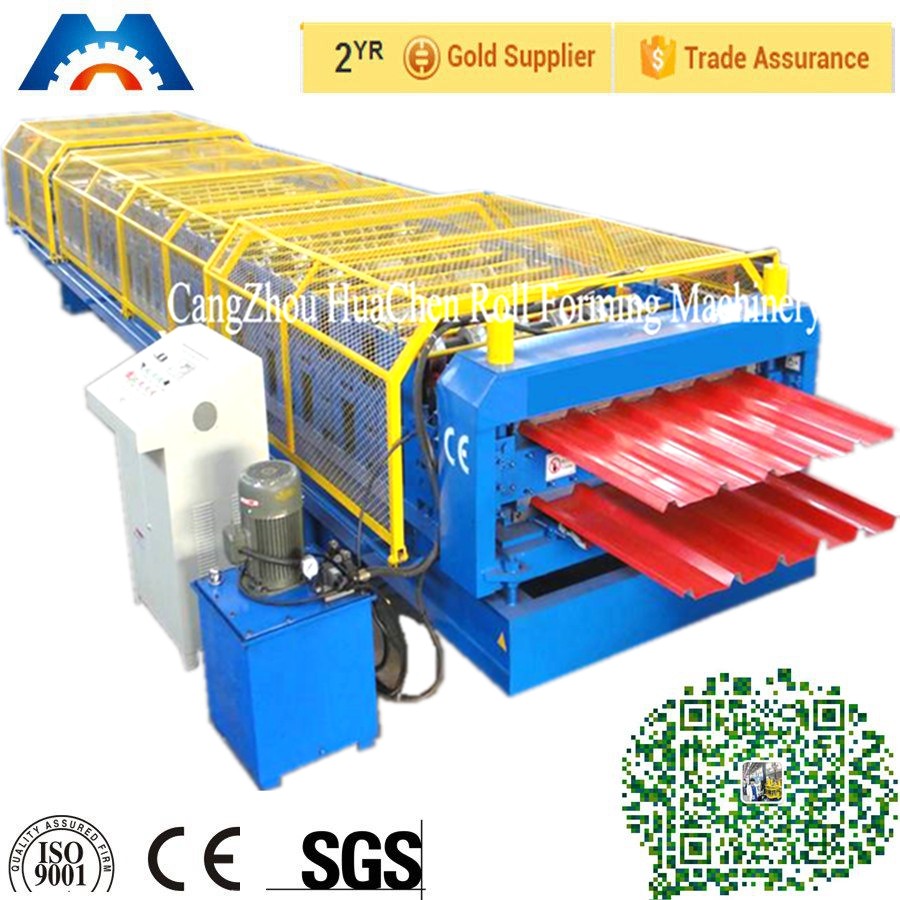

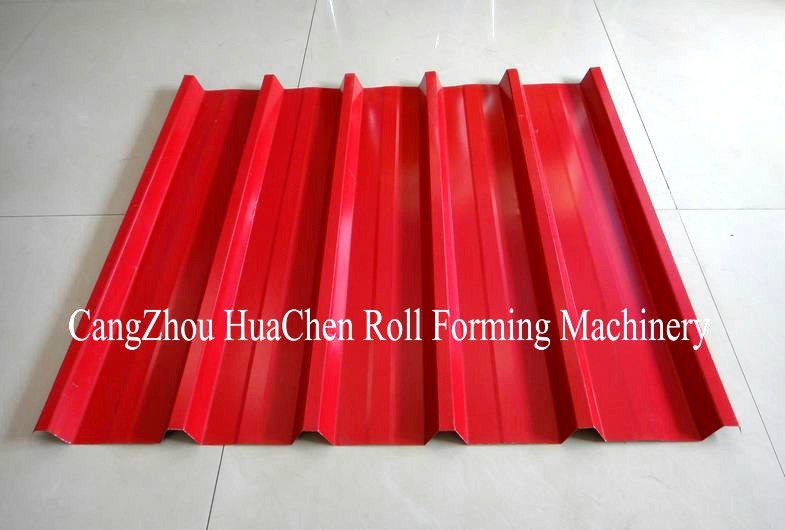

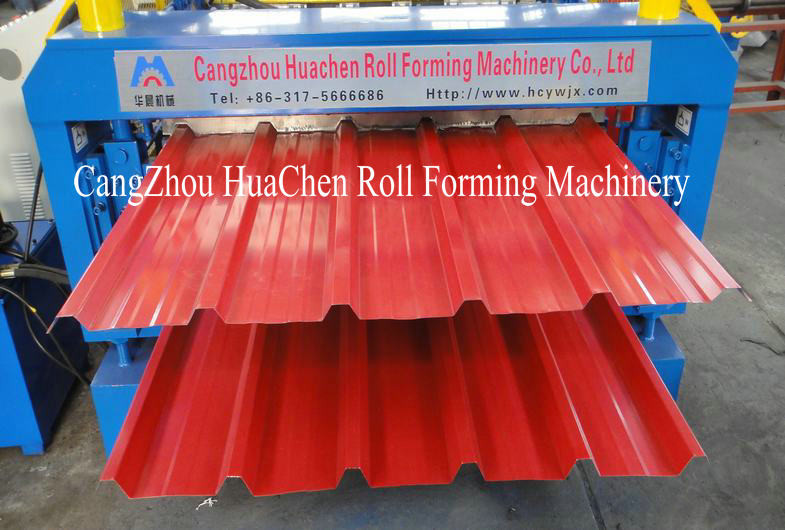

High speed double layer building used metal roofing roll forming machine 1High speed double layer building used metal roofing roll forming machine 2High speed double layer building used metal roofing roll forming machine 3High speed double layer building used metal roofing roll forming machine 4High speed double layer building used metal roofing roll forming machine 5


Quick Detail:

1. Suitable to process: Color steel plate
2. Width of the plate: 1250mm
3. Rollers: 10/16 rows
4. Dimensions: 9.2*1.55*1.91m
5. Power: 4+4kw
6. Rolling material: high grade 45# steel(plated chrome on surface)
7. Thickness of the plate:0.3-0.6mm
8. Voltage: 380V 50Hz 3phases
9. Material of the cutting plate: Cr12
10. Hydraulic: 40#
11. Processing precision: Within 1.00mm
12. Control system: PLC control


Description:

2 In 1 Double Roof Roll Forming Machine For Two Different Roof Profiles Main parameter

No.

 Main parameter of Double layer roll forming machine


1

Suitable to process

Color steel plate

2

Width of the plate

1250mm

3

Rollers

upper level :15 rows
Down level :18 rows

4

Dimensions

10200*1550*1910mm

5

Power

4+4kw

6

Rolling material

high grade 45# steel(plated chrome on surface)

6

Thickness of the plate

0.3-0.6mm

7

Productivity

15-20m/min

8

Diameter of the roller

Φ70mm

9

Voltage

380V 50Hz 3phases

10

Material of the cutting plate

Cr12

11

Hydraulic

40#

12

Processing precision

Within 1.00mm

13

Control system

PLC control

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system- cutting


Application

This kind of machine make two types of tile together perfectly, it has reasonable structure, beautiful appearance, with advantage of saving space, easy operate and especially welcomed by the customer  with limit area or site


Competitive Advantage


1. CE certification
2. noiseless
3. easy operate
4. high output
5. easy maintain

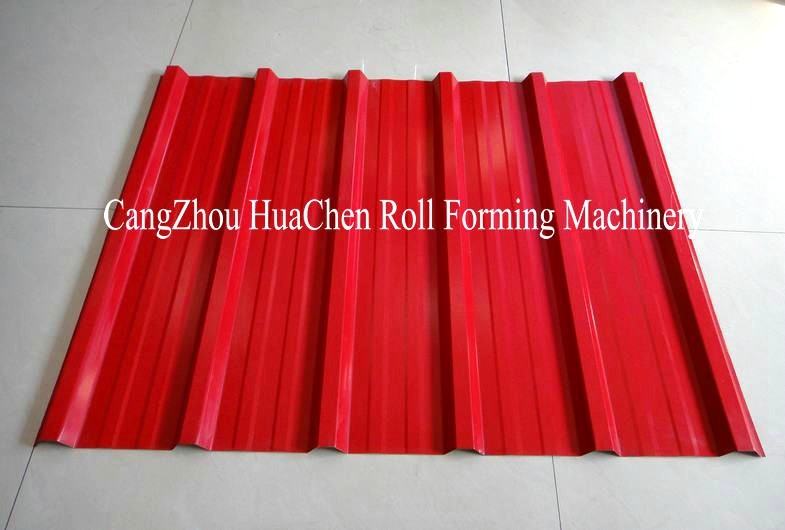

High speed double layer building used metal roofing roll forming machine 6High speed double layer building used metal roofing roll forming machine 7
