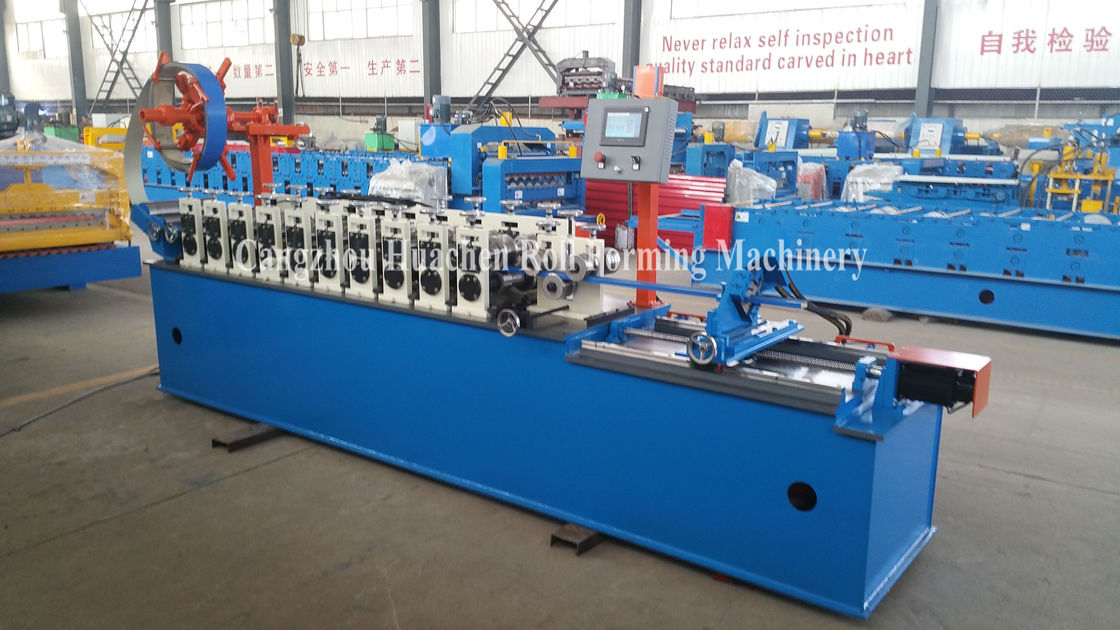

8.5kw Stud And Track Roll Forming Machine Plc 12 Rows

Large Image : 8.5kw Stud And Track Roll Forming Machine Plc 12 Rows

Product Details:

Place of Origin:	Botou Hebei China
Brand Name:	HC
Certification:	ISO
Model Number:	HC35

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	12000-38000
Packaging Details:	Main machine is nude,the computer control box is packed by carton box
Delivery Time:	30days
Payment Terms:	30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability:	20 sets/month

Contact Now

8.5kw Stud And Track Roll Forming Machine Plc 12 Rows

Description

Usage:	Stud And Track	Type:	Cold Roll Forming Machine
Thickness:	0.5-1mm	Capacity:	45m/min
Power:	5.5+3kw	Thickness Of The Plate:	0.3-0.6 Mm
Highlight:	8.5kw stud and track roll forming machine , stud and track roll forming machine plc , 12 rows stud roll former

Fast Speed two in One Roof Ceiling Batten Roll Forming Machine with 45m/min

Quick Detail:

1. Suitable to process: Color steel plate

2. Width of the plate:100/85mm

3. Rollers: 12 rows

4. Dimensions: 4.5*1.15*1.51m

5. Power: 5.5+3kw

6. Rolling material: Cr12

7. Thickness of the plate:0.3-0.6mm

8. Voltage: 380V 50Hz 3phases

9. Material of the cutting plate: Cr12

10. Hydraulic: 40#

11. Processing precision: Within 1.00mm

12. Control system: PLC control

8.5kw Stud And Track Roll Forming Machine Plc 12 Rows 0

Fast Speed two in One Roof Ceiling Batten Roll Forming Machine with 45m/min Description:

Fast Speed two in One Roof Ceiling Batten Roll Forming Machine with 45m/min Main parameter

No.	Drywall Metal Stud and Track Cold Roll Forming Machine with ISO
1	Suitable to process	Color steel plate
2	Width of the plate	175 mm
3	Rollers	12 rows
4	Dimensions	450011501510mm
5	Power	5.5+3kw
6	Rolling material	shaft bearing steel(quenching)
7	Thickness of the plate	0.3-0.6 mm
8	Productivity	45m/min
9	Diameter of the roller	Φ50mm
10	Voltage	380V 50Hz 3phases
11	Material of the cutting plate	Cr12
12	Hydraulic	40#
13	Processing precision	Within 1.00mm
14	Control system	PLC control

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting

Technical parameters:

1	Name of commodity & specification	XN- stud and track roll forming machine
2	Main motor power	3kw, 3 phase
3	Hydraulic motor power	3kw
4	Hydraulic Pressure	10-12MPa
5	Voltage	380V /3phase/ 50 HZ (or as your requirement)
6	Control System	PLC Delta Inverter
7	Main Frame	300mm H-Beam
8	Backboard Thickness	14mm
9	Chain Size	20mm
10	Feeding Material	color steel coils
11	Feeding Thickness	0.3-1.2mm

12	Productivity	8-12m/min
13	Roll Station	11
14	Roller Diameter	70mm
15	Roller material	45# steel
16	Cutter material	Cr12 , quenched
17	Cr-Plating Size	0.05mm
18	Overall Size	3000×800×1000mm
19	Total Weight	2T
20	Components	Manual Uncoiler-------------------1 set Guiding Platform------------------1 set Coil Strip Leveler------------------1 set Main Machine of Roll Forming------1 set Electric-Motor---------------------1 set Cutting Device--------------------1 set Hydraulic Station------------------1 set PLC Control-----------------------1 set Supporter Table-------------------1 set








21	Workflow	Manual decoiling----feeding and guiding----roll forming----cut to length----run out table

22	Package	nude in the container
23	Minimum order quantity	1 set
24	Payment terms	T/T(30% T/T pay in advance, the remaining 70% pay before ship)

25	Delivery time	30 working days later after receiving the deposit

Competitive Advantage

1. elegant appearance

2. high quality steel structure

3. One year free guarantee

4. lifelong maintain

5. Panasonic PLC

8.5kw Stud And Track Roll Forming Machine Plc 12 Rows 1
