Product Details:
|
Type: | Shutter Door Roll Forming Machine | Capacity: | 8-10m/min |
---|---|---|---|
Material: | PPGI GI | Power: | 4+4KW |
Worker: | 1 Only | Spare Parts: | Free |
High Light: | roll forming machinery,door frame roll forming machine |

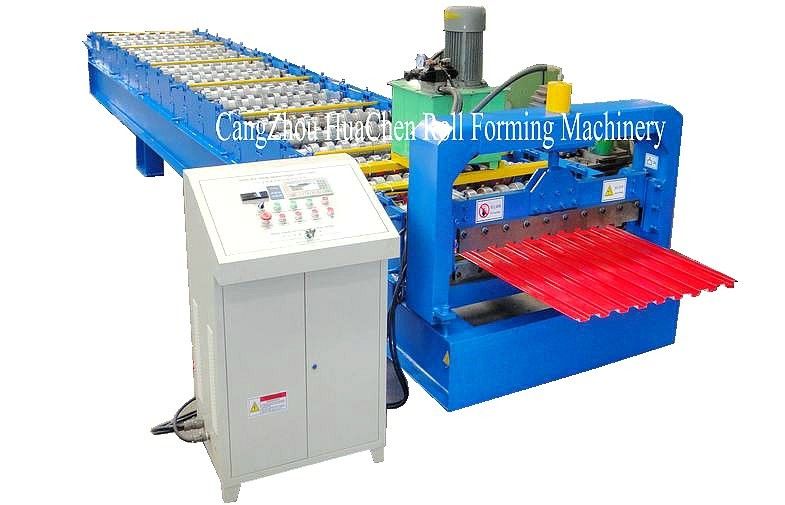

Garage Steel Roller Door Roll Forming Machine , High Capacity
Being counted amongst the most prominent entities of the market, we are engaged in offering a best quality range of Garage Steel Roller Shutter Door Roll Forming Machine which finds application in production of false ceiling section profiles, cable trays and DIN rails. The offered roll forming roofing product is valued for easy usage, high strength, corrosion & thermal resistance and easy installation. This Garage Steel Roller Shutter Door Roll Forming Machine is manufactured at our state-of-the-art manufacturing unit using high grade raw materials and cutting-edge technology in line with global set industry norms.
Quick Detail of Garage Steel Roller Shutter Door Roll Forming Machine
1. Suitable to process: Color steel plate
2. Width of the plate: 1000mm
3. Rollers: 18rows
4. Dimensions: 8.6*1.45*1.51m
5. Power: 3+3kw
6. Rolling material: 45# steel(plated chrome on surface)
7. Thickness of the plate:0.3-0.6mm
8. Voltage: 380V 50Hz 3phases
9. Material of the cutting plate: Cr12
10. Hydraulic: 40#
11. Processing precision: Within 1.00mm
12. Control system: PLC control
Description of Garage Steel Roller Shutter Door Roll Forming Machine
Garage Steel Roller Shutter Door Roll Forming Machine Main parameter
No. |
Garage Steel Roller Shutter Door Roll Forming Machine |
|
1 |
Suitable to process |
Color steel plate |
2 |
Width of the plate |
1000mm |
3 |
Rollers |
18 rows |
4 |
Dimensions |
8600*1450*1510mm |
5 |
Power |
3+3kw |
6 |
Rolling material |
45# steel(plated chrome on surface) |
6 |
Thickness of the plate |
0.6mm |
7 |
Productivity |
20m/min |
8 |
Diameter of the roller |
Φ66 mm |
9 |
Voltage |
380V 50Hz 3phases |
10 |
Material of the cutting plate |
Cr12 |
11 |
Hydraulic |
40# |
12 |
Processing precision |
Within 1.00mm |
13 |
Control system |
PLC control |
Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting
Application

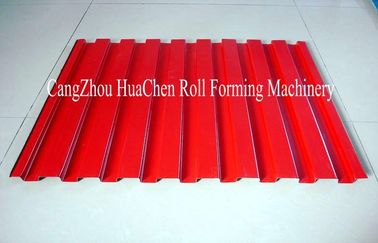

This type of sheet can be widely used as the door of garage, storage and supermarket.
Why choose Huachen ?
1. Q: Do you have after sales support?
A: Yes, we are happy to give advice on machine operating and maintenance. we also have skilled technicians available abroad to help you.We need your machines running in order to keep your business running.
2. Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly .We need to make gress to move forward.
3. Q: How does your factory do regarding quality control?
A: Quality is priority.To all Huachen people,the concept "Control every process and perfect all products" is curved in mind. Every product will be fully assembled and carefully tested before it's packed for shipment.
4. Q: Do you sell only standard machines?
A: No, most of our machines are designed according to customers specifications,we offer OEM service.
5. Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. welcome to come and check your machine after finished, or we will show you machine working video for confirm. Then delivery.
