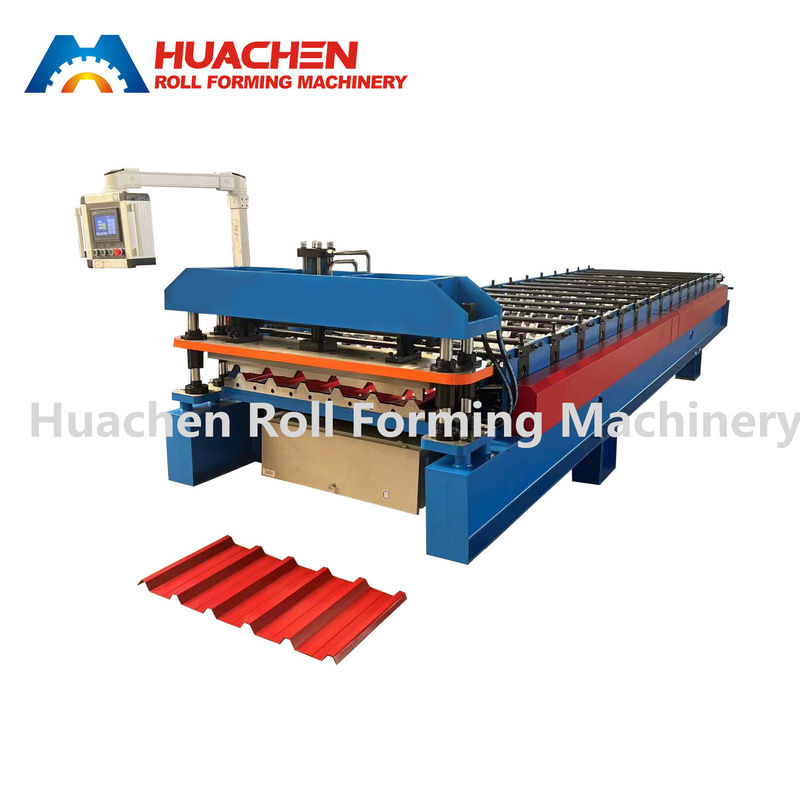

High Speed Step Tile Roof Roll Forming Machinery

Large Image : High Speed Step Tile Roof Roll Forming Machinery

Product Details:

Place of Origin:	CHINA
Brand Name:	HC
Certification:	CE
Model Number:	HC-32-195-1220

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Main machine is nude，The workbench is packed with plastic stretch film
Delivery Time:	20-30 work days
Payment Terms:	L/C,T/T
Supply Ability:	20set per month

Contact Now

High Speed Step Tile Roof Roll Forming Machinery

Description

Material Type:	PPGI/GI	Material Thickness:	0.3-0.6mm
Material Width:	1220mm	Roller Stations:	15Stations
Roller & Shaft Material:	45# Steel Quenching And Plating	Diameter Of Shaft:	Φ70mm
Cutter Material:	CR12	Drive Type:	Chain Drive
Speed:	15m/min	Total Power:	5.5+5.5KW
Voltage:	380v 50Hz 3phases

Product Description

The equipment has precise forming molds and advanced pressing technology, which can ensure that the pressed trapezoidal corrugated board has high dimensional accuracy, regular shape and smooth surface. At the same time, it can also effectively control the height, spacing and other parameters of the corrugation, making the product quality stable and reliable, meeting the high standards of the construction industry.

Main Technical Parameters

Material	Type	PPGI/GI
	Thickness	0.3-0.6mm
	Width	1220mm
Roller Stations		15Stations
Roller & Shaft Material		45# Steel Quenching and Plating
Diameter of Shaft		Φ70mm
Cutter Material		CR12
Drive Type		Chain Drive
Speed		15m/min
Total Power		5.5+5.5KW
Voltage		380V 50Hz 3Phases

Working Flow
Decoiling → Material Feeding → Roll Forming → Cutting → Collecting

Component & Technical Parameters

This part is used to support Coil.
And make the coil in a rotary way.
Bearing capacity: 5T
Inner diameter: 470-530mm

Uncoilers play an indispensable role in the production process of tile presses. In the production process of tile presses, metal sheets are usually supplied in the form of coils, and the primary function of the uncoiler is to smoothly and steadily unwind these tightly wound metal sheets.

Hydraulic Pump Station

When the equipment encounters abnormal resistance or excessive pressure, it can automatically adjust the pressure of the hydraulic system to avoid damage to the equipment due to overload, thereby improving the reliability and stability of the floor deck forming machine.

Touch Screen Control Cabinet

The control cabinet has two modes, automatic and manual modes.
The unit length of the targeted sheet and quantity can be set in the touchscreen.
The system is simple and easy to operate.

Feeding Table & Pre-Cutter

The feed table can be used as a temporary buffer and storage area, and can play a certain buffering role when the board supply speed is not completely consistent with the production speed of the tile press. For example, when the board supply is fast, the feed table can temporarily store some boards to avoid affecting the production process due to the accumulation of boards

Shaft & Roller

The wheels of the tile press usually refer to the forming rollers, which are the direct acting parts for processing the plate into trapezoidal tiles. The surface shape of these rollers is precisely processed according to the design requirements of the trapezoidal tiles. Through the gradual rolling of multiple rollers, the flat plate is gradually bent into the shape of a trapezoidal tile.

Pressing Section & Cutter

Fast and efficient cutting action can reduce the production time of a single tile, thereby improving the production efficiency of the entire tile press. The cutting speed of the cutter can usually be adjusted according to the operating speed of the tile press and the material of the board to achieve the best production rhythm.
