Product Description

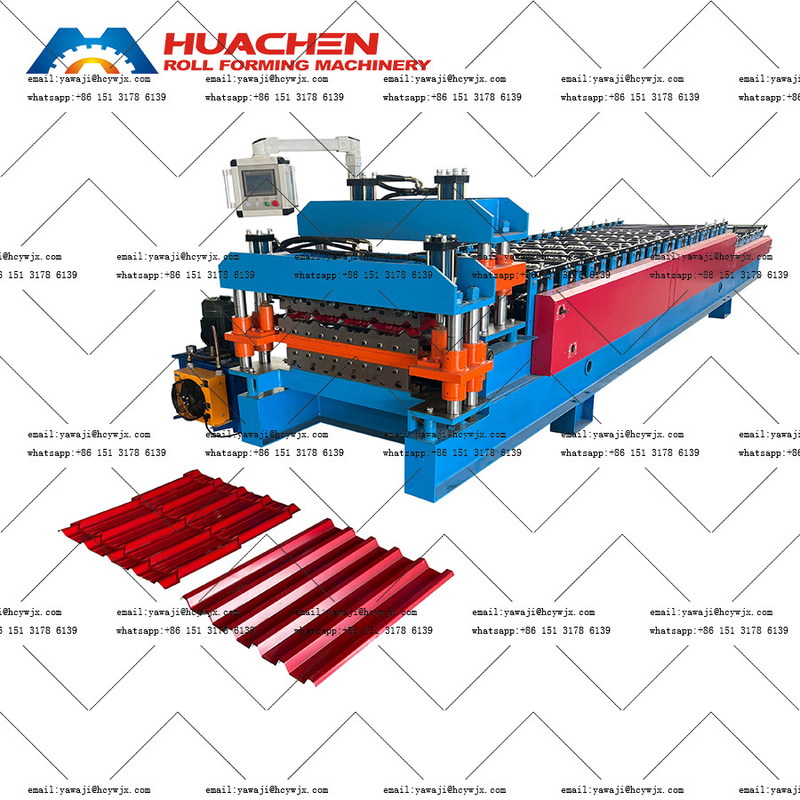

Double-layer design: It can produce two different specifications of tiles at the same time, such as the common 840 and 900 types. The output is nearly doubled compared to the traditional single-layer tile press, which can effectively shorten the production cycle and speed up the capital recovery.
High degree of automation: It adopts advanced automatic control systems, such as PLC computer control systems, to realize the automation and information management of the production process. The staff can complete the production in the control room, which reduces the labor intensity and improves the production efficiency and quality.
Main Technical Parameters
| Material |
Type |
PPGI/GI |
| Thickness |
0.3-0.6mm |
| Width |
1000mm |
| Roller Stations |
12/18Stations |
| Roller & Shaft Material |
45# Steel Quenching and Plating |
| Diameter of Shaft |
Φ70mm |
| Cutter Material |
CR12 |
| Drive Type |
Chain Drive |
| Speed |
15m/min |
| Total Power |
5.5+5.5KW |
| Voltage |
380V 50Hz 3Phases |
Working Flow
Decoiling → Material Feeding → Roll Forming → Cutting → Collecting
Component & Technical Parameters
This part is used to support Coil.
And make the coil in a rotary way.
Bearing capacity: 5T
Inner diameter: 470-530mm
In the production process of floor decking, metal sheets are usually supplied in the form of coils. The primary function of the uncoiler is to smoothly and steadily unwind these tightly wound metal sheets.
Hydraulic Pump Station
When the equipment encounters abnormal resistance or excessive pressure, it can automatically adjust the pressure of the hydraulic system to avoid damage to the equipment due to overload, thereby improving the reliability and stability of the floor deck forming machine.
Touch Screen Control Cabinet
The control cabinet has two modes, automatic and manual modes.
The unit length of the targeted sheet and quantity can be set in the touchscreen.
The system is simple and easy to operate.
The control cabinet can be interconnected with other equipment, such as working with the uncoiler, hydraulic pump station, etc., to ensure the efficient and stable operation of the entire floor decking forming machine system, providing a strong guarantee for the production of high-quality floor decking.
Feeding Table & Pre-Cutter
Provide support for the plate to be processed, so that the plate can be kept in a stable position before entering the forming machine of the tile press, prevent the plate from bending, deforming or falling due to its own weight, and ensure the smooth progress of the loading process
Shaft & Roller
During the tile pressing process, the shaft has to bear various loads such as pressure and friction between the roller and the plate. In particular, the solid shaft can withstand greater pressure, ensuring that when pressing plates of different thicknesses and materials, the equipment will not be affected by the deformation or damage of the shaft and affect production, thus ensuring the normal operation of the tile pressing machine and product quality.
Pressing Section & Cutter
The material of blade is CR12.
With high strength, better hardenability and good wear resistance.
According to production requirements, the pressed double-layer trapezoidal colored steel tiles are precisely cut to the set length, so that the colored steel tiles reach the specified size specifications, meet the use requirements of different construction projects, and ensure the smooth progress of construction.
