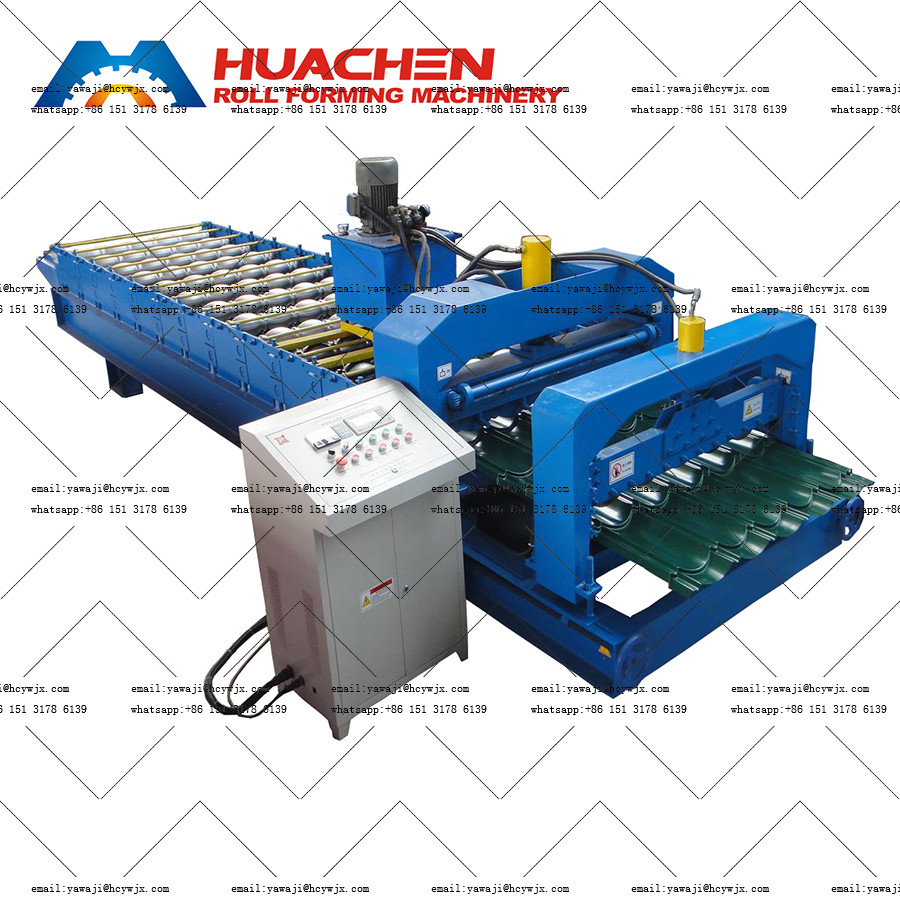

Product Details:
|
| Material Type: | PPGI/GI | Material Thickness: | 0.3-0.6mm |
|---|---|---|---|
| Material Width: | 1200mm | Roller Stations: | 12 Stations |
| Roller & Shaft Material: | 45# Steel Quenching And Plating | Diameter Of Shaft: | Φ70mm |
| Cutter Material: | CR12 | Drive Type: | Chain Drive |
| Speed: | 4m/min | Total Power: | 5.5+5.5KW |
| Voltage: | 380v 50Hz 3phases | ||
| Highlight: | Cold Roll Forming Glazed Tile Machine,Roofing Glazed Tile Roll Forming Machine |
||
Product Description
It can be applied to a variety of different materials, such as color steel plate, galvanized plate, aluminum plate, etc., to meet the needs of different customers for glazed tile materials and expand the application range of the product.
After being processed by the tile pressing machine, plates of different materials can show good performance and effects. For example, glazed tiles made of color steel plates have the characteristics of rich colors and corrosion resistance, while glazed tiles made of aluminum plates have the advantages of light weight and high strength.
Main Technical Parameters
| Material | Type | PPGI/GI |
| Thickness | 0.3-0.6mm | |
| Width | 1200mm | |
| Roller Stations | 12Stations | |
| Roller & Shaft Material | 45# Steel Quenching and Plating | |
| Diameter of Shaft | Φ70mm | |
| Cutter Material | CR12 | |
| Drive Type | Chain Drive | |
| Speed | 4m/min | |
| Total Power | 5.5+5.5KW | |
| Voltage | 380V 50Hz 3Phases | |
Working Flow
Decoiling → Material Feeding → Roll Forming → Cutting → Collecting
Component & Technical Parameters
This part is used to support Coil.
And make the coil in a rotary way.
Bearing capacity: 5T
Inner diameter: 470-530mm
In the production process of glazed tiles, metal sheets are usually supplied in the form of coils. The primary function of the uncoiler is to smoothly and steadily unwind these tightly wound metal sheets.
Hydraulic Pump Station
When the equipment encounters abnormal resistance or excessive pressure, it can automatically adjust the pressure of the hydraulic system to avoid damage to the equipment due to overload, thereby improving the reliability and stability of the floor deck forming machine.
Touch Screen Control Cabinet
The control cabinet has two modes, automatic and manual modes.
The unit length of the targeted sheet and quantity can be set in the touchscreen.
The system is simple and easy to operate.
Feeding Table & Pre-Cutter
The feed table provides operators with a convenient loading platform, allowing them to easily place metal sheets on the conveyor rack, reducing the difficulty of manual handling and adjustment and improving loading efficiency.
Shaft & Roller
In addition to the main rollers, the tile press may also be equipped with some auxiliary wheels, such as conveyor wheels. These conveyor wheels can help the plate to be smoothly transported in the equipment, cooperate with the movement of the rollers, ensure that the plate maintains the correct position and posture throughout the production process, and improve production efficiency and product quality.
Pressing Section & Cutter
The material of blade is CR12.
With high strength, better hardenability and good wear resistance.
According to production requirements, the continuously pressed glazed tile blanks are precisely cut to the set length to ensure that the length of each glazed tile meets the design standards and that the tiles can be accurately spliced during laying, thus maintaining the neatness and beauty of the roof.
After the equipment is shut down, the power supply and gas source (if any) should be turned off in time, and the debris and waste on the surface of the equipment and around it should be cleaned to keep the workplace clean.
