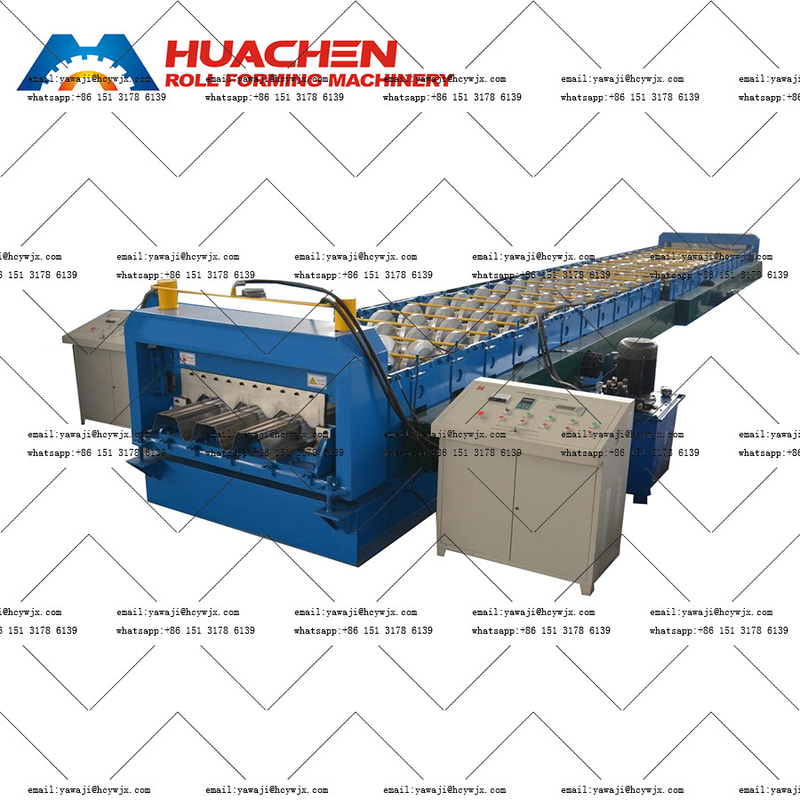

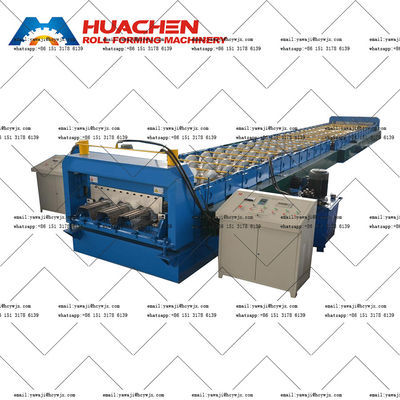

Product Description
The flattened sheet enters the forming area composed of multiple forming rollers. These rollers gradually cold-bend the sheet according to the pre-designed floor deck shape, gradually forming the required waveform, rib height and size.
Main Technical Parameters
| Material |
Type |
PPGI/GI |
| Thickness |
0.8-1.2mm |
| Width |
1250mm |
| Roller Stations |
24-28Stations |
| Roller & Shaft Material |
45# Steel Quenching and Plating |
| Diameter of Shaft |
Φ90mm |
| Cutter Material |
CR12 |
| Drive Type |
Chain Drive |
| Speed |
15m/min |
| Control System |
PLC Control |
| Total Power |
11+11+7.5KW |
| Voltage |
380V 50Hz 3Phases |
Working Flow
Decoiling → Material Feeding → Roll Forming → Cutting → Collecting
Component & Technical Parameters
his part is used to support Coil.
And make the coil in a rotary way.
Bearing capacity: 5T
Inner diameter: 470-530mm
(adjustable according to demand.)
In order to avoid damage to the machine by impact when the machine is running, we have installed a brake device for you.
Hydraulic Pump Station
The purpose of this pump station is to drive the cutter to start cutting works.
The hydraulic tank use 46# hydraulic oil.
Equipped with a cooling fan which can internal circulation cooling, to ensure the oil pump station will not be affected by high oil temperature during working.
Touch Screen Control Cabinet
The control cabinet has two modes, automatic and manual modes.
The unit length of the targeted sheet and quantity can be set in the touchscreen.
The system is simple and easy to operate.
Output Table
This part is used to collect the formed products.
The bracket is equipped with rollers to facilitate the product forwarding without being scratched.
Feeding Table
Guide the coil come into the correct position and passed to the roll forming machine.
Shaft & Roller
Material is 45# Steel Quenching and Plating.
The processed rollers are smooth, hard and will not rust.
Will not leave any scratches on the sheet when working.
Cutter
The material of blade is CR12.
With high strength, better hardenability and good wear resistance.
During the forming process, the equipment uses a precise control system to monitor and adjust the roller pressure, speed and sheet conveying speed in real time to ensure the forming accuracy and quality of the floor deck. Finally, the formed floor deck is cut to the set length by the cutting device to complete the entire production process.
