Product Description

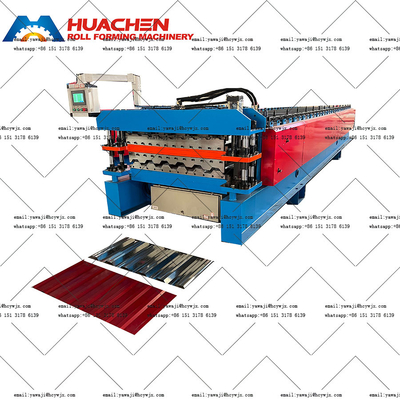

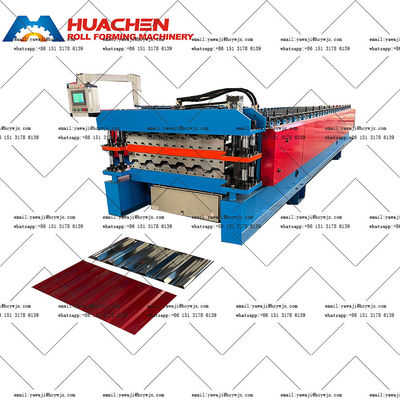

In the construction of residential roofs, the trapezoidal tiles produced by the double-layer trapezoidal tile pressing machine are an ideal roofing material. Its shape design is conducive to the rapid sliding of rainwater and avoids water accumulation. It also has a beautiful appearance and can enhance the overall aesthetics of the house. For example, in European-style villa buildings, the use of this trapezoidal tile can create a romantic and elegant architectural appearance.
Main Technical Parameters
| Material |
Type |
PPGI/GI |
| Thickness |
0.3-0.6mm |
| Width |
1250mm |
| Roller Stations |
12/22 Stations |
| Roller & Shaft Material |
45# Steel Quenching and Plating |
| Diameter of Shaft |
Φ70mm |
| Cutter Material |
CR12 |
| Drive Type |
Chain Drive |
| Speed |
15m/min |
| Total Power |
5.5+5.5KW |
| Voltage |
380V 50Hz 3Phases |
Working Flow
Decoiling → Material Feeding → Roll Forming → Cutting → Collecting
Component & Technical Parameters
This part is used to support Coil.
And make the coil in a rotary way.
Bearing capacity: 5T
Inner diameter: 470-530mm
(adjustable according to demand.)
In order to avoid damage to the machine by impact when the machine is running, we have installed a brake device for you.
Hydraulic Pump Station
The purpose of this pump station is to drive the cutter to start cutting works.
The hydraulic tank use 46# hydraulic oil.
Equipped with a cooling fan which can internal circulation cooling, to ensure the oil pump station will not be affected by high oil temperature during working.
Solenoid valve brand: Huade
Touch Screen Control Cabinet
The control cabinet has two modes, automatic and manual modes.
The unit length of the targeted sheet and quantity can be set in the touchscreen.
The system is simple and easy to operate.
Electrical Component Brand:
1. VFD: Delta
2. Circuit breaker: Delixi
3. Contactor: Delixi
4. Relay: Xinling
5. PLC: Delta
6. Transformer: Delixi
Feeding Table & Pre-Cutter
Guide the coil come into the correct position and going to the roll forming part.
Also including a Hand Pull Cutting Device, it is convenient to pre-cut the coil when want to changing color or thickness.
Shaft & Roller
The material of blade is CR12.
After shaping, the metal is cut into individual slats of the required length. Precision cutting ensures uniformity in the final product.
For industrial buildings such as factories and warehouses, the tiles produced by double-layer trapezoidal tile pressing machines can provide reliable roof protection. Due to their good strength and stability, they can withstand large loads on industrial building roofs, such as equipment weight, snow weight, etc. At the same time, the corrosion resistance of the tiles can cope with chemical erosion in industrial environments.
