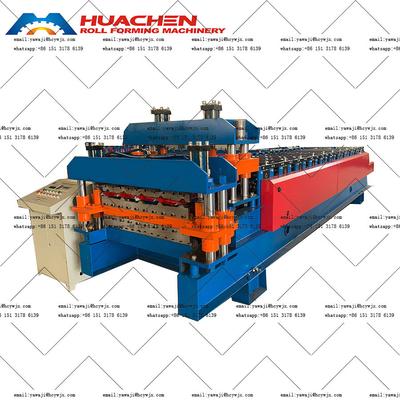

Chain Drive Double Deck Roll Forming Machine for PPGI / GI Material Material Type

The control cabinet has two modes, automatic and manual modes.
The unit length of the targeted sheet and quantity can be set in the touchscreen.
The system is simple and easy to operate.
Electrical Component Brand:
1. VFD: Delta
2. Circuit breaker: Delixi
3. Contactor: Delixi
4. Relay: Xinling
5. PLC: Delta
6. Transformer: Delixi

Feeding Table & Pre-Cutter



Guide the coil come into the correct position and going to the roll forming part.

Also including a Hand Pull Cutting Device, it is convenient to pre-cut the coil when want to changing color or thickness.

Shaft & Roller

Material is 45# Steel Quenching and Plating.

The processed rollers are smooth, hard and will not rust.

Will not leave any scratches on the sheet when working.

Pressing Section & Cutter


The material of blade is CR12.
After shaping, the metal is cut into individual slats of the required length. Precision cutting ensures uniformity in the final product.

The formed double-layer trapezoidal tile continues to be transported forward. When it reaches the set length, the shearing system drives the shearing tool to cut the trapezoidal tile from the plate according to the signal of the positioning device, and the finished double-layer trapezoidal tile is obtained. During the entire production process, the power and transmission system provides power for each working part and ensures the coordinated operation between them, while the control system accurately controls the entire process to achieve automated production.
