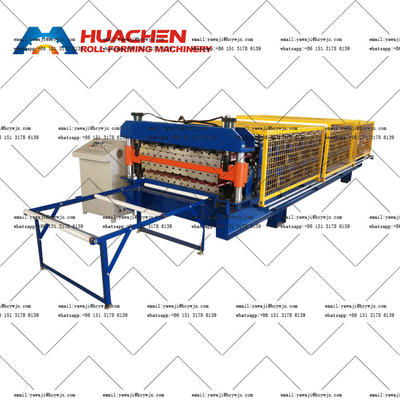

Product Description
When the sheet enters the upper forming mechanism, it passes through a series of rollers. These rollers are designed and arranged according to the shape and size requirements of the upper trapezoidal tile. Under the action of the rollers, the sheet is gradually bent and squeezed, and gradually forms the shape of the upper trapezoidal tile according to the contour of the rollers. During the forming process, the gap and pressure between the rollers can be precisely adjusted through the adjustment device to adapt to sheets of different thicknesses and materials, ensuring the forming accuracy and quality of the upper trapezoidal tile. For example, for thicker sheets, the gap and pressure between the rollers need to be appropriately increased, while for thinner sheets, the gap and pressure need to be reduced to avoid excessive deformation or damage of the sheet.
Main Technical Parameters
| Material |
Type |
PPGI/GI |
| Thickness |
0.3-0.6mm |
| Width |
1250mm |
| Roller Stations |
8/13Stations |
| Roller & Shaft Material |
45# Steel Quenching and Plating |
| Diameter of Shaft |
Φ70mm |
| Cutter Material |
CR12 |
| Drive Type |
Chain Drive |
| Speed |
15m/min |
| Total Power |
5.5+5.5KW |
| Voltage |
380V 50Hz 3Phases |
Working Flow
Decoiling → Material Feeding → Roll Forming → Cutting → Collecting
Component & Technical Parameters
This part is used to support Coil.
And make the coil in a rotary way.
Bearing capacity: 5T
Inner diameter: 470-530mm
(adjustable according to demand.)
In order to avoid damage to the machine by impact when the machine is running, we have installed a brake device for you.
Hydraulic Pump Station
The purpose of this pump station is to drive the cutter to start cutting works.
The hydraulic tank use 46# hydraulic oil.
Equipped with a cooling fan which can internal circulation cooling, to ensure the oil pump station will not be affected by high oil temperature during working.
Solenoid valve brand: Huade
Touch Screen Control Cabinet
The control cabinet has two modes, automatic and manual modes.
The unit length of the targeted sheet and quantity can be set in the touchscreen.
The system is simple and easy to operate.
Electrical Component Brand:
1. VFD: Delta
2. Circuit breaker: Delixi
3. Contactor: Delixi
4. Relay: Xinling
5. PLC: Delta
6. Transformer: Delixi
Feeding Table & Pre-Cutter
Guide the coil come into the correct position and going to the roll forming part.
Also including a Hand Pull Cutting Device, it is convenient to pre-cut the coil when want to changing color or thickness.
Shaft & Roller
Material is 45# Steel Quenching and Plating.
The processed rollers are smooth, hard and will not rust.
Will not leave any scratches on the sheet when working.
Pressing Section & Cutter
The material of blade is CR12.
After shaping, the metal is cut into individual slats of the required length. Precision cutting ensures uniformity in the final product.
