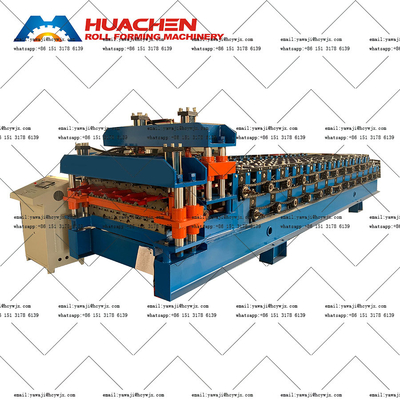

380v 50Hz 3 Phases Voltage Double Deck Roll Forming Machine With CR12 Cutter Material Made

Product Description

 Raw materials such as color-coated sheets or galvanized sheets are transported to the feed inlet platform through the unloading machine, and then enter the forming machine. In the forming machine, the sheets are rolled and formed by two layers of multi-row shafts, and two different types of color steel tiles can be produced at the same time, such as 840 and 900. After that, they are cut according to the set length by the forming shearing device to obtain the double-layer color steel tile finished product of the required size. The whole process is precisely controlled by the computer control system to achieve automated production.


Main Technical Parameters

Working Flow
Decoiling → Material Feeding → Roll Forming → Cutting → Collecting

Component & Technical Parameters


This part is used to support Coil.
And make the coil in a rotary way.
Bearing capacity: 5T
Inner diameter: 470-530mm
(adjustable according to demand.)
In order to avoid damage to the machine by impact when the machine is running, we have installed a brake device for you.

Hydraulic Pump Station


The purpose of this pump station is to drive the cutter to start cutting works.
The hydraulic tank use 46# hydraulic oil.
Equipped with a cooling fan which can internal circulation cooling, to ensure the oil pump station will not be affected by high oil temperature during working.
Solenoid valve brand: Huade

Touch Screen Control Cabinet

The control cabinet has two modes, automatic and manual modes.
The unit length of the targeted sheet and quantity can be set in the touchscreen.
The system is simple and easy to operate.
Electrical Component Brand:
1. VFD: Delta
2. Circuit breaker: Delixi
3. Contactor: Delixi
4. Relay: Xinling
5. PLC: Delta
6. Transformer: Delixi

Feeding Table & Pre-Cutter



Guide the coil come into the correct position and going to the roll forming part.

Also including a Hand Pull Cutting Device, it is convenient to pre-cut the coil when want to changing color or thickness.



Shaft & Roller



Material is 45# Steel Quenching and Plating.

The processed rollers are smooth, hard and will not rust.

Will not leave any scratches on the sheet when working.



Pressing Section & Cutter



The material of blade is CR12.
With high strength, better hardenability and good wear resistance.


Automatic control: It adopts a highly intelligent industrial electronic programmer PLC inverter control system, which is simple to operate, accurate and stable in performance. It can realize automatic control of a series of actions such as automatic feeding, roll forming, cutting, etc., reduce manual intervention, reduce labor intensity, and improve production efficiency and product quality.
