Product Description

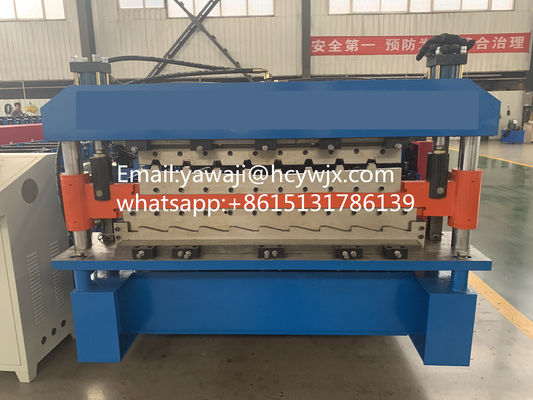

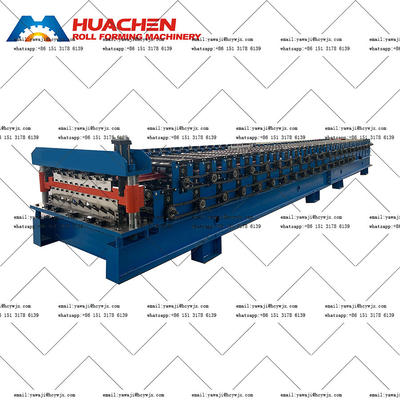

The double-layer tile pressing machine can press two layers of color steel tiles at the same time, and can produce more products in the same time compared to the traditional single-layer tile pressing machine. For example, when a construction project urgently needs a large number of color steel tiles for roof and wall laying, the double-layer tile pressing machine can quickly meet the demand and effectively shorten the production cycle.
Its continuous production process can reduce the number of machine starts and stops, further improving the overall work efficiency. In addition, the equipment has a fast molding speed, and the plate output speed is generally 6-12 meters/minute. Some high-performance equipment can reach 12-15 meters/minute, which means that color steel tiles of sufficient length can be produced in a short time
Main Technical Parameters
| Material |
Type |
PPGI/GI |
| Thickness |
0.3-0.6mm |
| Width |
1250mm |
| Roller Stations |
18/23Stations |
| Roller & Shaft Material |
45# Steel Quenching and Plating |
| Diameter of Shaft |
Φ70mm |
| Cutter Material |
CR12 |
| Drive Type |
Chain Drive |
| Speed |
15m/min |
| Total Power |
5.5+5.5KW |
| Voltage |
380V 50Hz 3Phases |
Working Flow
Decoiling → Material Feeding → Roll Forming → Cutting → Collecting
Component & Technical Parameters
This part is used to support Coil.
And make the coil in a rotary way.
Bearing capacity: 5T
Inner diameter: 470-530mm
(adjustable according to demand.)
In order to avoid damage to the machine by impact when the machine is running, we have installed a brake device for you.
Hydraulic Pump Station
The purpose of this pump station is to drive the cutter to start cutting works.
The hydraulic tank use 46# hydraulic oil.
Equipped with a cooling fan which can internal circulation cooling, to ensure the oil pump station will not be affected by high oil temperature during working.
Solenoid valve brand: Huade
Touch Screen Control Cabinet
The control cabinet has two modes, automatic and manual modes.
The unit length of the targeted sheet and quantity can be set in the touchscreen.
The system is simple and easy to operate.
Electrical Component Brand:
1. VFD: Delta
2. Circuit breaker: Delixi
3. Contactor: Delixi
4. Relay: Xinling
5. PLC: Delta
6. Transformer: Delixi
Feeding Table & Pre-Cutter
Guide the coil come into the correct position and going to the roll forming part.
Also including a Hand Pull Cutting Device, it is convenient to pre-cut the coil when want to changing color or thickness.
Shaft & Roller
Material is 45# Steel Quenching and Plating.
The processed rollers are smooth, hard and will not rust.
Will not leave any scratches on the sheet when working.
Pressing Section & Cutter
The material of blade is CR12.
With high strength, better hardenability and good wear resistance.
