Product Details:
|
| Material Type: | PPGI/GI | Material Thickness: | 0.3-0.6mm |
|---|---|---|---|
| Material Width: | 1200mm | Roller Stations: | 13Stations |
| Roller & Shaft Material: | 45# Steel Quenching And Plating | Diameter Of Shaft: | Φ70mm |
| Cutter Material: | CR12 | Drive Type: | Chain Drive |
| Speed: | 15m/min | Total Power: | 5.5+5.5KW |
| Voltage: | 380v 50Hz 3phases | ||
| Highlight: | 15m/min Roll Forming Machine,1200mm Width Roll Forming Machine,Large Roof Roll Forming Machine |
||
Product Description

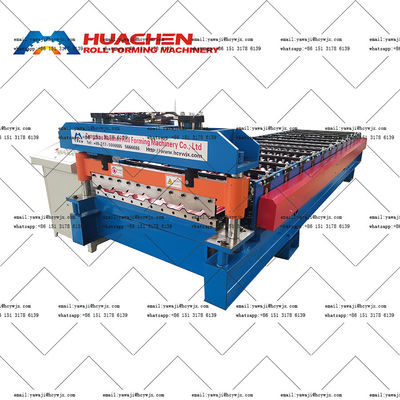

The rolled color steel sheet is placed on the feed rack and enters the roller assembly through the feed guide device. The motor drives the chain transmission to rotate the upper and lower rollers, and the color steel sheet is subjected to cold bending forming processing one by one, gradually forming the shape of a trapezoidal single plate. The formed sheet continues to move forward and reaches the post-forming shearing part. According to the set length, the hydraulic shearing device or mechanical shearing device is controlled by the PLC control system to accurately cut it to obtain the required length of the trapezoidal single plate color steel sheet.
Main Technical Parameters
| Material | Type | PPGI/GI |
| Thickness | 0.3-0.6mm | |
| Width | 1200mm | |
| Roller Stations | 13/Stations | |
| Roller & Shaft Material | 45# Steel Quenching and Plating | |
| Diameter of Shaft | Φ70mm | |
| Cutter Material | CR12 | |
| Drive Type | Chain Drive | |
| Speed | 18m/min | |
| Total Power | 5.5+5.5KW | |
| Voltage | 380V 50Hz 3Phases | |
Working Flow
Decoiling → Material Feeding → Roll Forming → Cutting → Collecting
Component & Technical Parameters
This part is used to support Coil.
And make the coil in a rotary way.
Bearing capacity: 5T
Inner diameter: 470-530mm
(adjustable according to demand.)
In order to avoid damage to the machine by impact when the machine is running, we have installed a brake device for you.
Hydraulic Pump Station
The purpose of this pump station is to drive the cutter to start cutting works.
The hydraulic tank use 46# hydraulic oil.
Equipped with a cooling fan which can internal circulation cooling, to ensure the oil pump station will not be affected by high oil temperature during working.
Solenoid valve brand: Huade
Touch Screen Control Cabinet
The control cabinet has two modes, automatic and manual modes.
The unit length of the targeted sheet and quantity can be set in the touchscreen.
The system is simple and easy to operate.
Electrical Component Brand:
1. VFD: Delta
2. Circuit breaker: Delixi
3. Contactor: Delixi
4. Relay: Xinling
5. PLC: Delta
6. Transformer: Delixi
Feeding Table & Pre-Cutter
Guide the coil come into the correct position and going to the roll forming part.
Also including a Hand Pull Cutting Device, it is convenient to pre-cut the coil when want to changing color or thickness.
Shaft & Roller
Material is 45# Steel Quenching and Plating.
The processed rollers are smooth, hard and will not rust.
Will not leave any scratches on the sheet when working.
Pressing Section & Cutter
The material of blade is CR12.
With high strength, better hardenability and good wear resistance.
Equipped with a user-friendly operating interface, such as a touch screen or digital display, the staff can master the operation method after simple training, which is convenient for parameter setting, equipment debugging and daily production operation
The structural design of the equipment is reasonable, and each component is easy to disassemble and install, which is convenient for daily cleaning, maintenance and repair; at the same time, the molds of some glazed tile pressing machines are made of special steel, which is strong and durable, reducing the need for frequent replacement and repair due to mold damage.
