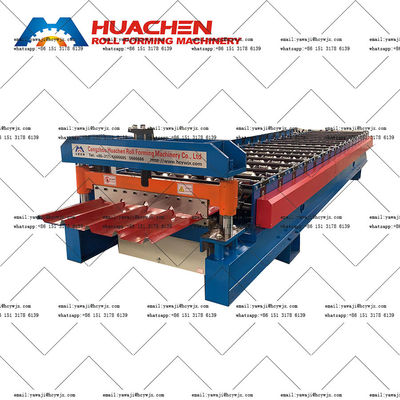

Product Details:
|
| Material Thickness: | 0.3-0.6mm | Material Width: | 1220mm |
|---|---|---|---|
| Roller Stations: | 18Stations | Roller & Shaft Material: | 45# Steel Quenching And Plating |
| Diameter Of Shaft: | Φ70mm | Cutter Material: | CR12 |
| Drive Type: | Chain Drive | Speed: | 15m/min |
| Total Power: | 5.5+5.5KW | Voltage: | 380v 50Hz 3phases |
| Highlight: | Chain Drive Roof Roll Forming Machinery,Iron Sheet Roof Roll Forming Machinery,1220mm Metal Sheet Roll Forming Machine |
||
Product Description
Galvanized steel plates, colored steel plates or aluminum plates can be used as raw materials. The glazed tile products produced are widely used in building exterior roof panels and wall panels of houses as well as interior decorative panels or ceilings, etc., to increase the beauty and durability of the building.
Main Technical Parameters
| Material | Type | PPGI/GI |
| Thickness | 0.3-0.6mm | |
| Width | 1220mm | |
| Roller Stations | 18/Stations | |
| Roller & Shaft Material | 45# Steel Quenching and Plating | |
| Diameter of Shaft | Φ70mm | |
| Cutter Material | CR12 | |
| Drive Type | Chain Drive | |
| Speed | 18m/min | |
| Total Power | 5.5+5.5KW | |
| Voltage | 380V 50Hz 3Phases | |
Working Flow
Decoiling → Material Feeding → Roll Forming → Cutting → Collecting
Component & Technical Parameters
This part is used to support Coil.
And make the coil in a rotary way.
Bearing capacity: 5T
Inner diameter: 470-530mm
(adjustable according to demand.)
In order to avoid damage to the machine by impact when the machine is running, we have installed a brake device for you.
Hydraulic Pump Station
1.Automatic working
2.Hydraulic expansion
3.With press arm to keep the coil from loosing
4.With braking system and speed sensor to match the speed with other machines
Touch Screen Control Cabinet
The control cabinet has two modes, automatic and manual modes.
The unit length of the targeted sheet and quantity can be set in the touchscreen.
The system is simple and easy to operate.
Electrical Component Brand:
1. VFD: Delta
2. Circuit breaker: Delixi
3. Contactor: Delixi
4. Relay: Xinling
5. PLC: Delta
6. Transformer: Delixi
Feeding Table & Pre-Cutter
Guide the coil come into the correct position and going to the roll forming part.
Also including a Hand Pull Cutting Device, it is convenient to pre-cut the coil when want to changing color or thickness.
Shaft & Roller
Material is 45# Steel Quenching and Plating.
The processed rollers are smooth, hard and will not rust.
Will not leave any scratches on the sheet when working.
Pressing Section & Cutter
The material of blade is CR12.
With high strength, better hardenability and good wear resistance.
The machine body has a solid structure, welded with high-quality materials such as channel steel and steel plates. The middle plate connection adopts reinforced structures such as cast steel pull plates to ensure that the machine is stable and does not deform during operation. The transmission bearing adopts high-speed double-sealed bearings, which are maintenance-free and extend the service life of the machine.
