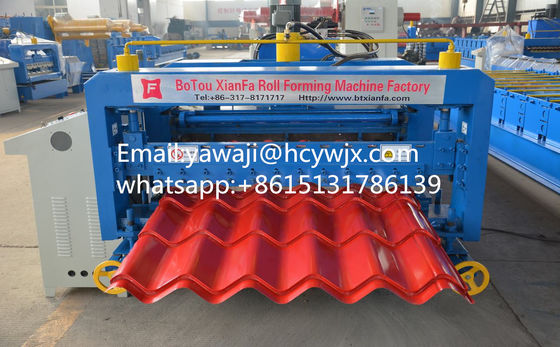

Product Details:
|
| Material Type: | PPGI/GI | MaterialThickness: | 0.3-0.6mm |
|---|---|---|---|
| Material Width: | 1220mm | Roller Stations: | 18Stations |
| Roller & Shaft Materia: | 45# Steel Quenching And Plating | Diameter Of Shaf: | Φ70mm |
| Cutter Material: | CR12 | Drive Type: | Chain Drive |
| Speed: | 15m/min | Total Power: | 5.5+5.5KW |
| Voltage: | 380v 50Hz 3phases | ||
| Highlight: | Efficient Glazed Tile Roll Forming Machine,Popular Glazed Tile Roll Forming Machine,Popular Glazed Tile Roll Former |
||

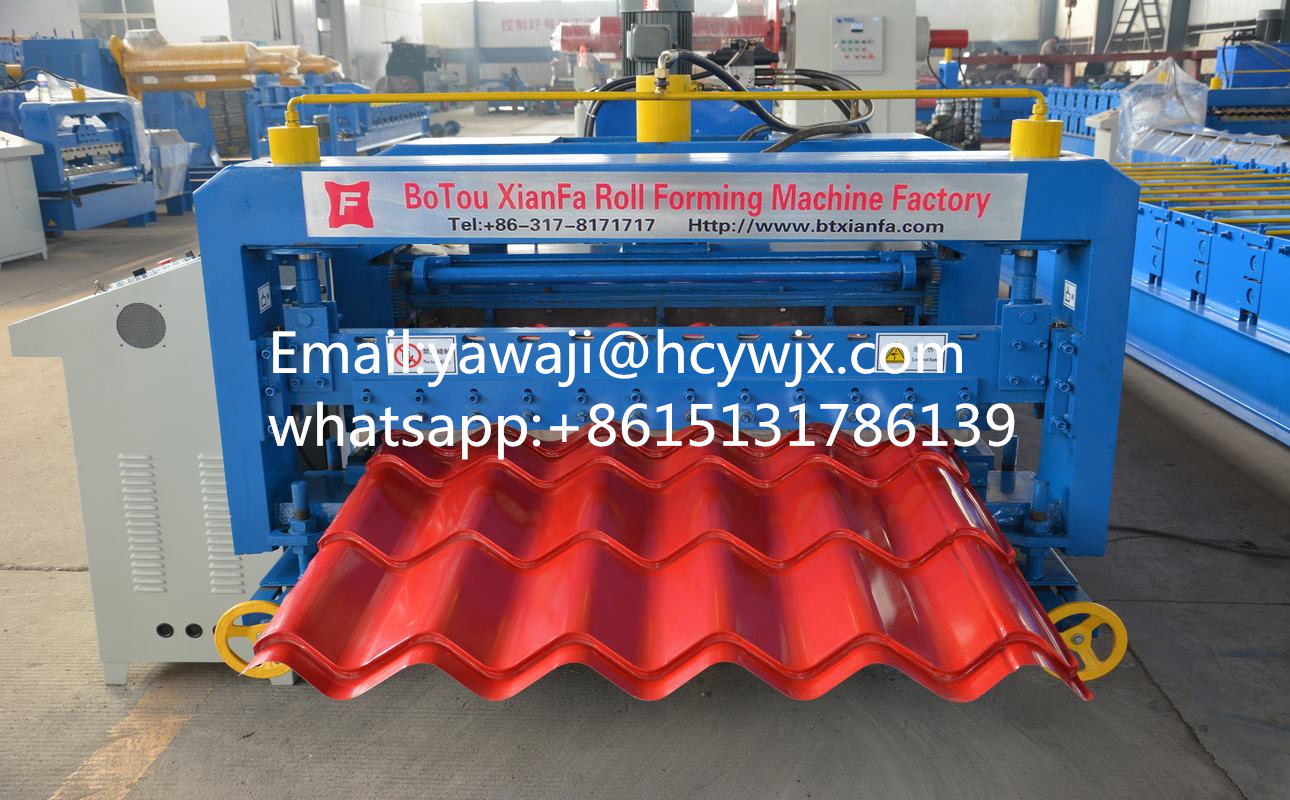

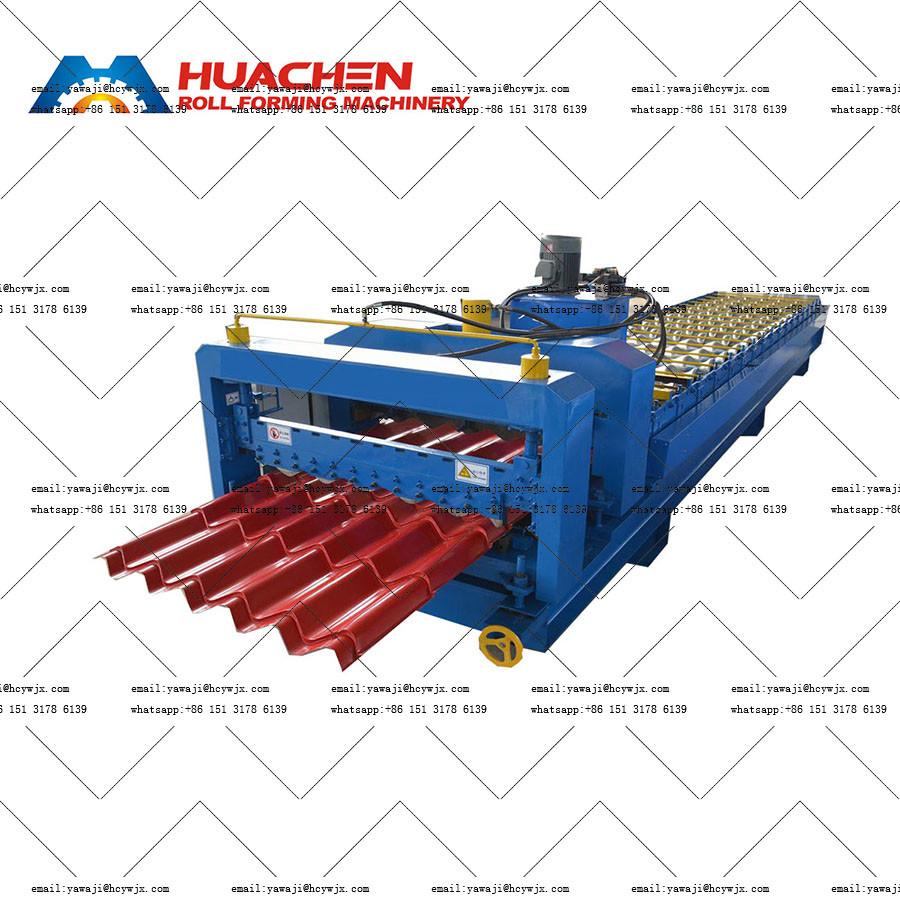

Product Description

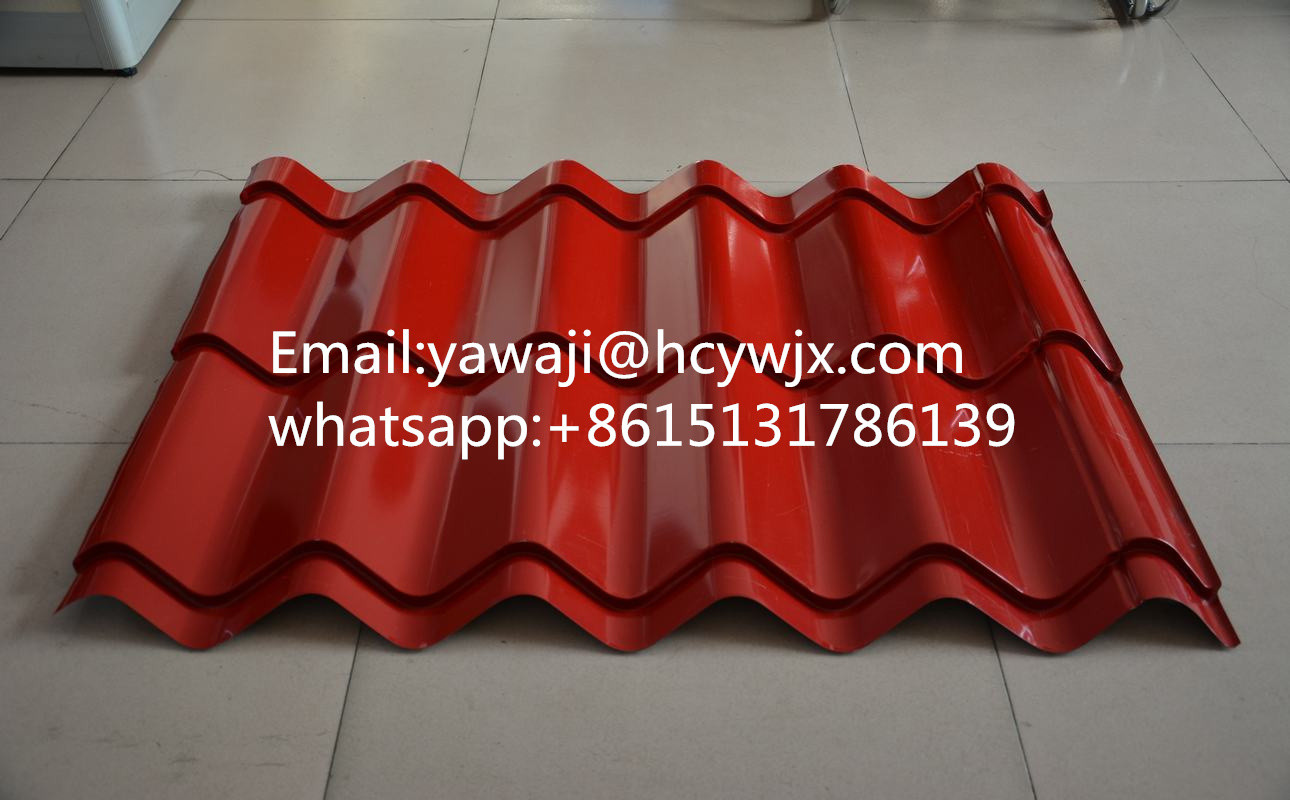

It has a high degree of automation and can operate continuously. Compared with traditional manual or semi-manual production methods, it greatly improves the production efficiency of glazed tiles. For example, some advanced models can produce a large number of glazed tiles per hour, which can meet the needs of large-scale projects..
Working Flow
Decoiling → Material Feeding → Roll Forming → Cutting → Collecting
Main Technical Parameters
| Material | Type | PPGI/GI |
| Thickness | 0.3-0.6mm | |
| Width | 1220mm | |
| Roller Stations | 18Stations | |
| Roller & Shaft Material | 45# Steel Quenching and Plating | |
| Diameter of Shaft | Φ70mm | |
| Cutter Material | CR12 | |
| Drive Type | Chain Drive | |
| Speed | 2-4m/min | |
| Total Power | 5.5+5.5KW | |
| Voltage | 380V 50Hz 3Phases | |
5T Manual Decoiler
This part is used to support Coil.
And make the coil in a rotary way.
Bearing capacity: 5T
Inner diameter: 470-530mm
(adjustable according to demand.)
In order to avoid damage to the machine by impact when the machine is running, we have installed a brake device for you.
Shaft & Roller
Material is 45# Steel Quenching and Plating.
The processed rollers are smooth, hard and will not rust.
Will not leave any scratches on the sheet when working.
The material of blade is CR12.
With high strength, better hardenability and good wear resistance.
The hydraulic cylinder drives the cutter to move up and down. When the glazed tile is formed to the set length, the cutter moves to cut the colored steel tile to obtain the finished glazed tile of the required length.
Hydraulic Pump Station
The purpose of this pump station is to drive the cutter to start cutting works.
The hydraulic tank use 46# hydraulic oil.
Equipped with a cooling fan which can internal circulation cooling, to ensure the oil pump station will not be affected by high oil temperature during working.
Solenoid valve brand: Huade
Touch Screen Control Cabinet
The control cabinet has two modes, automatic and manual modes.
The unit length of the targeted sheet and quantity can be set in the touchscreen.
The system is simple and easy to operate.
Electrical Component Brand:
1. VFD: Delta
2. Circuit breaker: Delixi
3. Contactor: Delixi
4. Relay: Xinling
5. PLC: Delta
6. Transformer: Delixi
The equipment has a reasonable structural design, and the disassembly, assembly and maintenance of each component are relatively convenient. In addition, common parts are easily available on the market, which reduces maintenance costs and repair difficulties, and reduces equipment downtime.
