Product Details:
|
| Material Type: | PPGI/GI | Material Thickness: | 0.3-0.6mm |
|---|---|---|---|
| MaterialWidth: | 1000mm | Roller Stations: | 14Stations |
| Roller & Shaft Material: | 45# Steel Quenching And Plating | Diameter Of Shaft: | Φ70mm |
| Drive Type: | Chain Drive | Speed: | 4m/min |
| Total Power: | 5.5+5.5KW | Voltage: | 380v 50Hz 3phases |
| Highlight: | Wall Roof Tile Roll Forming Machinery,0.3mm Roof Tile Roll Forming Machine,0.6mm Roof Tile Roll Forming Machine |
||
Product Description

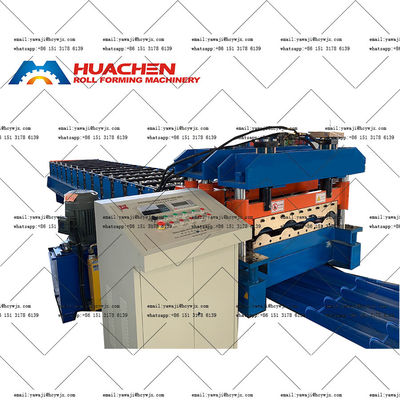

The colored steel plate first enters the roller forming part, and under the action of the roller driven by the motor and chain, it gradually bends and deforms to form a rough tile-shaped outline. Then it enters the pressing part, where the hydraulic cylinder drives the mold to apply pressure to the initially formed plate, making it fit the shape of the glazed tile more closely, forming clear corrugations and textures. Finally, when the set length is reached, the hydraulic cylinder in the cutter part drives the tool to move, cut off the colored steel tile, and complete the production of a glazed tile. The whole process is completed automatically under the precise coordination of the control system.
Working Flow
Decoiling → Material Feeding → Roll Forming → Cutting → Collecting
Main Technical Parameters
| Material | Type | PPGI/GI |
| Thickness | 0.3-0.6mm | |
| Width | 1000mm | |
| Roller Stations | 14Stations | |
| Roller & Shaft Material | 45# Steel Quenching and Plating | |
| Diameter of Shaft | Φ70mm | |
| Cutter Material | CR12 | |
| Drive Type | Chain Drive | |
| Speed | 2-4m/min | |
| Total Power | 5.5+5.5KW | |
| Voltage | 380V 50Hz 3Phases | |
5T Manual Decoiler
This part is used to support Coil.
And make the coil in a rotary way.
Bearing capacity: 5T
Inner diameter: 470-530mm
(adjustable according to demand.)
In order to avoid damage to the machine by impact when the machine is running, we have installed a brake device for you.
Shaft & Roller
The processed rollers are smooth, hard and will not rust.
Will not leave any scratches on the sheet when working.
Hydraulic Pump Station
The purpose of this pump station is to drive the cutter to start cutting works.
The hydraulic tank use 46# hydraulic oil.
Equipped with a cooling fan which can internal circulation cooling, to ensure the oil pump station will not be affected by high oil temperature during working.
Solenoid valve brand: Huade
Touch Screen Control Cabinet
The control cabinet has two modes, automatic and manual modes.
The unit length of the targeted sheet and quantity can be set in the touchscreen.
The system is simple and easy to operate.
Electrical Component Brand:
1. VFD: Delta
2. Circuit breaker: Delixi
3. Contactor: Delixi
4. Relay: Xinling
5. PLC: Delta
6. Transformer: Delixi
Pressing Section & Cutter
The material of blade is CR12.
With high strength, better hardenability and good wear resistance.
Why Book With Us?
1.We have 20 years of experience in production and sales of tile presses
2.We know the commonly used tile types in each region and can recommend them to customers
3.We have an excellent design and production team that can design and manufacture according to customer needs.
4.We have our own company and welcome customers at any time
5.We can help you contact the shipping company and we can also deliver to your door if you need.
