Product Description

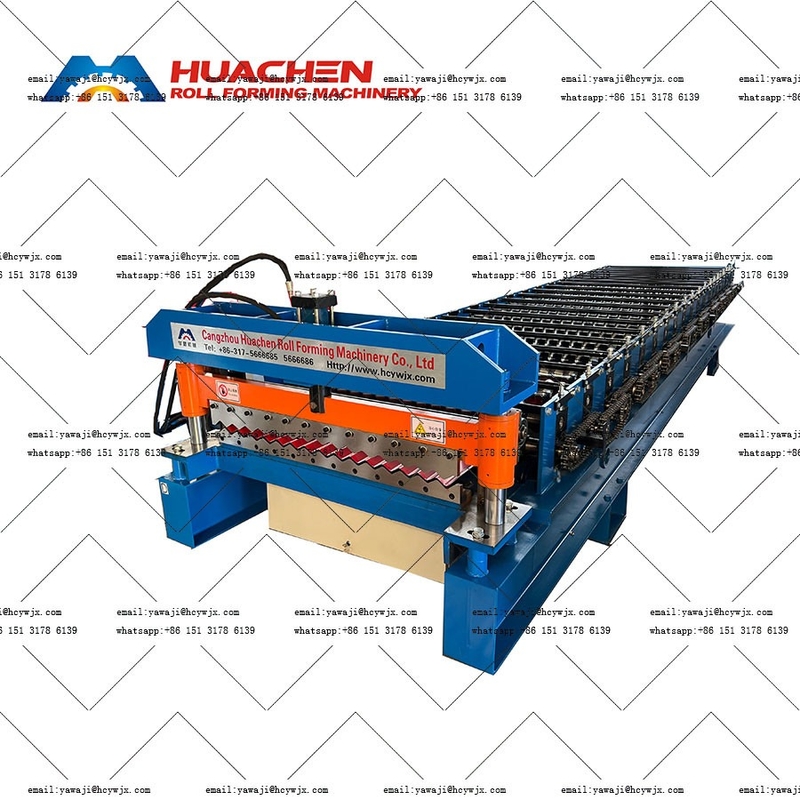

Arc tile forming machine is a kind of equipment specially used to process metal sheets into arc-shaped tiles. It is widely used in the decoration and construction of various building roofs and walls, giving the building a unique appearance and good structural performance.
Working Flow
Decoiling → Material Feeding → Roll Forming → Cutting → Collecting
Main Technical Parameters
| Material |
Type |
PPGI/GI |
| Thickness |
0.3-0.6mm |
| Width |
1220mm |
| Roller Stations |
20Stations |
| Roller & Shaft Material |
45# Steel Quenching and Plating |
| Diameter of Shaft |
Φ70mm |
| Cutter Material |
CR12 |
| Drive Type |
Chain Drive |
| Speed |
15-20m/min |
| Total Power |
4+4KW |
| Voltage |
220V 60Hz 3Phases |
Component & Technical Parameters
5T Manual Decoiler
This part is used to support Coil.
And make the coil in a rotary way.
Bearing capacity: 5T
Inner diameter: 470-530mm
(adjustable according to demand.)
In order to avoid damage to the machine by impact when the machine is running, we have installed a brake device for you.
Feeding Table & Pre-Cutter
Guide the coil come into the correct position and going to the roll forming part.
Also including a Hand Pull Cutting Device, it is convenient to pre-cut the coil when want to changing color or thickness.
Shaft & Roller
Material is 45# Steel Quenching and Plating.
The processed rollers are smooth, hard and will not rust.
Will not leave any scratches on the sheet when working.
Hydraulic Pump Station
The purpose of this pump station is to drive the cutter to start cutting works.
The hydraulic tank use 46# hydraulic oil.
Equipped with a cooling fan which can internal circulation cooling, to ensure the oil pump station will not be affected by high oil temperature during working.
Solenoid valve brand: Huade
Touch Screen Control Cabinet
The control cabinet has two modes, automatic and manual modes.
The unit length of the targeted sheet and quantity can be set in the touchscreen.
The system is simple and easy to operate.
Electrical Component Brand:
1. VFD: Delta
2. Circuit breaker: Delixi
3. Contactor: Delixi
4. Relay: Xinling
5. PLC: Delta
6. Transformer: Delixi
Pressing Section & Cutter
The material of blade is CR12.
With high strength, better hardenability and good wear resistance.
Working Principle
The metal coil is unrolled from the unwinding system and enters the forming machine through the feed guide platform.
In the forming machine, the plate passes through each roller in turn, and the roller applies a gradually changing pressure to the plate, so that it gradually bends into an arc shape according to a predetermined trajectory.
The formed arc tile moves forward with the operation of the main machine. When it reaches the preset length, the computer control cabinet sends a signal, and the hydraulic station drives the forming shearing device to cut the tile.
The cut arc tile is transported to the designated position to complete a production cycle, and this cycle is repeated to achieve continuous production.
