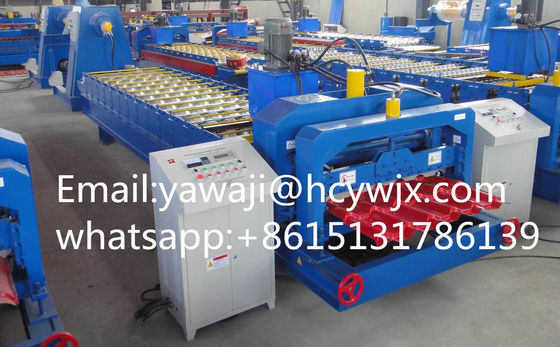

Product Details:
|
| Material Type: | PPGI/GI | Material Thickness: | 0.3-0.6mm |
|---|---|---|---|
| Material Width: | 1220mm | Roller Stations: | 15Stations |
| Roller & Shaft Material: | 45# Steel Quenching And Plating | Diameter Of Shaft: | Φ70mm |
| Cutter Material: | CR12 | Drive Type: | Chain Drive |
| Speed: | 15m/min | Total Power: | 5.5+5.5KW |
| Voltage: | 380v 50Hz 3phases | ||
| Highlight: | Glazed Steel Tile Roll Forming Machine,Hydraulic Glazed Tile Roll Forming Machine,Hydraulic Glazed Tile Forming Machine |
||
Product Description
The glazed tile forming machine conveys the raw materials to the feed guide device through the loading rack, and then enters the forming main machine. In the forming main machine, the raw materials are gradually pressed into the shape of glazed tiles under the pressure of the rollers and the action of the mold. Subsequently, the punching device punches the tiles to give them unique patterns and designs. Finally, the forming shearing device cuts the tiles into the required size, completing the forming process of the glazed tile.
Working Flow
Decoiling → Material Feeding → Roll Forming → Cutting → Collecting
Main Technical Parameters
| Material | Type | PPGI/GI |
| Thickness | 0.3-0.6mm | |
| Width | 1200mm | |
| Roller Stations | 15Stations | |
| Roller & Shaft Material | 45# Steel Quenching and Plating | |
| Diameter of Shaft | Φ70mm | |
| Cutter Material | CR12 | |
| Drive Type | Chain Drive | |
| Speed | 15m/min | |
| Total Power | 5.5+5.5KW | |
| Voltage | 380V 50Hz 3Phases | |
Component & Technical Parameters
This part is used to support Coil.And make the coil in a rotary way.
Bearing capacity: 3TInner diameter: 470-530mm.(adjustable according to demand)

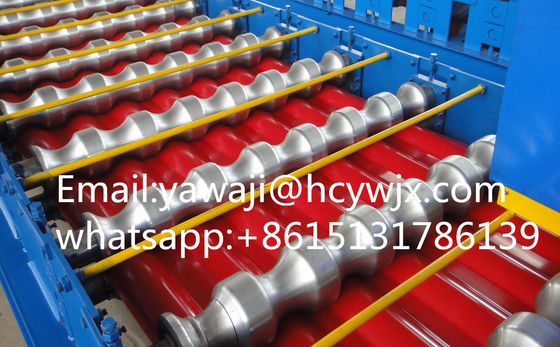

Shaft & Roller
Material is 45# Steel Quenching and Plating.
The processed rollers are smooth, hard and will not rust.
Will not leave any scratches on the sheet when working.

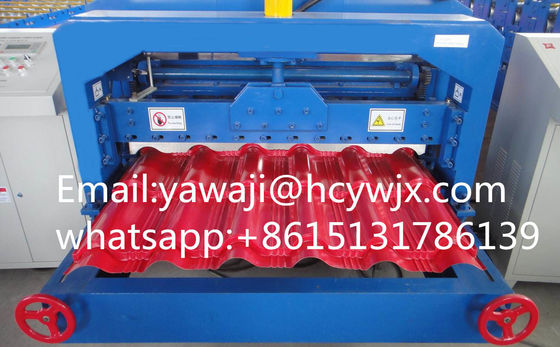

Cutter
The material of blade is CR12.
With high strength, better hardenability and good wear resistance.
Hydraulic Pump Station
The purpose of this pump station is to drive the cutter to start cutting works.
The hydraulic tank use 46# hydraulic oil.
Equipped with a cooling fan which can internal circulation cooling, to ensure the oil pump station will not be affected by high oil temperature during working.
Control Cabinet
The control cabinet has two modes, automatic and manual modes.
The unit length of the targeted sheet and quantity can be set in the touchscreen.
The system is simple and easy to operate.
Why Book With Us?
1.We have 20 years of experience in production and sales of tile presses
2.We know the commonly used tile types in each region and can recommend them to customers
3.We have an excellent design and production team that can design and manufacture according to customer needs.
4.We have our own company and welcome customers at any time
5.We can help you contact the shipping company and we can also deliver to your door if you need.
