Product Details:
|
| Material Type: | PPGI/GI | Material Thickness: | 0.3-0.6mm |
|---|---|---|---|
| Material Material: | 1220mm | Roller Stations: | 19Stations |
| Roller & Shaft Material: | 45# Steel Quenching And Plating | Diameter Of Shaft: | Φ70mm |
| Cutter Material: | CR12 | Drive Type: | Chain Drive |
| Speed: | 15m/min | Total Power: | 5.5+5.5KW |
| Voltage: | 380v 50Hz 3phases | ||
| Highlight: | Glazed Roof Tile Machine,Porcelain Tiles Making Machine,Proper Glazed Roof Tile Machine |
||
Product Description

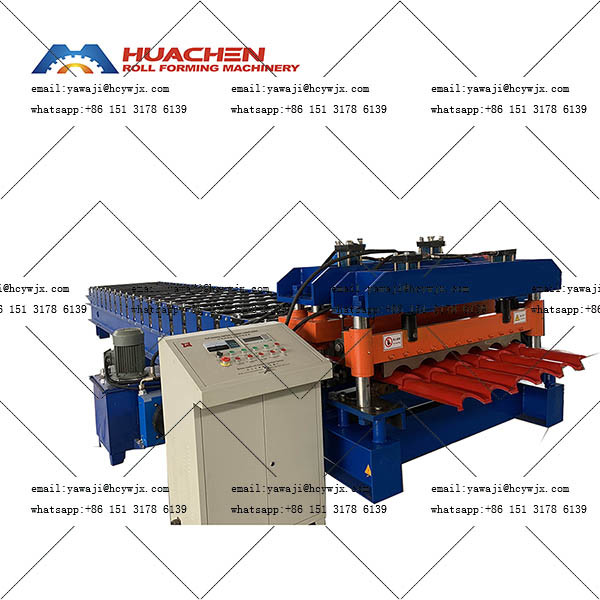

The glazed tile forming machine is driven by a motor and uses a hydraulic system or mechanical transmission device to transport the pre-processed metal sheet (usually a color steel sheet) into the forming mold. The mold is designed according to the shape of the glazed tile and has multiple different forming rollers or stamping parts. Under the action of the mold, the sheet is gradually formed into the shape of the glazed tile through continuous bending, pressing and other processes. For example, the edge of the sheet is first bent into a certain arc, and then the middle is pressed, so that the tile presents the unique wave shape and three-dimensional sense of the glazed tile.
Working Flow
Raw material preparation→Material Feeding→ Roll Forming→Cutting→ Collecting
Main Technical Parameters
| Material | Type | PPGI/GI |
| Thickness | 0.3-0.6mm | |
| Width | 1220mm | |
| Roller Stations | 19Stations | |
| Roller & Shaft Material | 45# Steel Quenching and Plating | |
| Diameter of Shaft | Φ70mm | |
| Cutter Material | CR12 | |
| Drive Type | Chain Drive | |
| Speed | 15m/min | |
| Total Power | 5.5+5.5KW | |
| Voltage | 380V 50Hz 3Phases | |
Component & Technical Parameters
This part is used to support Coil.And make the coil in a rotary way.
Bearing capacity: 3TInner diameter: 470-530mm.(adjustable according to demand)
Shaft & Roller

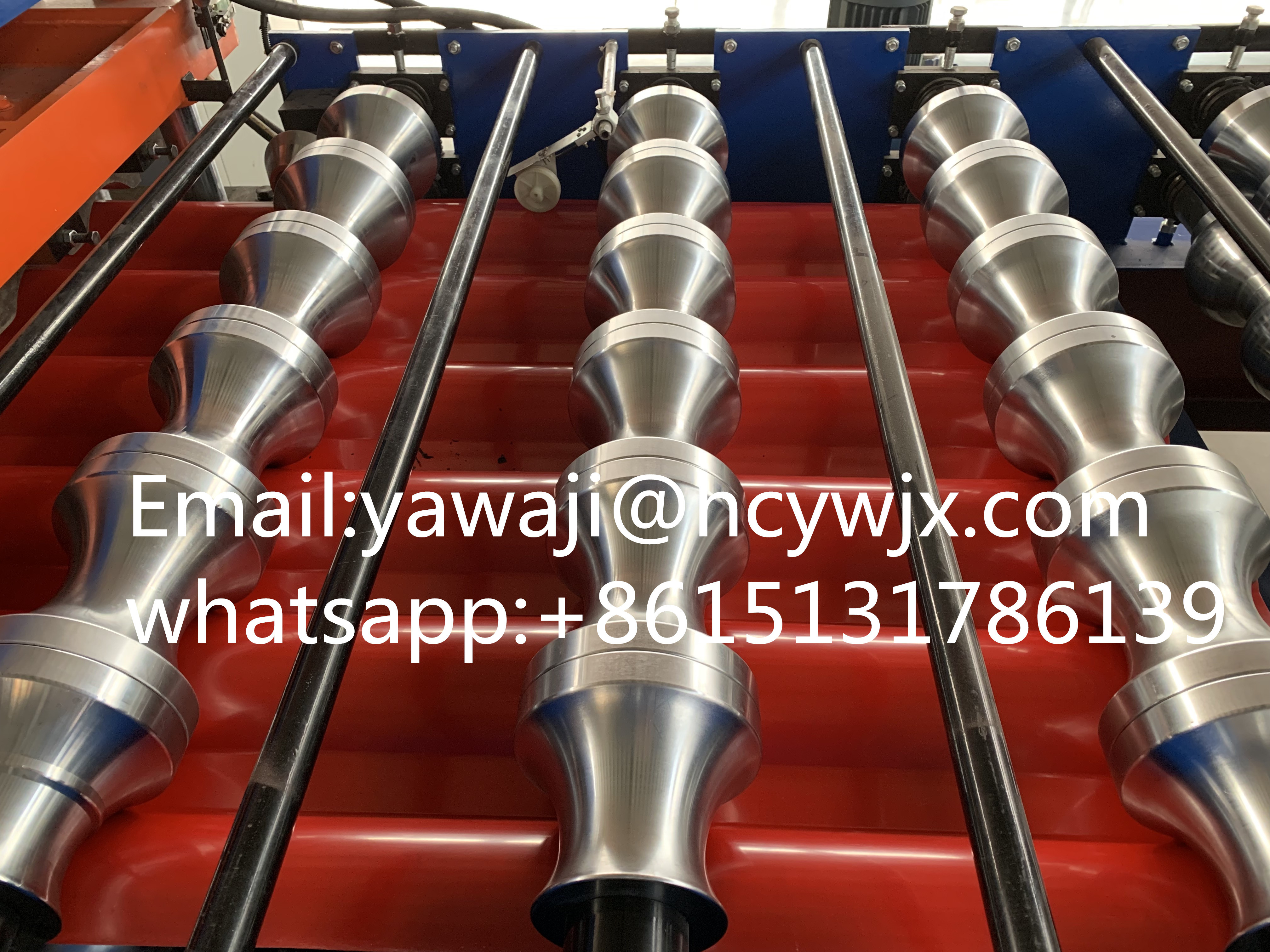

Material is 45# Steel Quenching and Plating.The processed rollers are smooth, hard and will not rust.
Will not leave any scratches on the sheet when working.
Shaft & Roller
Material is 45# Steel Quenching and Plating.The processed rollers are smooth, hard and will not rust.
Will not leave any scratches on the sheet when working.
Hydraulic Pump Station
The purpose of this pump station is to drive the cutter to start cutting works.
The hydraulic tank use 46# hydraulic oil.
Equipped with a cooling fan which can internal circulation cooling, to ensure the oil pump station will not be affected by high oil temperature during working.
Control Cabinet
The control cabinet has two modes, automatic and manual modes.
The unit length of the targeted sheet and quantity can be set in the touchscreen.
The system is simple and easy to operate.

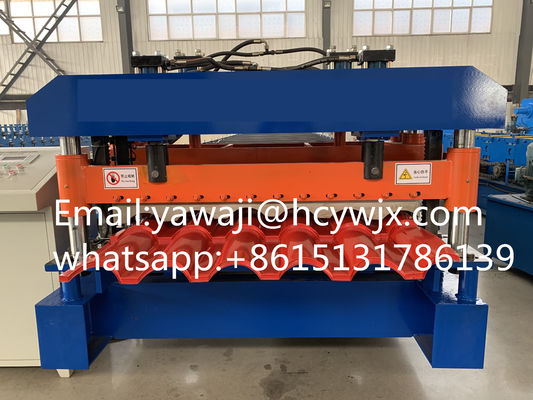

Pressing Section & Cutter
The material of blade is CR12.
With high strength, better hardenability and good wear resistance.
This part is used to collect the formed products.
The bracket is equipped with rollers to facilitate the product forwarding without being scratched.
The glazed tile forming machine is mainly used in the construction industry to produce glazed tiles for roof and wall decoration of various buildings. Whether it is the restoration and reconstruction of traditional Chinese buildings, classical buildings, or the construction of European-style buildings and villas, the glazed tiles produced by the glazed tile forming machine can be used for decoration. At the same time, in some garden landscape buildings, temples and other places, glazed tiles are also widely used to add beauty and cultural atmosphere to the building.
