Product Details:
|
| Operating Mode: | Button + Touch Screen | Material Thickness: | 0.3-0.6mm |
|---|---|---|---|
| Product Type: | Roll Forming Machine | Main Motor Power: | 5.5KW |
| HS Code: | 8462219000 | Hydraulic Station Power: | 5.5KW |
| Roll Forming Speed: | 15-20m/min | Port Of Loading: | Tianjin Port |
| High Light: | High Performance double layer forming machine,TR18/137 double layer forming machine,Metal Roofing Production double layer machine |
||

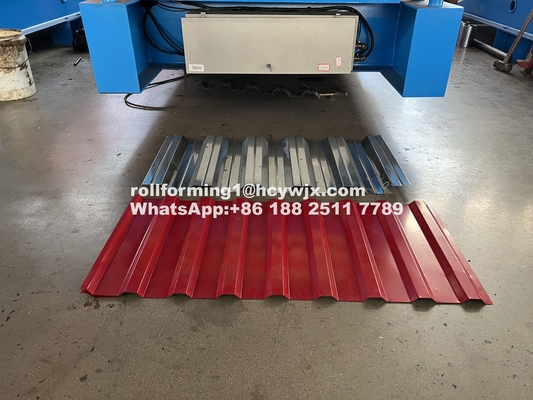

The roll forming process involves shaping metal strips or coils into a desired profile through continuous bending and forming operations that take place along a series of roll stations.

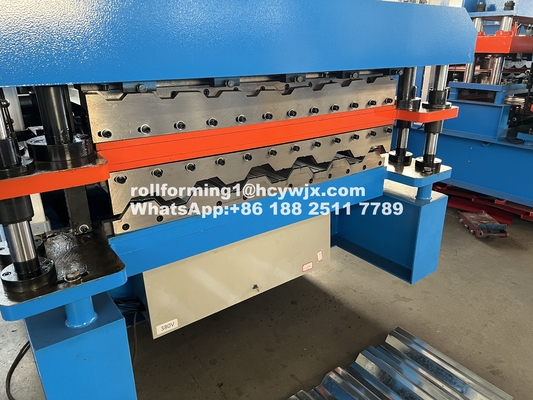

The rolls are the key components of the roll forming machine. They are precision-engineered to create the required profile by gradually bending and shaping the metal. The roll configuration can be customized according to the design requirements of the profile.
To ensure a consistent and accurate supply of material, the machine is equipped with automated coil or sheet feeding mechanisms. The guiding systems, including entry and exit guides, assist in properly aligning and guiding the material through the forming process.

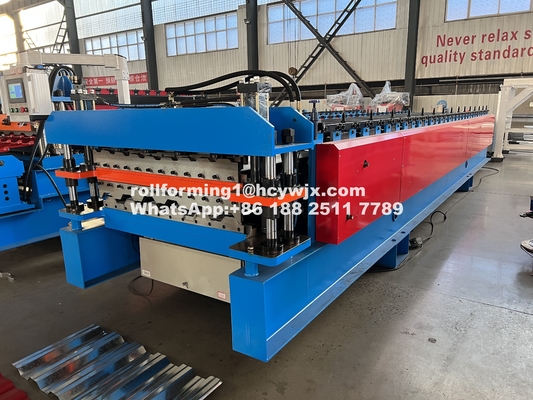

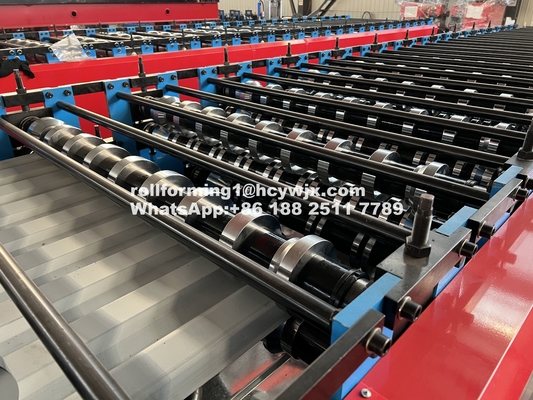

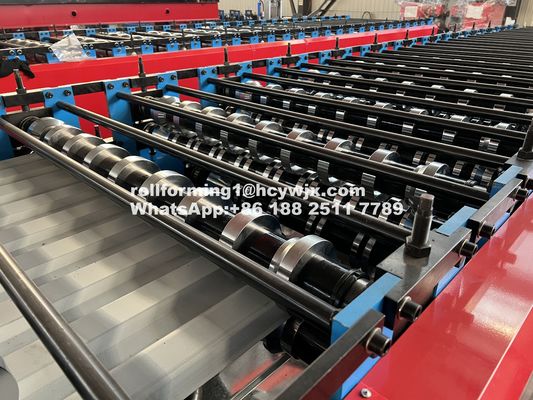

The roll forming machine has multiple forming stations, with each station containing a set of rolls that gradually shapes the metal into the desired profile. The station configuration can be tailored to accommodate complex designs and multi-layer constructions.
Trimming the formed profile to the correct length is accomplished through the integration of cutting devices, such as shears or flying cutters. Other secondary operations, such as punching, perforating, or embossing, can be incorporated into the roll forming process as well.
The roll forming process is controlled by programmable logic controllers (PLCs) and advanced control systems. This allows for precise control over the roll forming parameters, including speed, roll positioning, and profile adjustments. Automated material handling and quality control features can also enhance productivity and product consistency.
| Product Description | Double layer roll forming machine |
| Power Supply | 380V 50Hz 3Phase |
| Hydraulic Station Power | 5.5KW |
| Roll Forming Speed | 15-20m/min |
| Port of Loading | Tianjin Port |
| Main Shaft Diameter | 75mm |
| HS Code | 8462219000 |
| Operating Mode | Button + Touch Screen |
| Main Motor Power | 5.5KW |
| Material Thickness | 0.3-0.6mm |
Q: What is the brand name of this roll forming machine?
A: The brand name of this roll forming machine is HC.
Q: Where is this roll forming machine manufactured?
A: This roll forming machine is manufactured in China.
Q: Does this roll forming machine have any certifications?
A: Yes, this roll forming machine is CE certified.
Q: What is the minimum order quantity for this roll forming machine?
A: The minimum order quantity for this roll forming machine is 1.
Q: What are the packaging details for this roll forming machine?
A: The packaging details for this roll forming machine is a 40GP container.
Q: What is the delivery time for this roll forming machine?
A: The delivery time for this roll forming machine is 20 days.
Q: What are the payment terms for this roll forming machine?
A: The payment terms for this roll forming machine is a 30% deposit by T/T before manufacture, with the balance to be paid before delivery.
Q: What is the supply ability for this roll forming machine?
A: The supply ability for this roll forming machine is 60 sets per month.
