Product Details:
|
| Material Width: | 1500 | Thickness: | 0.6mm |
|---|---|---|---|
| Length: | 80m | Tech\nical Support: | Whole Life |
| Production: | 4m/min | Warranty: | 1 Year |
| High Light: | metal roofing forming machine,tile forming machine |
||

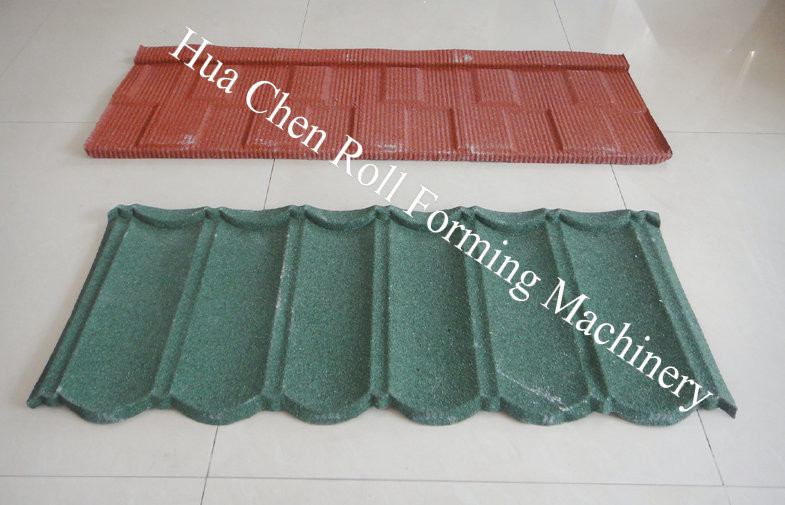

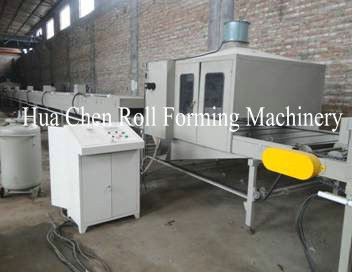

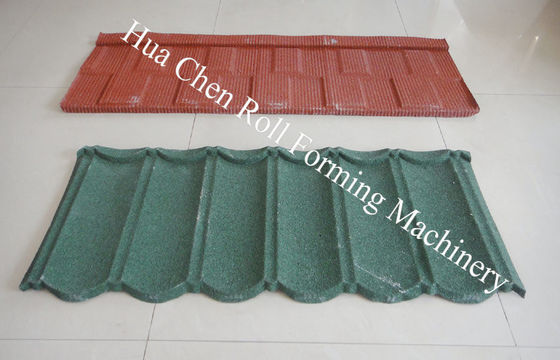

High quanlity colorful stone coated steel roofing tile machine stone coated roof tile production line
Machine technical parameter
1.materialmaterial thickness:0.4-0.6mm galvanized sheet is better
2.work process:feeding-first spraying glue-blasting stone-first drying-second spray glue-second drying-production
3.workers to operate:6 workers can hand with this machine
4.sales area:global
5.advantage no sounds, good looking, high quality
6.productivity 6pieces/min
7.main work unit : spraying unit, blasting unit, drying unit, second spraying unit and second drying unit.
Technical characteristic:
1.Resist to artificial climate aging:100h film no crack,no powder,no bubbles,no obvious discoloration.
2.Heat resistant:90±2°c no obvious change.
3.Low temperature resistant:-40±2°c·24h no obvious change.
4.Waterproof:240h no bubbles,no obvious change.
1. Automatic bottom glue spraying equipment.
outside dimension:4000*1350*850mm.
structure:channel steel,welded.
transmission:2.2kw variable-frquency adjustable-speed motor 0-32 r/min.
conveying device:reciprocating chain conveys.
automatic glue spraying assembly:with motor:0.06kw
adsorption of dust removal equipment:1 set.
air compressor:1 set 0.9m3
automatic pressure glue canister:1 set range of adjustable pressure:0.1-0.6MPa.
automatic glue spraying gun:4 sets.
fill glue gun:5 sets.
glue gun stand: 1 set.

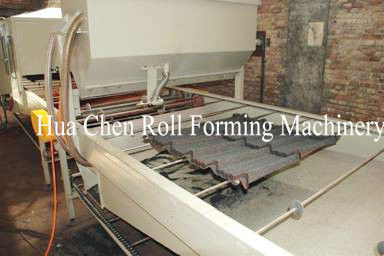

2 automatic sandblasting room
outside dimension:3000*1850*700mm.
structure:channel steel,angle steel,welded.
transmission:with glue spraying equipment compound chain transmit.
convey device:compound chain transmit.
automatic sand hopper:1 set dimension:550*600*500mm.
automatic rising machine:1 set.rising height:1.9m power:300kg/h.
sand-blasting gun:4 sets.

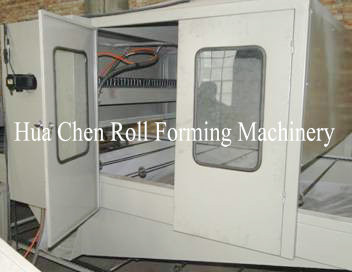

3 first drying room
outside dimension:25000*800*1200mm.
structure:carbon steel welded.
frame type heat presservation wall:fill up with heat preservation material which is bended with 1mm carbon steel.
automatic temperature controller: 2 sets,range od adjustable temperature:0-160º.
infrared fluorescent tube:50 pcs.
conveying device:reciprocating chain conveys.
cooling device:1 set.
4 automatic surface glue spraying equipment
outside dimension:3000*850*700.
structure:carbon steel welded.
automatic glue spraying gun:2 sets.
automatic spraying assembly:1 set range of pressure:0.1-0.6 MPa.
adsorption of dust removal equipment :1 set.
manual spraying gun:5 sets.
5 second drying room equipment
outside dimension:30000*850*700mm.
structure: carbon steel welded.
frame type heat presservation wall:30m. fill up with heat preservation material which is bended with 1mm carbon steel.
conveying device:reciprocating chain conveys.
infrared heat tube:50 pcs.
automatic temperature controller:2 sets range of adjustable temperature:0-160°
conveying device:reciprocating connection conveys 30m.
cooling device:1 set.
automatic printing code and marketing:1 set of automatic printer.
total equipment matches total control station 1 set(control system)
producing :3-6m/min calculate as 1.2m per piece.eight hours,produce 1500 prc every day.
whole machine power:113kw
1.Warranty time:one year,and we will provide the technical support for the whole life.
2.What's more,one year for free,after the warranty period .we will help you repair the machine,you only responsible for the labour and parts,when the machine have some problem.
