Product Details:
|
| Width: | 1250mm | Thickness: | 0.3-0.8mm |
|---|---|---|---|
| Capacity: | 8-10m/min | Power: | 380V |
| Cut: | Hydraulic | Warranty: | 1 Year |
| High Light: | sheet metal cutting machine,automatic pipe cutting machine |
||

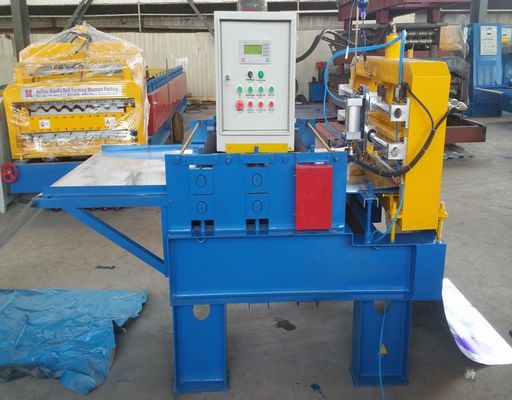

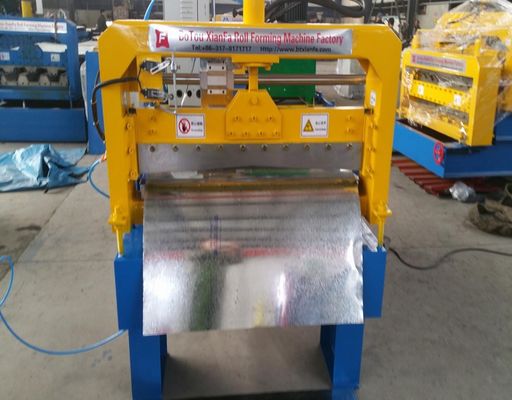

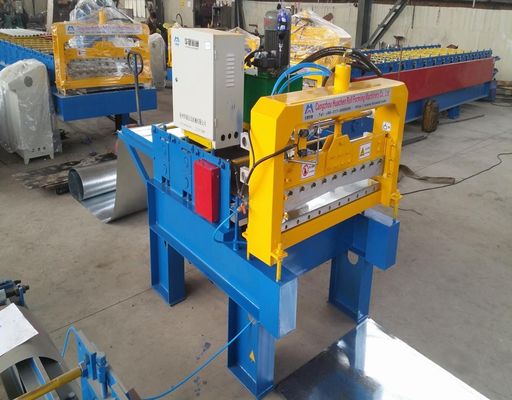

Color Steel Sheet Flatting-Cutting Machine
Quick Detail:
1. Suitable to process: Color steel plate
2. Width of the plate: 1000-1250mm
3. Rollers: 3 rows
4. Dimensions: 3.5*1.55*1.51m
5. Power: 4+4kw
6. Rolling material: 45# steel(plated chrome on surface)
7. Thickness of the plate:0.3-0.7mm
8. Voltage: 380V 50Hz 3phases
9. Hydraulic: 40#
10. Processing precision: Within 1.00mm
11. Control system: PLC control
Description:
Flatting-Cutting Machine Main parameter
|
No. |
Main parameter of Flatting-Cutting Machine |
|
|
1 |
Suitable to process |
Color steel plate |
|
2 |
Width of the plate |
1000-1250mm |
|
3 |
Rollers |
3 rows |
|
4 |
Dimensions |
3.5*1.55*1.51m |
|
5 |
Power |
4+4kw |
|
6 |
Thickness of the plate |
0.3-0.7mm |
|
7 |
Productivity |
25m/min |
|
8 |
Voltage |
380V 50Hz 3phases |
|
9 |
Hydraulic |
40# |
|
10 |
Processing precision |
Within 1.00mm |
|
11 |
Control system |
PLC control |
Equipment components: Man-made uncoiler-leveling-roll forming machine-computer control system-hydraulic control system-cutting
Application
use for cut the sheet to strips, also use for other accessories.
steel metal sheet bending folding machine packaging:
1). Tighten to container with steel wire rope and welded machine with container by angel iron .
2). Main forming machine and un-coiler is naked(If you need we can also packed with water-proof plastic).
3). PLC contral system and motor pump are packed in wooden box with water proof paper coverage.
Competitive Advantage
1.ISO certification
2. CE certification
3. PLC Panasonic
4. One year free warranty
5. Low loss, easy operate
