Product Details:
|
| Brand: | HC | Life Time: | 10 Years |
|---|---|---|---|
| Power: | 22KW | Thickness: | 1.5mm |
| Warranty: | Whole Life | Usage: | Floor Deck |
| Highlight: | wall panel roll forming machine,rolling forming machine |
||

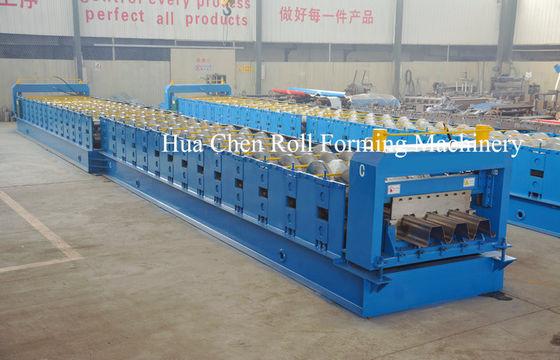

Floor Deck Roll Forming Machine

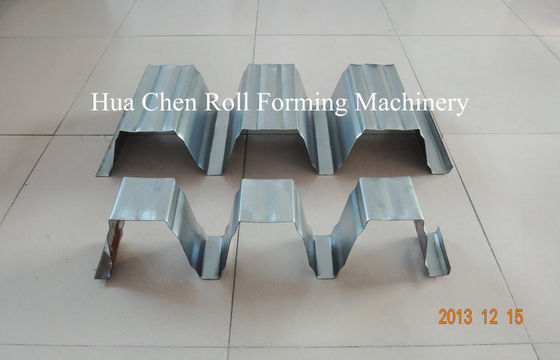

Steel floor deck sheet is rolled by steel floor decking roll forming machine,the finished product are of many features,such as simple shape,large wave height,high intensity and good adhesiveness when pouring the concrete together with the welded steel wire net on-site,in the high story building,it not only can save steel mould board,but also reduce the bearing of the floor: on basis of equal capacity,it reduces the steel amount of engineering useage,so that it saves cost of investment.

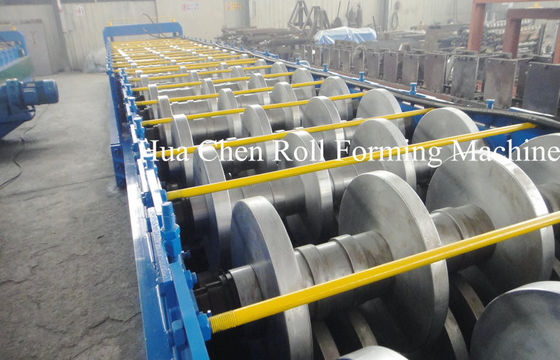

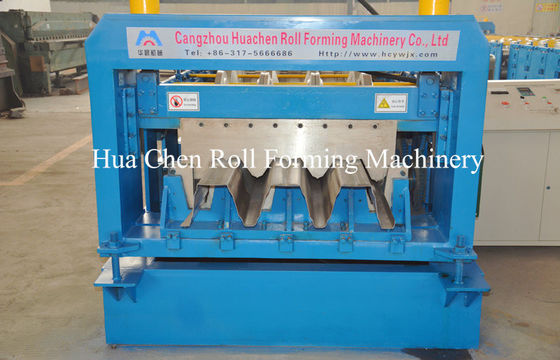

The steel floor deck roll foming machine consists of uncoiler and its base,infeed guides,fixed position driven forming stations,shearing device,hydraulic station,PLC control console and so on. Our company has dozens of profile models for this series roll forming machine. We can design different kinds of profile and fitting for steel deck machine,as per customers' requirements.
Description:
Floor Deck Roll Forming Machine Main parameter
|
No. |
Main parameter of Floor Deck Roll Forming Machine |
|
|
1 |
Suitable to process |
Color steel plate |
|
2 |
Width of the plate |
1500mm |
|
3 |
Rollers |
28 rows |
|
4 |
Dimensions |
12.7*1.85*1.61m |
|
5 |
Power |
33+11.5kw |
|
6 |
Rolling material |
shaft bearing steel(quenching) |
|
6 |
Thickness of the plate |
1.5mm |
|
7 |
Productivity |
15m/min |
|
8 |
Diameter of the roller |
Φ100mm |
|
9 |
Voltage |
380V 50Hz 3phases |
|
10 |
Material of the cutting plate |
Cr12 |
|
11 |
Hydraulic |
40# |
|
12 |
Processing precision |
Within 1.00mm |
|
13 |
Control system |
PLC control |
Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system- cutting
|
NO. |
Item |
Unit |
Qty |
|
1 |
Manual decoiler |
set |
1 |
|
2 |
Main roll forming machine |
set |
1 |
|
3 |
PLC control box |
set |
1 |
|
4 |
Supporter table |
set |
1 |
Application
This type of sheet can be widely used in plant, house, storage and simple steel roof. It has advantage of pretty appearance, durable using and so on.
Competitive Advantage
1. CE certification
2. hydraulic motor drive
3. Exported to more than 70 countries
4. suitable for various kinds of steel plate
5. voltage according to customer request
