Product Details:
|
| Material: | Painted Steel | Thickness: | 0.3-0.6mm |
|---|---|---|---|
| Capacity: | 8-10m/min | Roller: | No.45 Steel |
| Blade: | Cr12 | Warranty: | 1 Year |
| High Light: | steel roll forming machine,roll forming machinery |
||

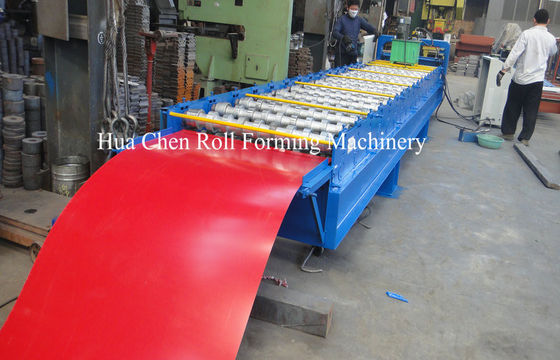

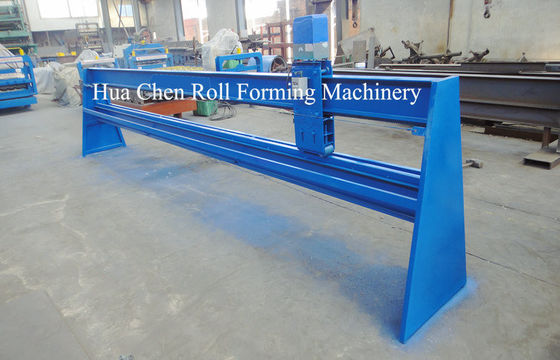

Shutter Door Forming Machine
Quick Detail:
1. Suitable to process: Color steel plate
2. Width of the plate: 1000mm
3. Rollers: 18rows
4. Dimensions: 8.6*1.45*1.51m
5. Power: 3+3kw
6. Rolling material: 45# steel(plated chrome on surface)
7. Thickness of the plate:0.3-0.6mm
8. Voltage: 380V 50Hz 3phases
9. Material of the cutting plate: Cr12
10. Hydraulic: 40#
11. Processing precision: Within 1.00mm
12. Control system: PLC control
The chart of process flow
Decoiling—active feeding (put the coil strip into the first feeding roller)—leveling —roll forming —
computer control system—hydraulic cutting—product to stand
Equipment technical parameters
| Molding host | Model | SB-roll forming machine |
| Forming size | 5000mm×800mm×1000mm | |
| weight | 3T | |
| Host big frame structure | Frame welded | |
| Roll station | 14rows | |
| Axial material | 45# steel | |
| Out diameter of shaft | Φ70mm | |
| Roller materials | 45# steel hard chromium plating | |
| Drive | By chain | |
| Sprocket chain | 1 inch | |
| Main power: | 4kw | |
| Working speed | 8-10 m/min | |
| Material thickness | 0.3-0.8mm | |
| Made board | 16mm |

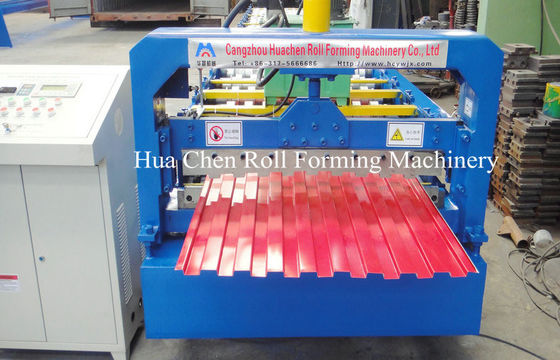

Hydraulic shearing
| Material of blade | Cr12,heat treatment 60-62°C |
| Shearing system |
It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank, the pumps drive the cutter machine to begin the cutting job. The system includes a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes. And two sets of electromagnetism valves. Power of the oil pump: 3kw Hydraulic oil :40# |

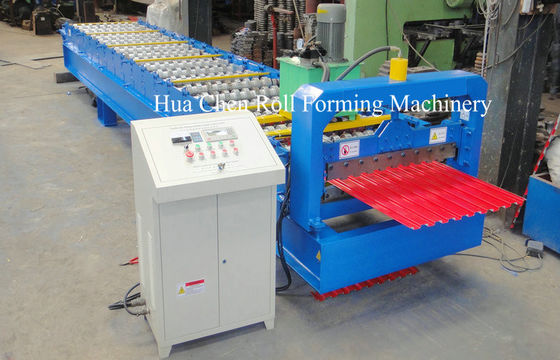

Electrical system
| Main computer control cabinet |
It adopts industrial computer to control. The target piece’s length is adjustable and digit of it can be adjusted. Computer mode has two modes: automatic and manual one. The system is easy to operate and use. Processing precision : within 1.00mm It contains liquid crystal screen, programmer, transformer for the electronic machines and kits of every part. Transducer brand is EURA. The seller will provide Chinese and English language screen. |

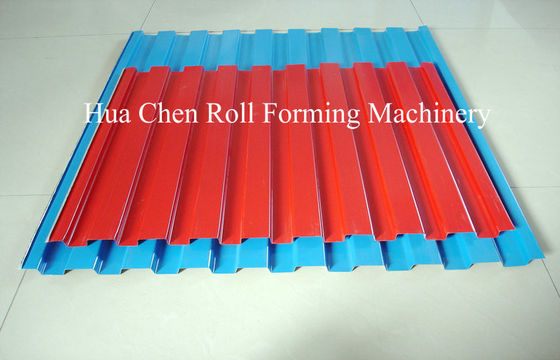

Application
This type of sheet can be widely used as the door of garage, storage and supermarket.
1. Warranty :One year,and we will provide technical support for whole life of the equipment.
2. Delivery time: Within 30 days after deposit receipt your payment
3. Guarantee period: 18months free service/ pay service all the machine life
4. Installation and training If buyers visit our factory and check the machine, we will teach you how to install and use the machine and also train your workers/technician face to face.Without visiting,we will send you user manual and video to teach you to install and operate.If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.
