Steel Plate Make Ridge Cap tile Machine Ridge Cap Cold Roll forming Machine

Large Image : Steel Plate Make Ridge Cap tile Machine Ridge Cap Cold Roll forming Machine

Product Details:

Place of Origin:	Botou Hebei China
Brand Name:	HC
Certification:	CE
Model Number:	HC415

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Packaging Details:	Main machine is nude, the computer control box is packed by carton box.
Delivery Time:	30days
Payment Terms:	L/C,T/T
Supply Ability:	20 sets/month

Contact Now

Steel Plate Make Ridge Cap tile Machine Ridge Cap Cold Roll forming Machine

Description

Usage:	Ridge Cap	Type:	Cold Roll Forming
Thickness:	0.3-0.6mm	Speed:	4m/min
Length:	8.1M
Highlight:	metal forming machines , cold roll forming equipment

Steel Plate Make Ridge Cap tile Machine Ridge Cap Cold Roll forming Machine

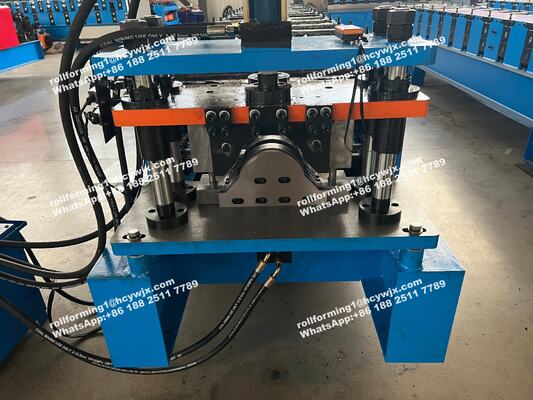

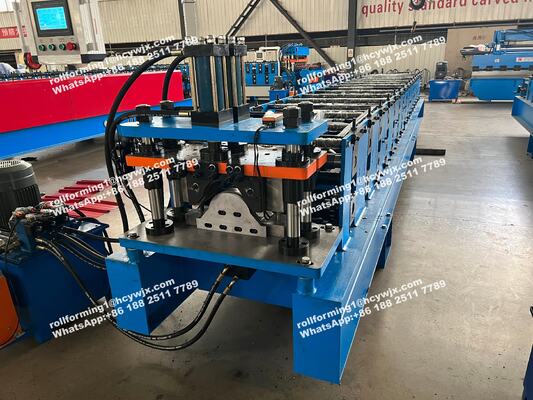

Composition of machine:

1. 3T manual decoiler
2. Feeding →roll forming→pressing→t post cutting
3. Output table
4. Control desk
5. Hydraulic station
6. Spare part list

Profile, layout & production flow:

Profile thickness between 0.3mm and 0.6mm
Effective width: base on profile 415mm
This machine adopt post-cutting.
Length tolerance: ±1.5mm per each pieces

Layout of machine

Working direction base on customer request:

The production flow of equipment:

Decoiler→ feeding→roll forming→pressing→post cutting →output table

Description:

Ridge Cap Roll Forming Machine Main parameter

No.	Main parameter of Ridge Cap Roll Forming Machine
1	Suitable to process	Color steel plate
2	Width of the plate	415mm
3	Rollers	15rows
4	Dimensions	810011501510mm
5	Power	4+5.5kw
6	Rolling material	45# steel(plated chrome on surface)
6	Thickness of the plate	0.3-0.6mm
7	Productivity	4m/min
8	Diameter of the roller	Φ70mm
9	Voltage	380V 50Hz 3phases
10	Material of the cutting plate	Cr12
11	Hydraulic	46#
12	Processing precision	Within 1.00mm
13	Control system	PLC control

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-press form-cutting

Pre-sales service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-sales service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

Application

This product is widely used in many kinds of industrial factory, civilian buildings, and Roof board for attached part product. It has advantage of pretty appearance, durable using and so on.

Competitive Advantage

1. sample customized

2. short production cycle

3. quality guarantee

4. high-effect, low consume

5. provide lifelong technical support
